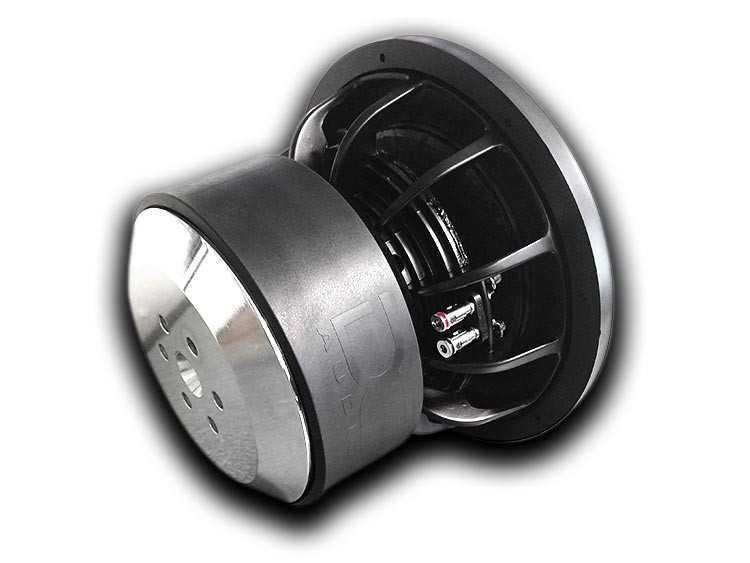

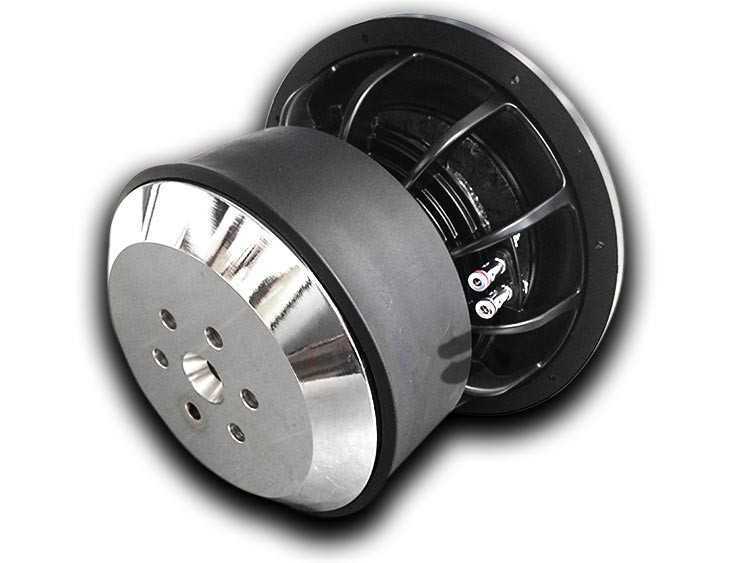

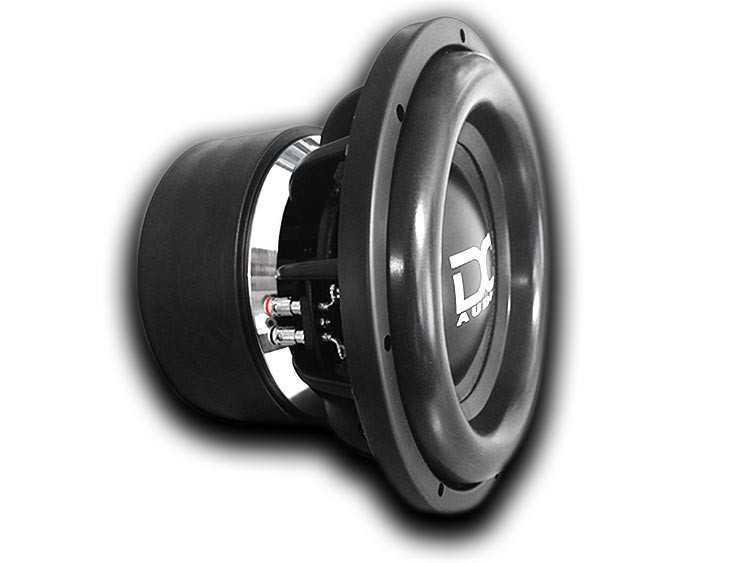

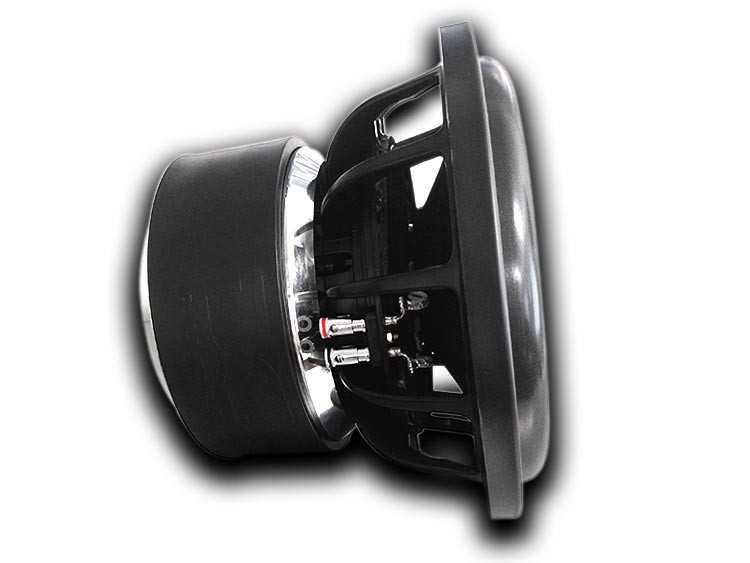

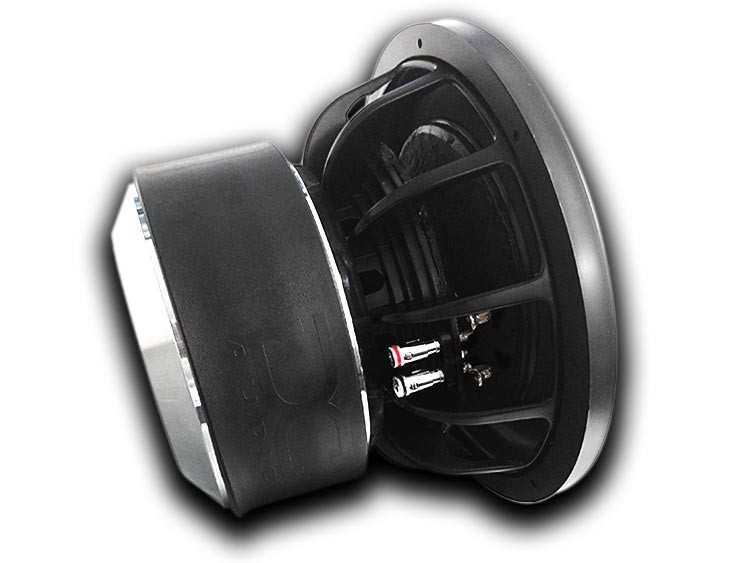

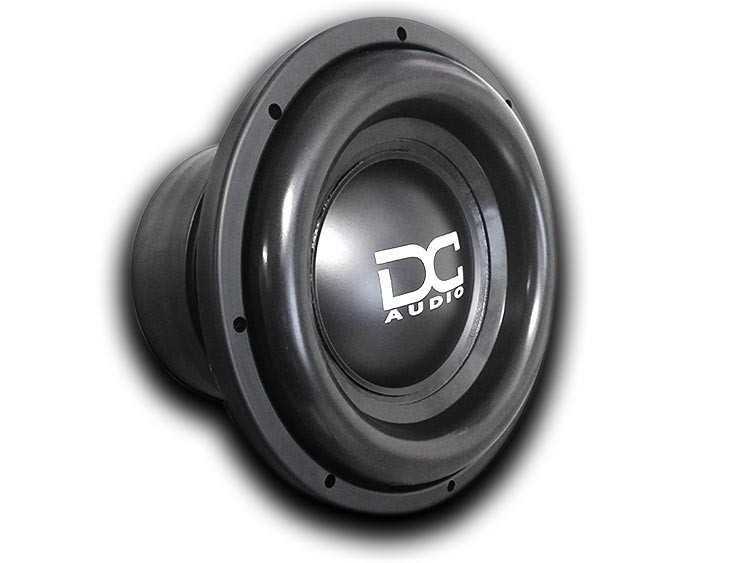

DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer
DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer
DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer
DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer
DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer
DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer

DC AUDIO XL SPL 15 M4 SPL 2200w Subwoofer

DC AudioCustom Built: Estimated lead time of 5-15 Business days.
SKU: DC AUDIO XL 15 M4 SPL
Categories : (Brand) DC Audio
In Stock
$825.00 $969.99
Save $144.99

The XLM4-SPL is the next generation of our most award-winning driver. The XLM4-SPL has an added pole vent, redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8-layer flat wound voice coil, upgraded cone and surround. We are always looking to make great even better and the XLm4 is again a step in that direction. Anyone looking for a subwoofer that not only sounds great but is a beast in the SPL lanes, look no further, you have found what you have been searching for.

Key Features

  • Extremely rigid non-pressed paper cone assembly
  • Multilayered polymer foam surround
  • Polypropylene dust cover with DC logo
  • Triple 8"OD Stiff semi cup progressive roll spiders
  • Dual Extra heavy duty interweaved tinsel lead wire
  • Cast aluminum black frame
  • FEA analyzed and optimized motor assembly – Fully CNC machined
  • Rubber mounting gasket
  • Rubber Motor Boot
  • Chrome spring loaded push terminals
  • 8 Layer Flat Wound Hi-temp Aluminum Voice Coil

10" 12" 15" 18"
Mounting Depth 8.25" 9" 10.25" 11.25"
Mounting Hole Diameter 9.35" 11" 14" 16.75"
Outside Driver Diameter 11" 12.5" 15.7" 18.5"
VC Diameter 3.0" 3.0" 3.0" 3.0"
Displacement .18 ft .19 ft .23 ft .26ft
Power Handling rms/peak 2200/4400 2200/4400 2200/4400 2200/4400
Ohm Options (dual) .7/1/1.4/2/4 .7/1/1.4/2/4 .7/1/1.4/2/4 .7/1/1.4/2/4
Sd 324 cm 494 cm 791 cm 1159 cm
Vas 12.42 L 25.77 L 66.02 L 144.36 L
Cms 0.085 Mm/n 0.08 Mm/n 0.07 Mm/n 0.07 Mm/n
Mms 171.77 g 213.7 g 306.7 g 346.07 g
Fs 41.7Hz 38.5 Hz 34.3 Hz 32.3 Hz
Bl 22.73 N/A 22.73 N/A 22.73 N/A 22.73 N/A
Re 3.98 Ohm 3.98 Ohm 3.98 Ohm 3.98 Ohm
Le 5.2 mH 5.2 mH 3.5 mH 3.5 mH
Qms 11.24
 12.92
 8.18 8.32
Qes 0.35
 0.403
 0.706 0.718
Qts
 0.34 0.391
 0.65 0.661
Xmax 26mm 26mm 26mm 26mm
Ref SPL @1 watt 85.9 db 87.5 db 87.3 db 90.4 db
Suggest Sealed Box .75 ft 1.0 ft 2.0 ft 3.5 ft
Suggested Ported Box 1.0 ft 1.50 ft 3.0 ft 5.5 ft
