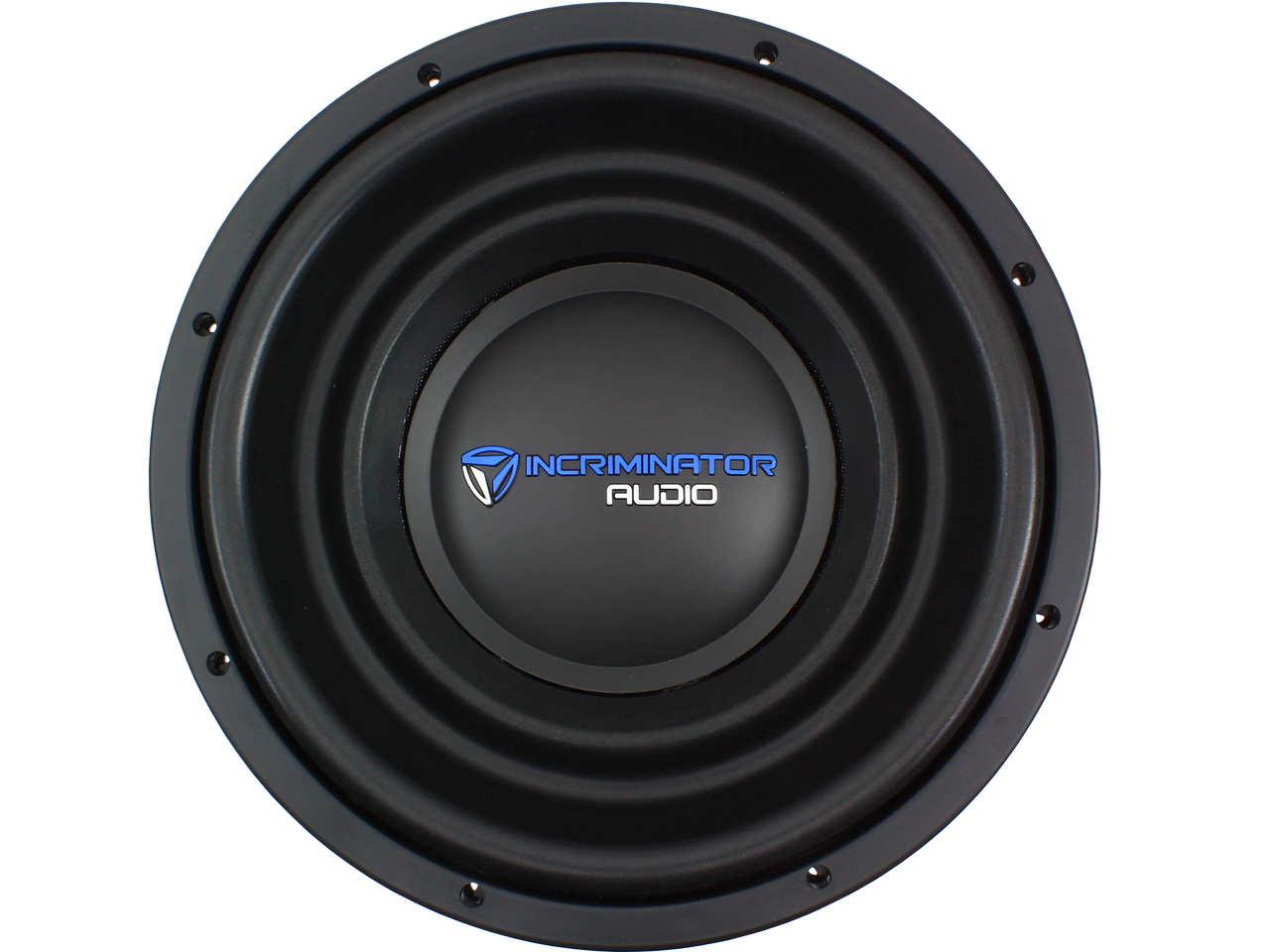

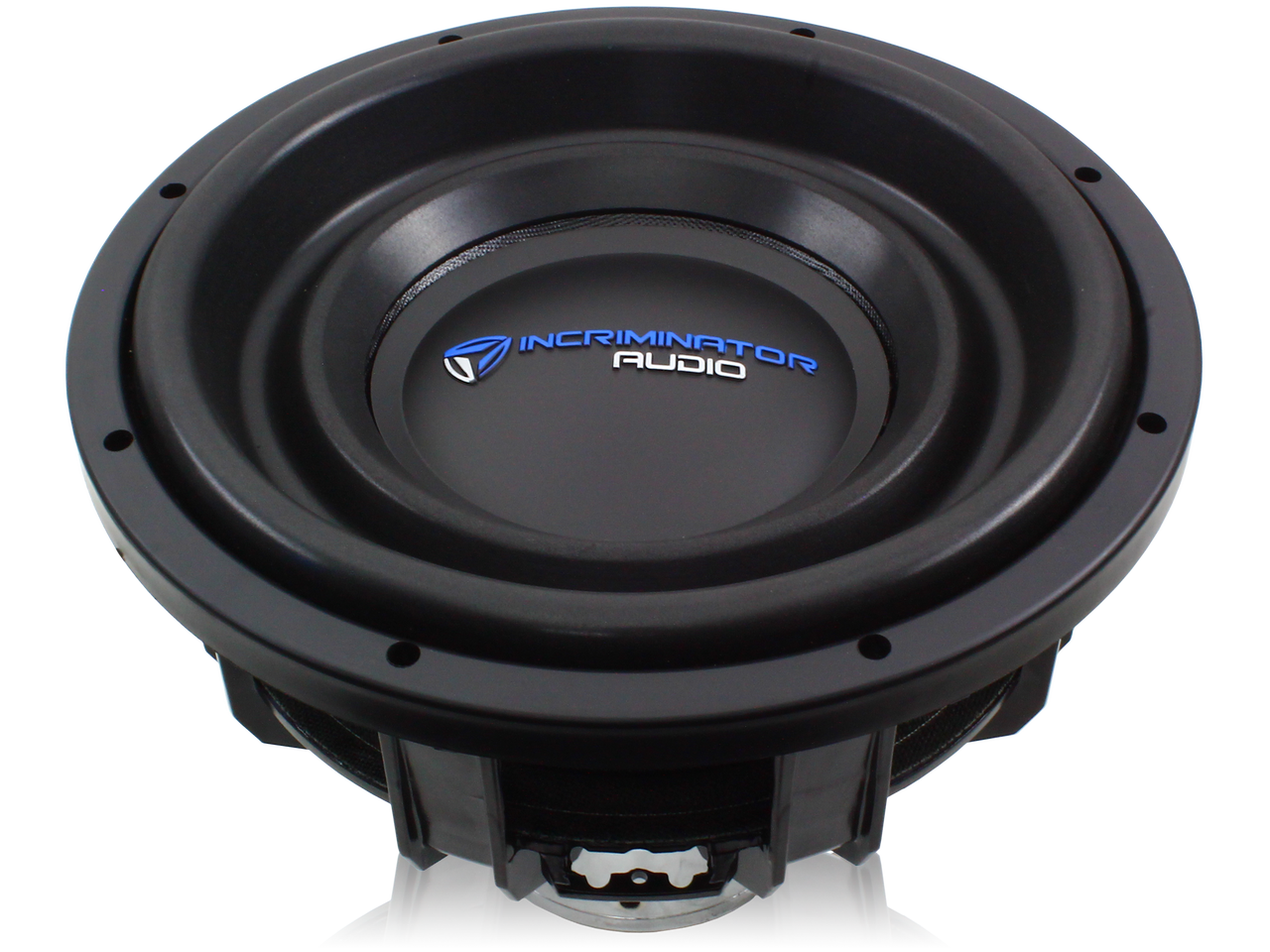

Flatlyne 12" 600W Subwoofer by Incriminator Audio® $439.00

Flatlyne 12" 600W Subwoofer by Incriminator Audio®

Incriminator AudioCustom Built: Estimated lead time of 10-20 Business days.

SKU: Flatlyne 12 Incriminator Audio 12" 600W Flatlyne Series

In Stock

$439.00

A brand that wins countless SPL competitions over the years, can’t build a premier sound quality sub. Or can they? The Incriminator Audio Flatlyne is proving people wrong while making a serious name for Incriminator Audio in the Sound Quality world of car audio. A great way to do that is to pick up Sound Quality champions using the IA Flatlyne in MECA and IASCA. The first generation of the IA Flatlyne established itself in the hard-core sound quality crowd. Now, with the second generation Flatlyne, Incriminator improves on the already very successful under-hung motor design by upgrading to a light weight, Neo magnet motor for improved motor force, that now employees a full sleeve copper shorting ring. What this means is reduced driver displacement for smaller enclosure requirements as well as better cooling and lower inductance for serious precision.

The Flatlyne uses an 8-layer 3” copper coil with dual black progressive spiders and woven leads. As well as a dual layer foam surround, an outstanding injected pulp matrix fiber reinforced cone and an interlocking spider spacer assembly in addition to the Air Driven Cooling (ADC), the Flatlyne shows it can take some power and stand up to daily abuse while still sounding amazing. The Flatlyne has Incriminators new 8 spoke basket, and is available in Dual 2 ohm coils and Dual 4 ohm coils, in 12”, 15” and 18” sizes. Conservatively rated at 600 RMS, you don’t need massive power to get awesome results. This model is called the Flatlyne because of such incredibly smooth response across the range and that it is deadly accurate no matter what music you throw at it. For bass so clean it will make your heart stop, the new for 2017 Incriminator Audio Flatlyne is the choice of champions.

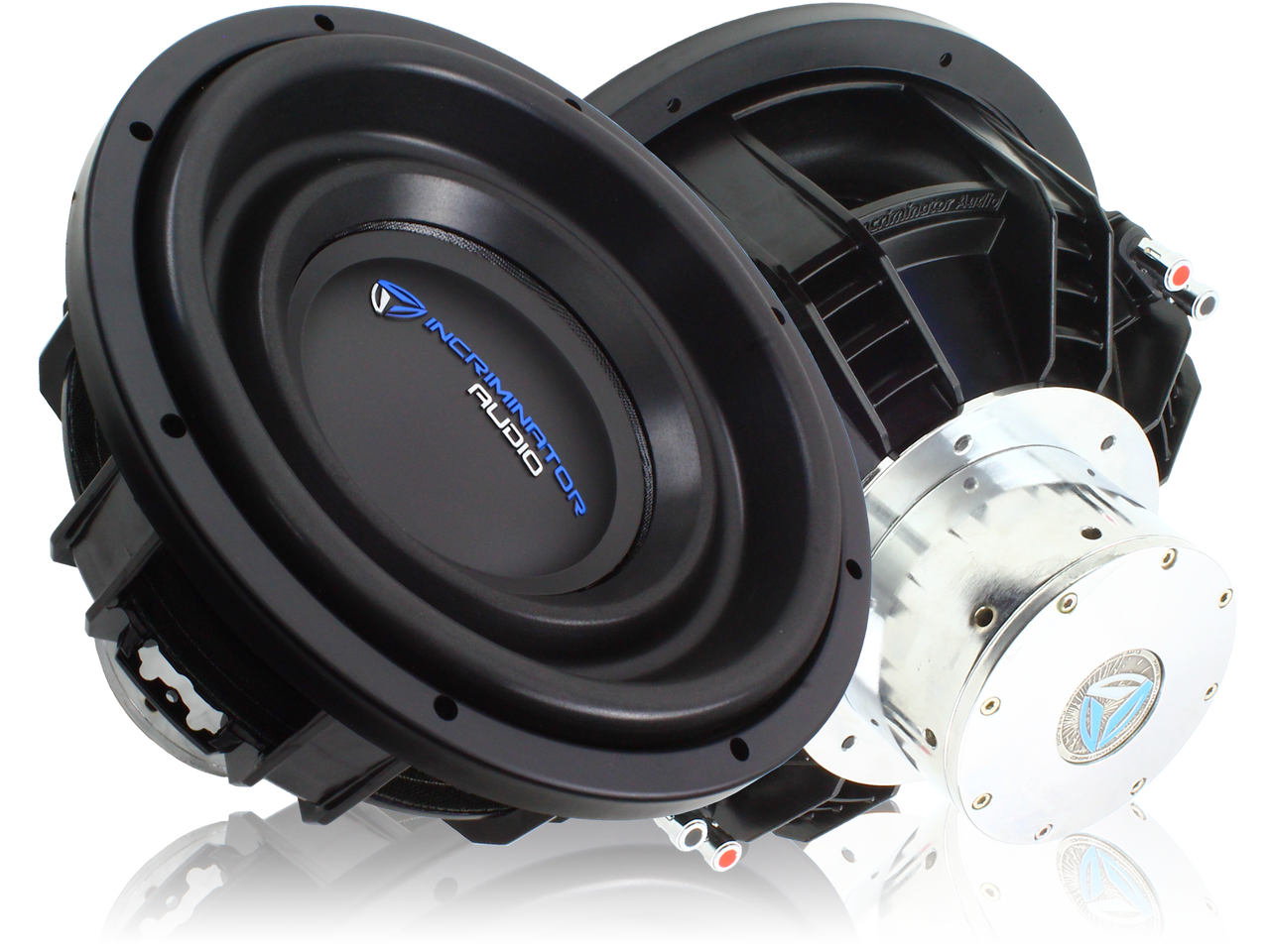

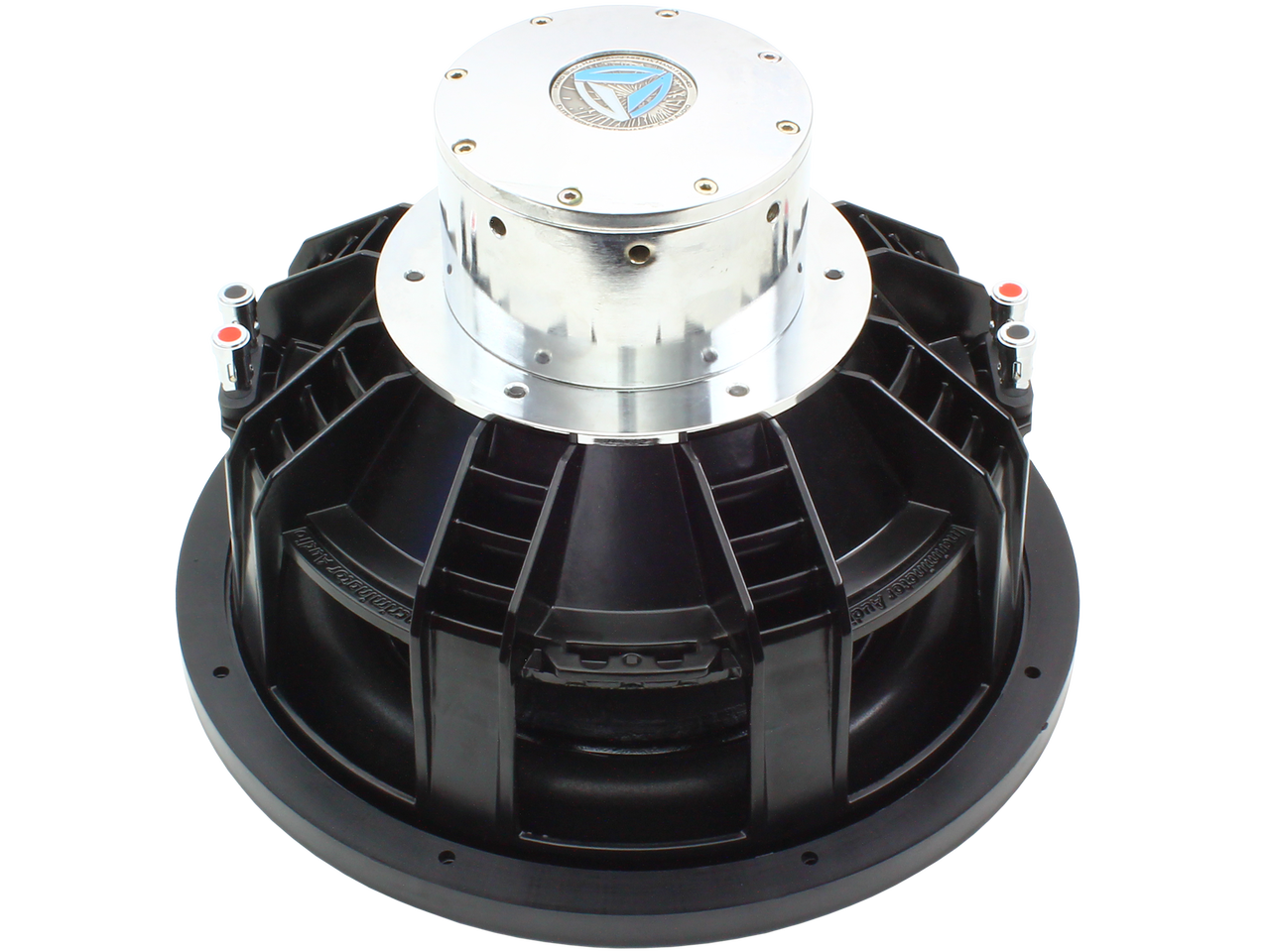

***Upgraded Shredder Package shown.***

Available in Dual 2 and Dual 4 standard as well a 12", 15", and 18" models.
Options Include:

SH - Shredder Platform Upgrade - 12" Only
XS – Extra Spider
SQ - IB Applications
DC – Direct Connect
DU – Composite Dustcap - Black, Silver, Red, or Blue

Features

Upgraded Shredder Package shown - 12" Only
8 Spoke Black Cast Basket
3" 8 Layer Round Copper Voice Coil
Dual Black Progressive Spiders with Woven Tinsel Leads
Injected Pulp Matrix Fiber Reinforced Cone
Multi-Layer Foam Surround
4.58" 30 Oz Neo Magnet with an Underhung Topology
160 Oz / 10 Pound Motor Structure and Black Nickel Finish
Interlocking Aluminum Spider Spacer Assembly
CILD² - Center Interlocking Dustcap
ADC - Air Driven Cooling
Nickel Plated Push Terminals
Wrap Around Rubber Gasket
600 Watt RMS Rated
DVC 2 ohm or 4 ohm

Specifications

Driver	12 Inch	15 Inch	18 Inch
FS	28 Hz	26 Hz	24 Hz
Re	8Ω Series	8Ω Series	8Ω Series
Qms	3.88	4.58	5.56
Qes	.55	.65	.76
Qts	.43	.51	.61
Mms	224 g	296 g	330 g
Cms	0.14 mm/N	0.14 mm/N	0.14 mm/N
Sd	480 cm²	810 cm²	1210 cm²
Vas	36.9 L	118 L	188 L
Spl	83.7 dB	85.8 dB	87.7 dB
BL	14.6	14.6	14.6
X-max	18 mm	18 mm	18 mm
Sub Diameter	12.37"	15.50"	18.50"
Mounting	11.12"	14.12"	16.87"
Depth	6.60"	7.35"	8.72"
Displacement	.13 Cu. Ft.	.15 Cu. Ft.	.18 Cu. Ft.
Power	600 RMS	600 RMS	600 RMS
