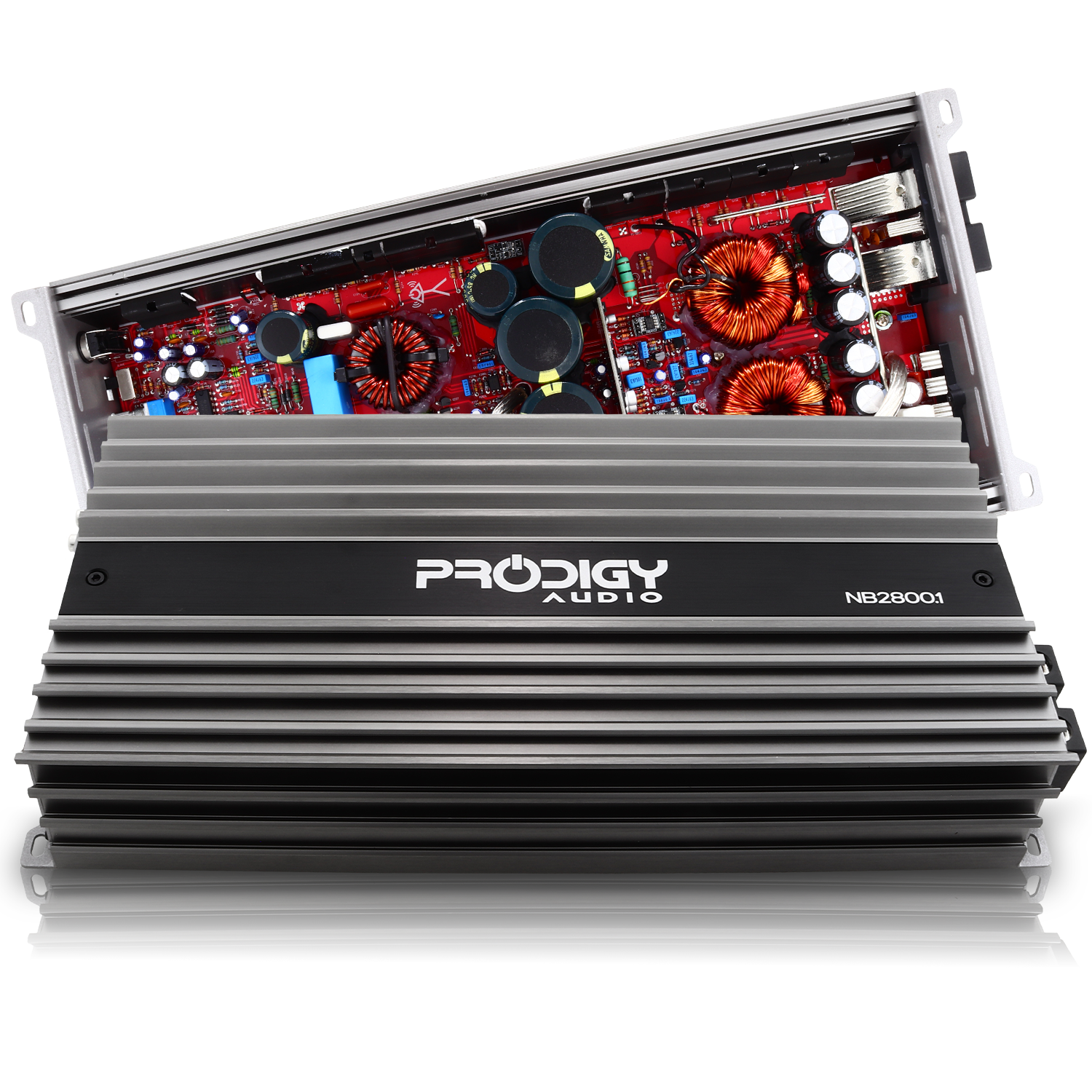

NB2800.1 2800 Watt Mono Block by Prodigy Audio™

Take your power to the next level with this South Korean built Mono block amplifier. The NB2800.1 is a
compact powerhouse that is ready to power the subwoofers of your choice. Currently the most powerful
amplifier that we carry, it is ready to perform with its robust design and construction.

Technical Highlights

• Powerful 2800W RMS power at 1-OHM

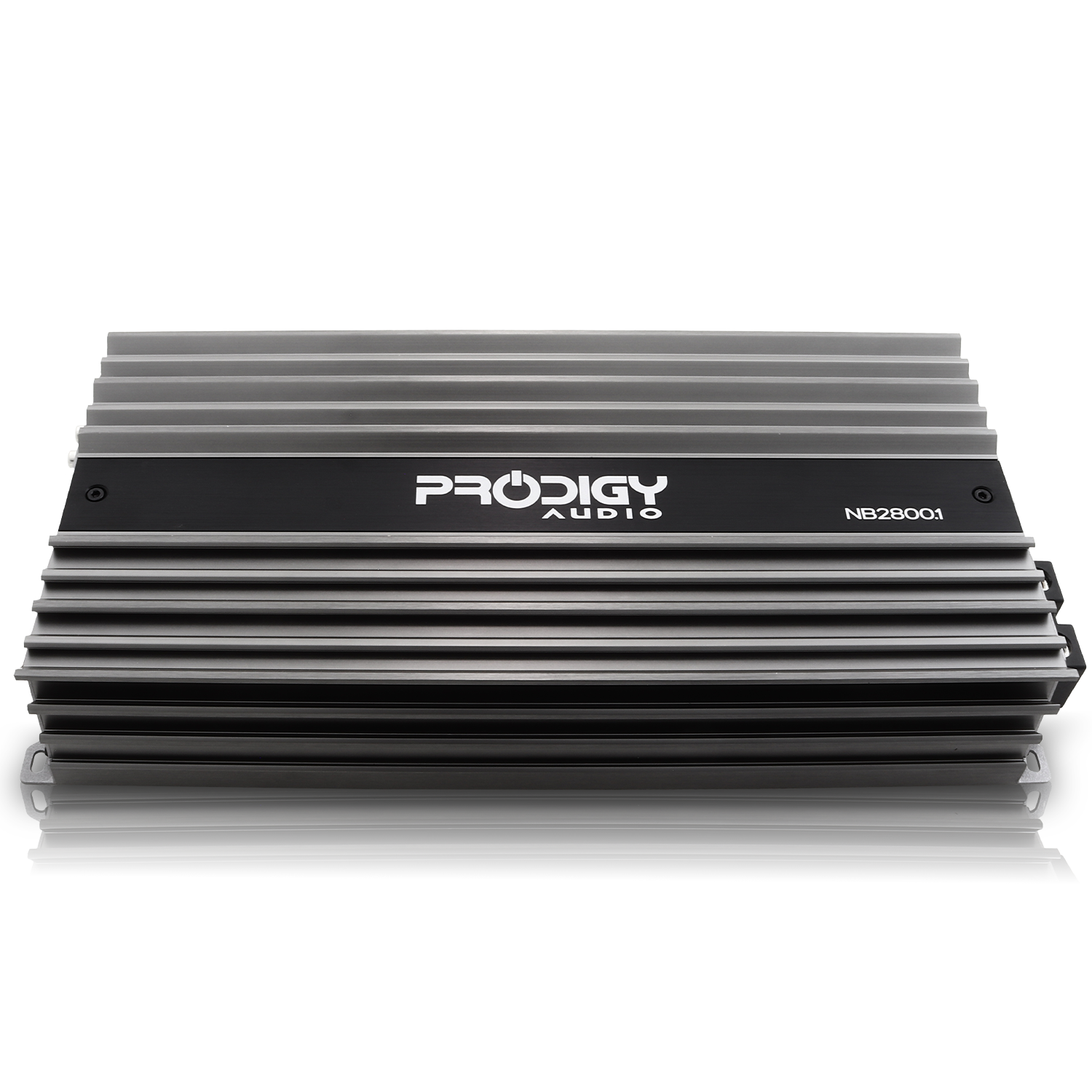

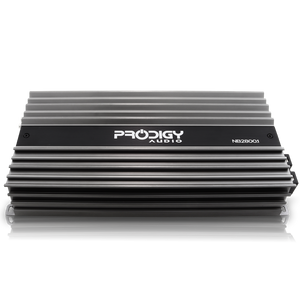

• Timeless design of heatsink. Features tall fins and high mass aluminum for enhanced cooling
• Enhanced Cooling: Upgraded thermal management featuring quiet high-speed cooling fans.

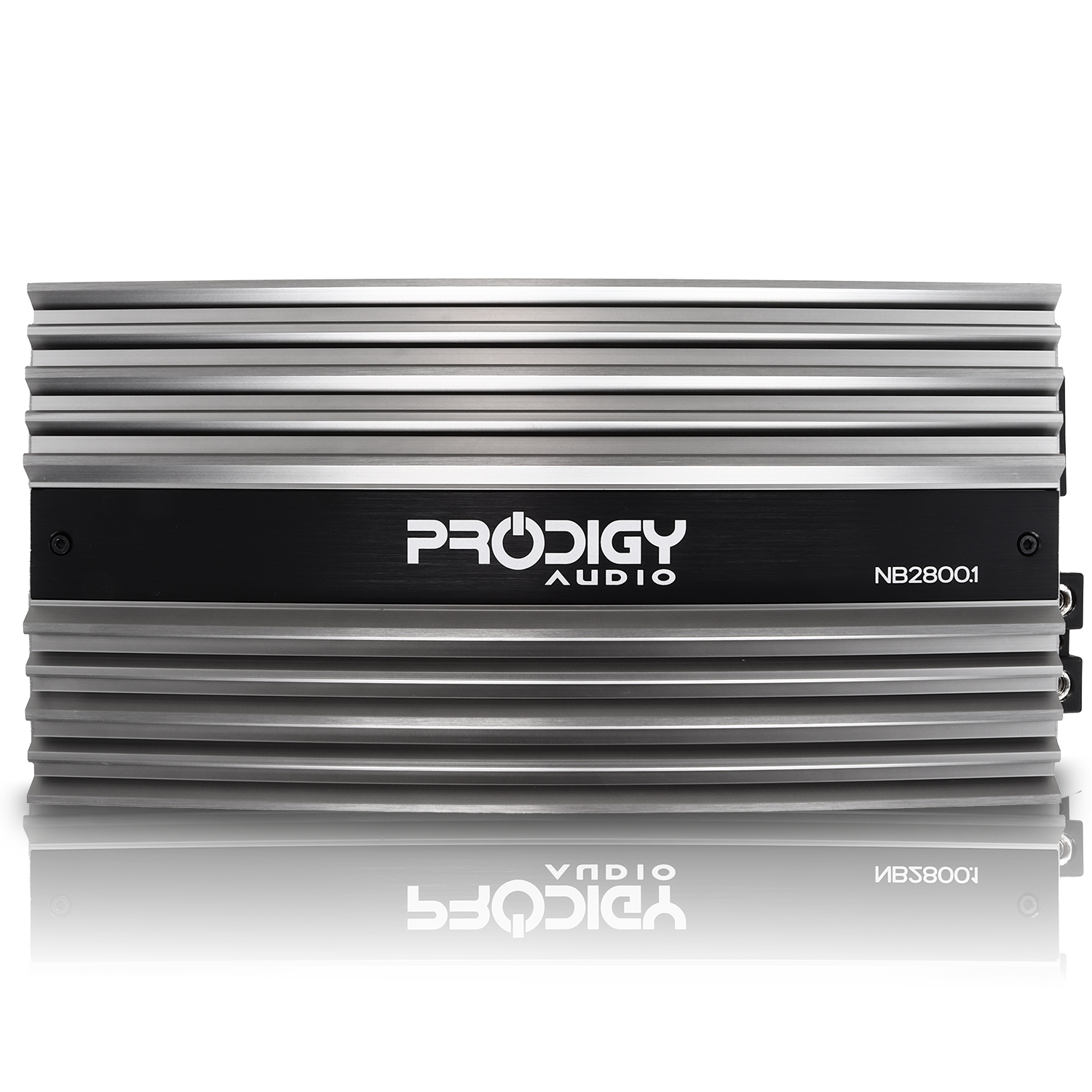

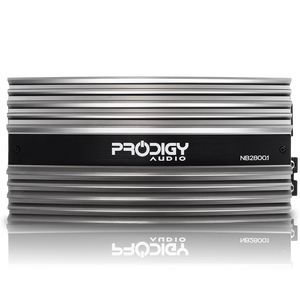

• Reversable badging for different mounting orientations
• Designed for powerful small footprint

RMS Power:

• 4 ohm: 800W x 1 @ 14.4V
• 2 ohm: 1800W x 1 @ 14.4V
• 1 ohm: 2800W x 1 @ 14.4V
• 2 ohm Linked: 5600W x 1

Operating Range: 9 to 15.5 Volts

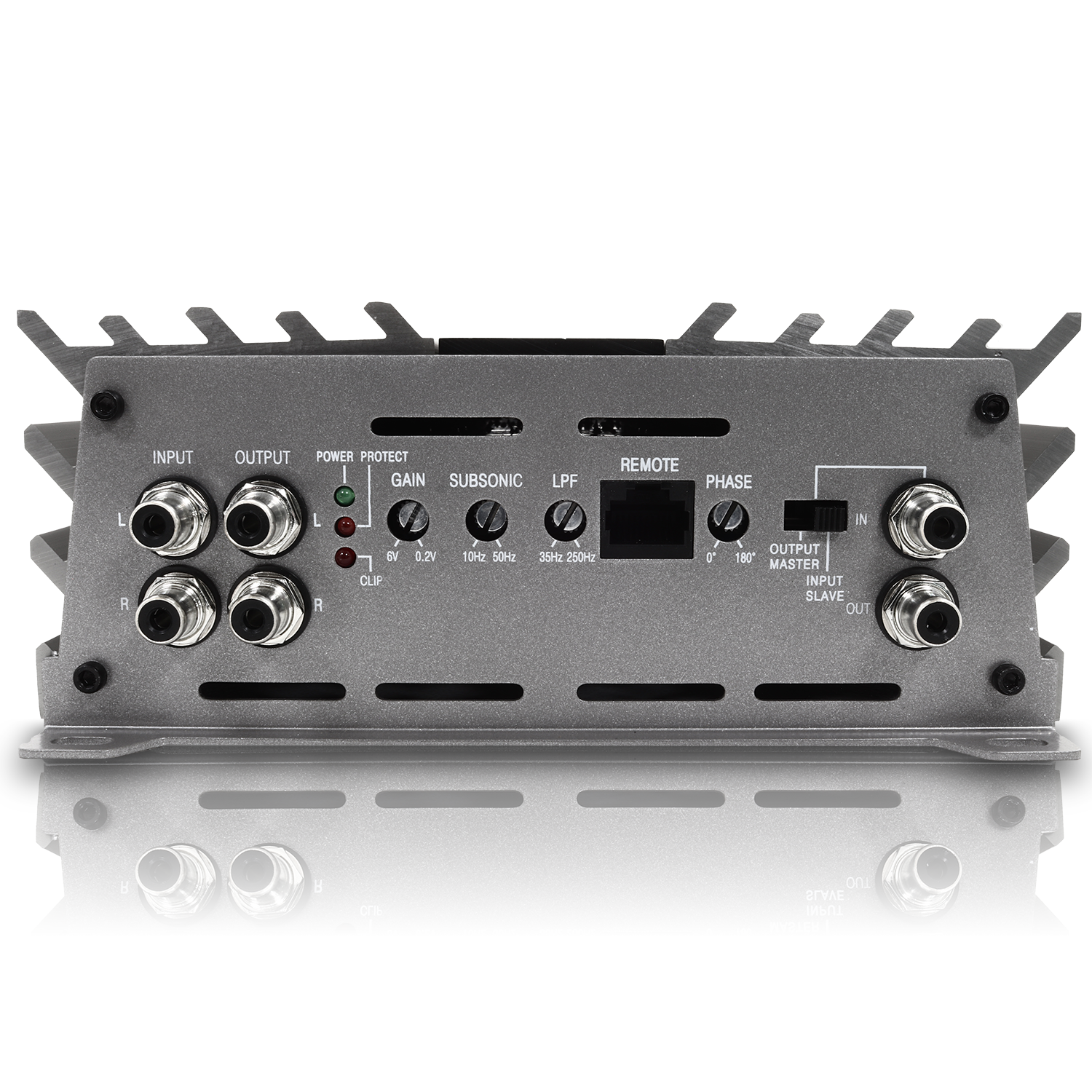

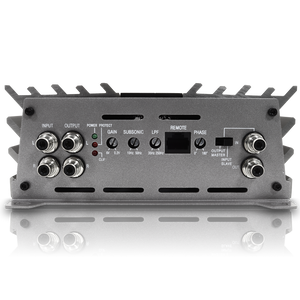

Tuning and Sound:

• Low Pass: 35Hz - 250Hz
• Frequency Response: 10Hz - 270Hz
• Subsonic: 10Hz - 50Hz
• Bass Boost: 0-9 dB
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: >97dB
• T.H.D @ 4 ohm: <0.1%

Fuse Rating:

• Single unit: 300A
• Strapped: 600A

Dimensions: 13.38" L x 7.40" W x 2.24"

(340mm x 188mm x 57.15)

Additional Features:

• Strappable Digital Monoblock Amplifier
• Bass knob features clipping, temperature and voltage monitoring
• 4-Way Protection Circuits: Thermal, High &amp; Low Voltage, Speaker Short, and DC
• Warranty: 1-year warranty
