**Package Deal**I 2 Sets of Evil Mid's and Tweeters w/ DM100.4 Amplifier

Package DealI 2 Sets of Evil Mid's and Tweeters w/ DM100.4 Amplifier

Sound Solutions AudioIn Stock. Typically ships within 1 Business Day.

SKU: DM10042COMP-4O

In Stock

$739.92 $969.93

Save $230.01

Looking for a 4 Channel Amp with component 2 sets of our Midbass's and Tweeters? Look no further! Everything you'll need at one low price. Please select the impedance you'd like at the time of purchase.

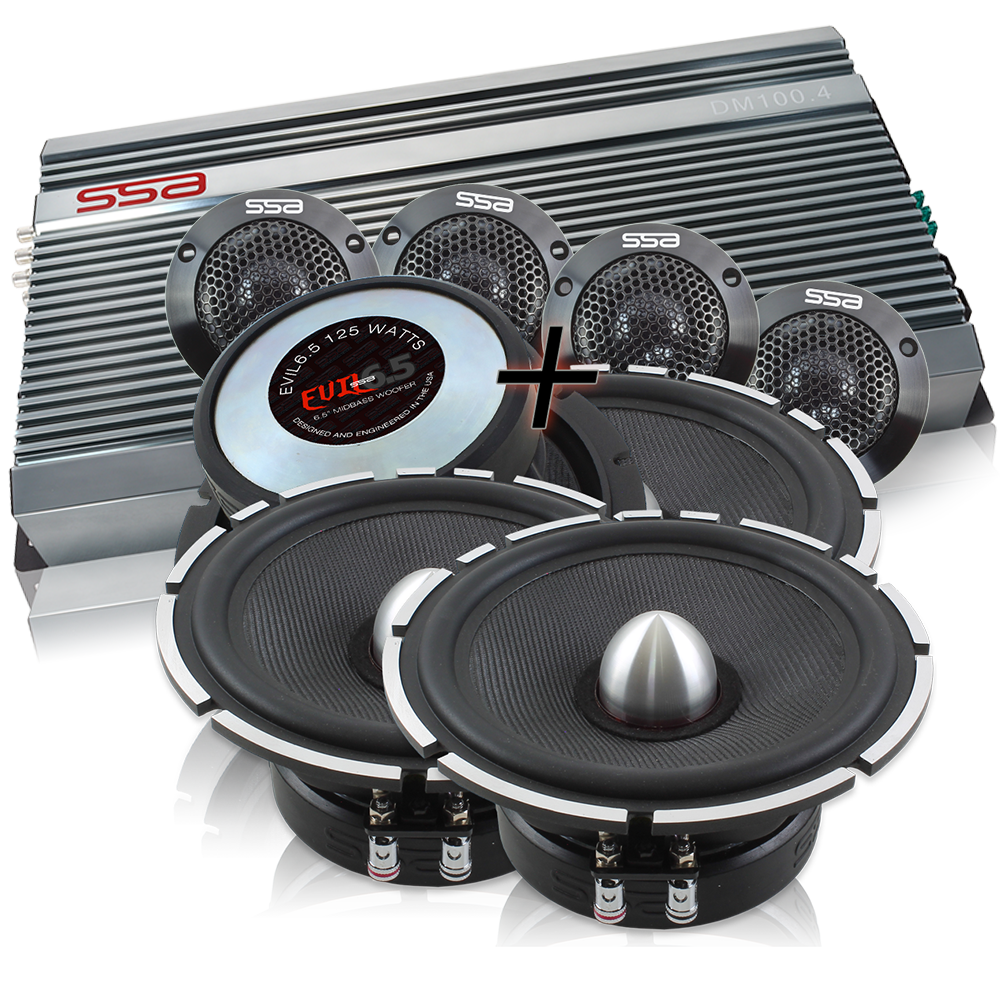

What you'll get:

1 x SSA DM100.4

2 x SSA EVIL 1.25" Neo Tweeters (4 Ohm or 8 Ohm)

4 x SSA EVIL MidBass (4 Ohm or 8 Ohm)

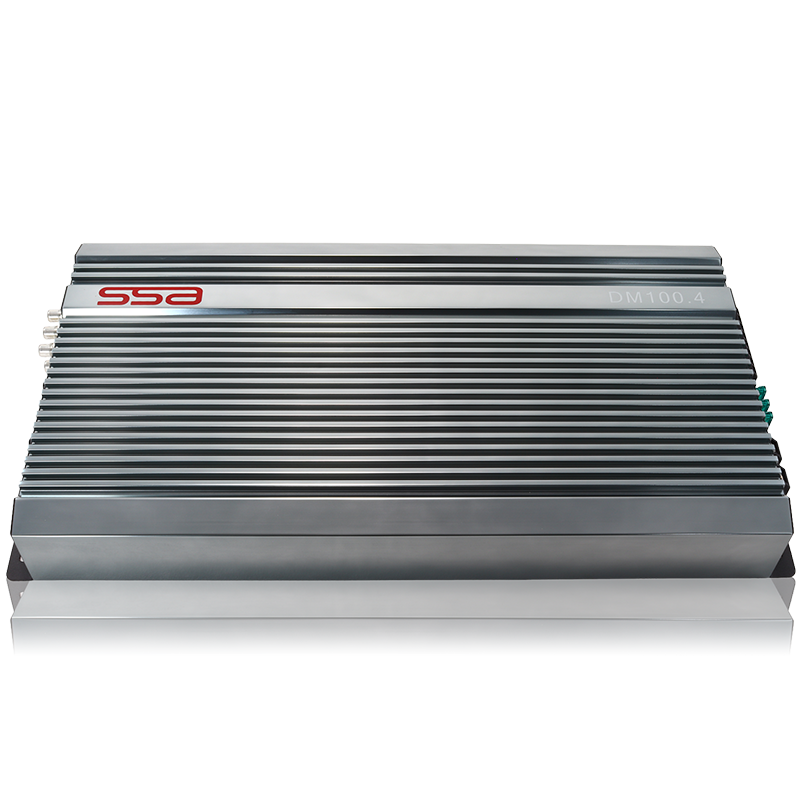

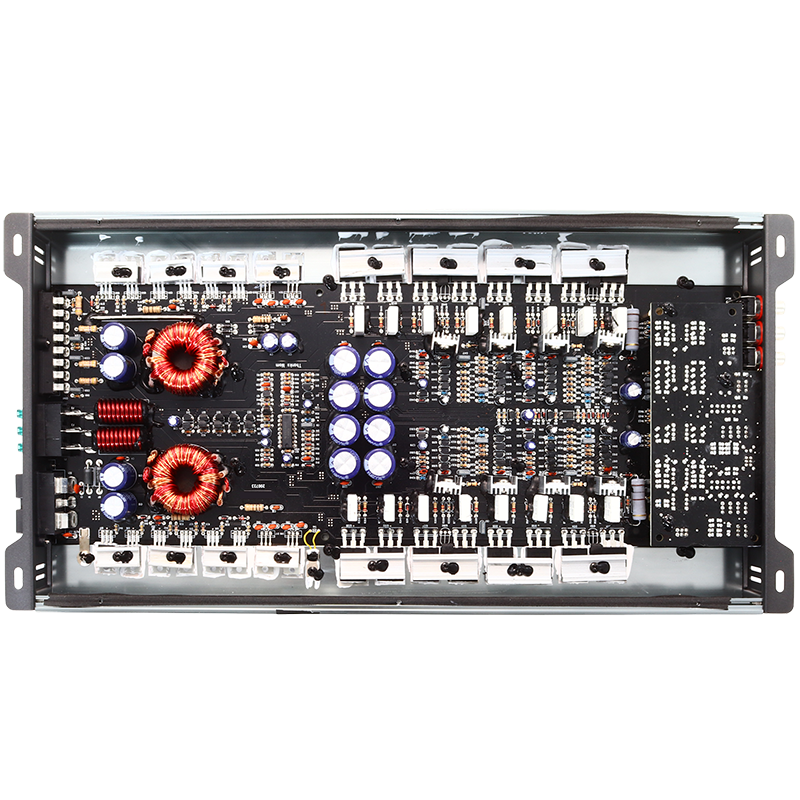

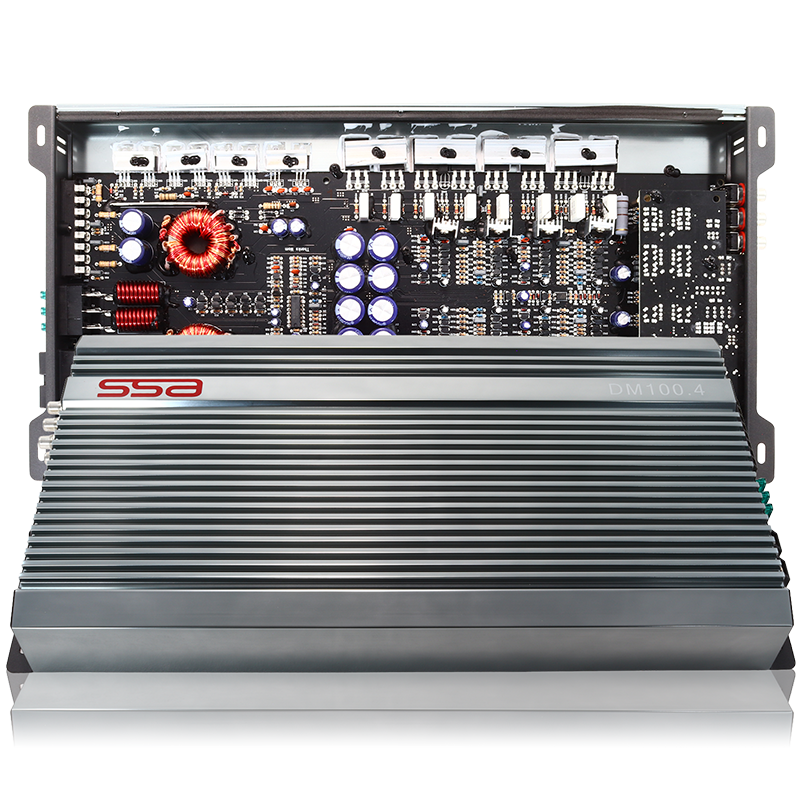

SSA DM100.4 Amplifier

Introducing the all new SSA DM100.4 amplifier. An old school approach, with updated components, for the most discerning of ears. If your front stage is lacking warmth and clarity, its time to upgrade. Our first 4 channel amplifier in our high-end, sound quality, Class- A/B - Demon amplifier line. The SSA DM100.4 is the elite choice for that high end active front stage, premium passive components, and especially a sound quality sub (SSA Demon in a 3-way set up). Stellar looks to match the design and components. Don't let your speakers or your ears down, #levelup to the all new SSA DM100.4 amplifier.

100 Watts RMS X 4 @ 4 Ohm
350 Watts RMS X 2 @ 4 Ohm

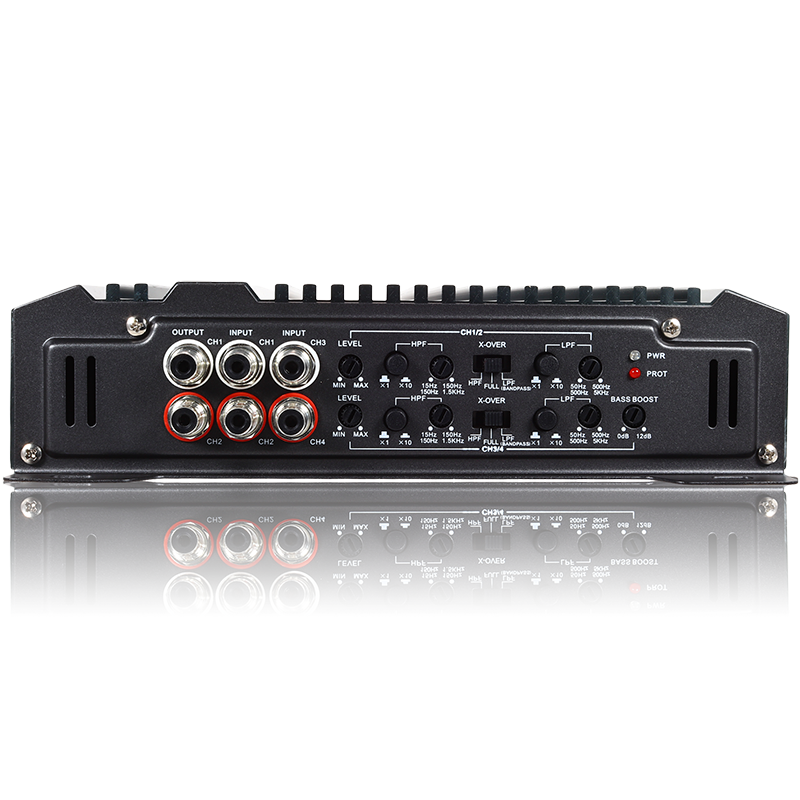

Fully active capable crossover network
Bass Boost Feature for Channels 3/4 when being used for a subwoofer in 3-way set up

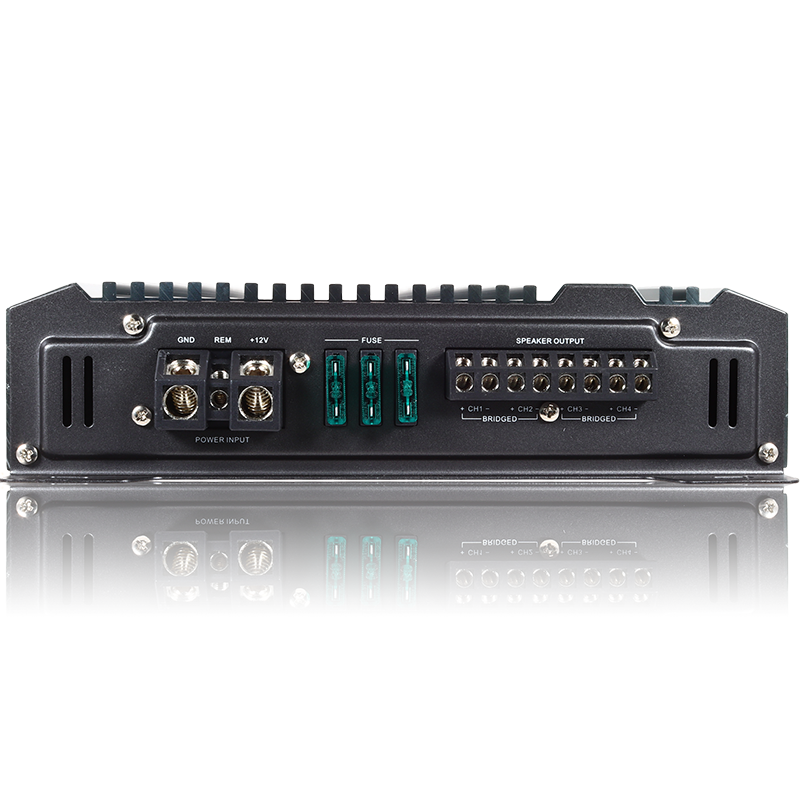

Angled Terminals for show quality installations
Full Complimentary low distortion Class AB design
Tiffany Style RCA connectors
Full Complimentary low distortion Class AB design
Butterworth Crossover Filters
The op amps featured are TI chips w/BB technology high performance audio grade IC's
Docking Pads® to reduce vibration & extend the life the amplifier
DC, Short Circuit, Thermal & Overload Protection, on board fusing
Diagnostic LEDs

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms: 100 W x 4 CH
RMS per channel at 2 Ohms: 175 W x 4 CH
RMS Bridged Mono at 4 Ohms: 350 W x 2 CH
RMS Mono at 1 Ohm: N/A
INPUT SENSITIVITY: 200mV - 6.0V
FREQUENCY RESPONSE: 10Hz - 30KHz +/- 0.5dB
THD: LESS THAN 0.01%
S/N RATIO: > 97 dB
CHANNEL SEPARATION: > 92 dB
DAMPING FACTOR: @100Hz 4 ohm > 200
CROSSOVER RANGE: CH 3&4, CH 1&2
High Pass, 12dB/Octave: 15-500 Hz, 50-3K Hz
Low Pass, 24dB/Octave: 50 - 500 Hz, 500 - 5K Hz
Band Pa:ss N/A
Variable Bass Boost: (0 to +12 dB bass boost at 45 Hz) –
Wired remote bass control included: No
Phase Shift (0 - 180 degrees): No
Fusing: 3 x 35A
Size: (L x W x H) in 17.7 x 8.9 x 2.2

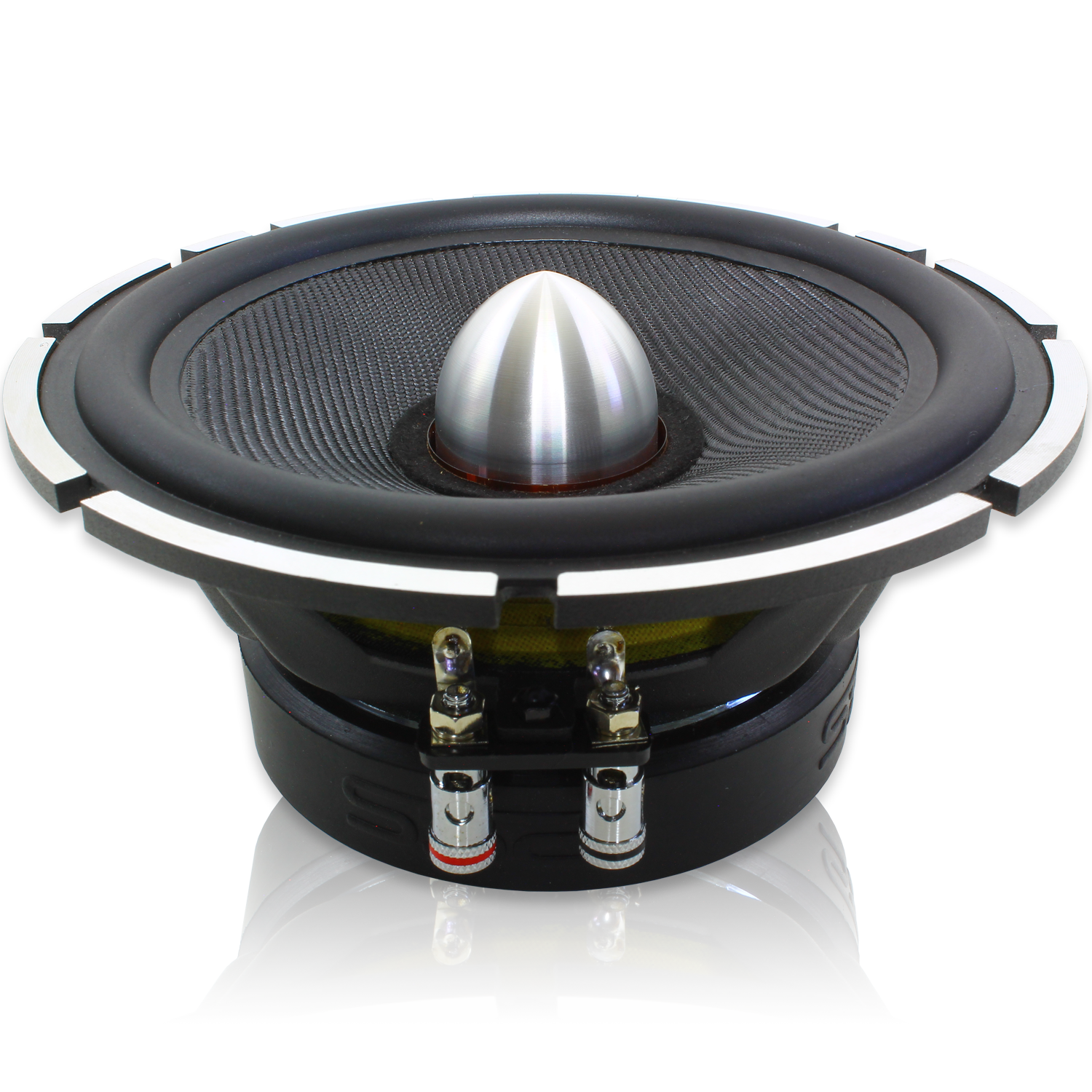

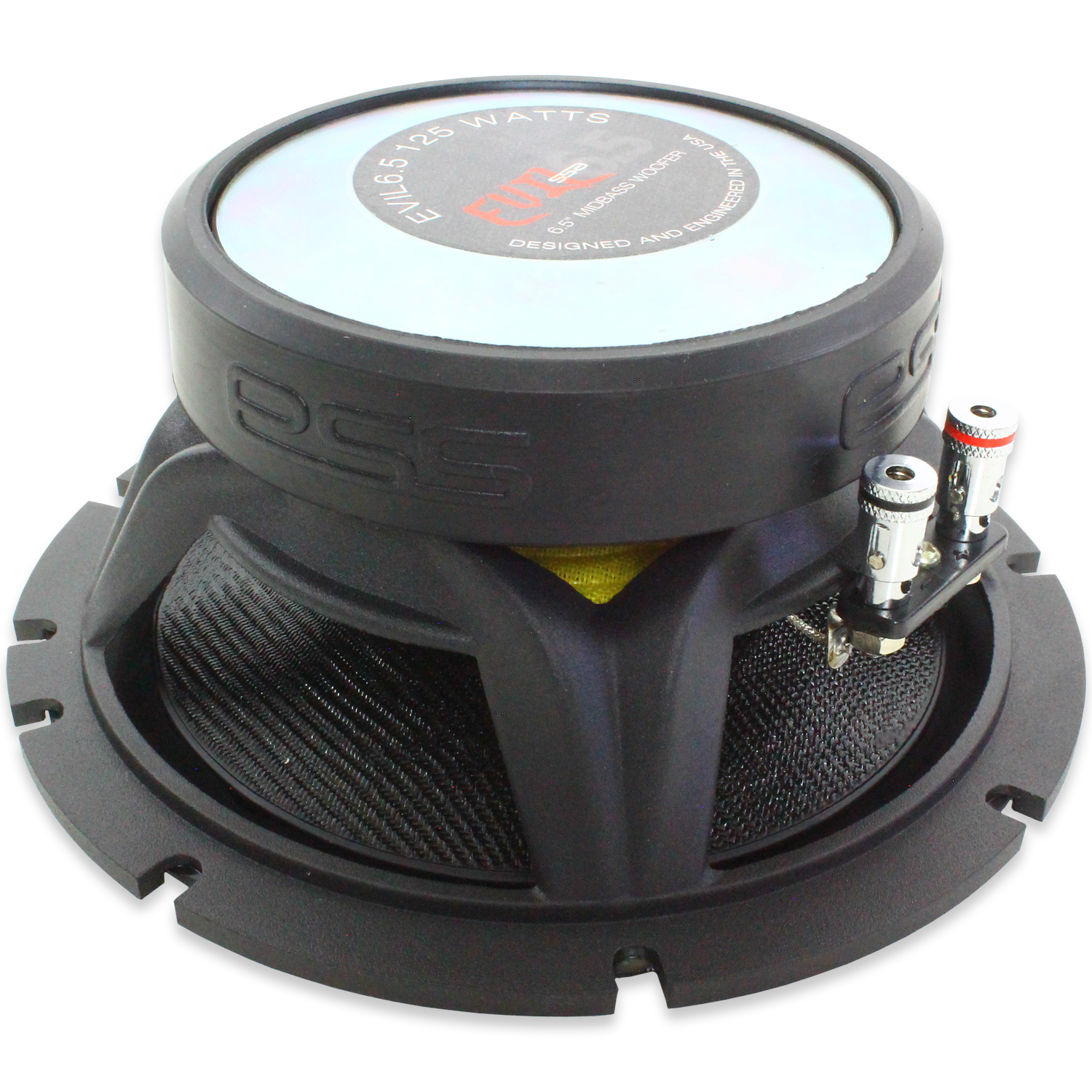

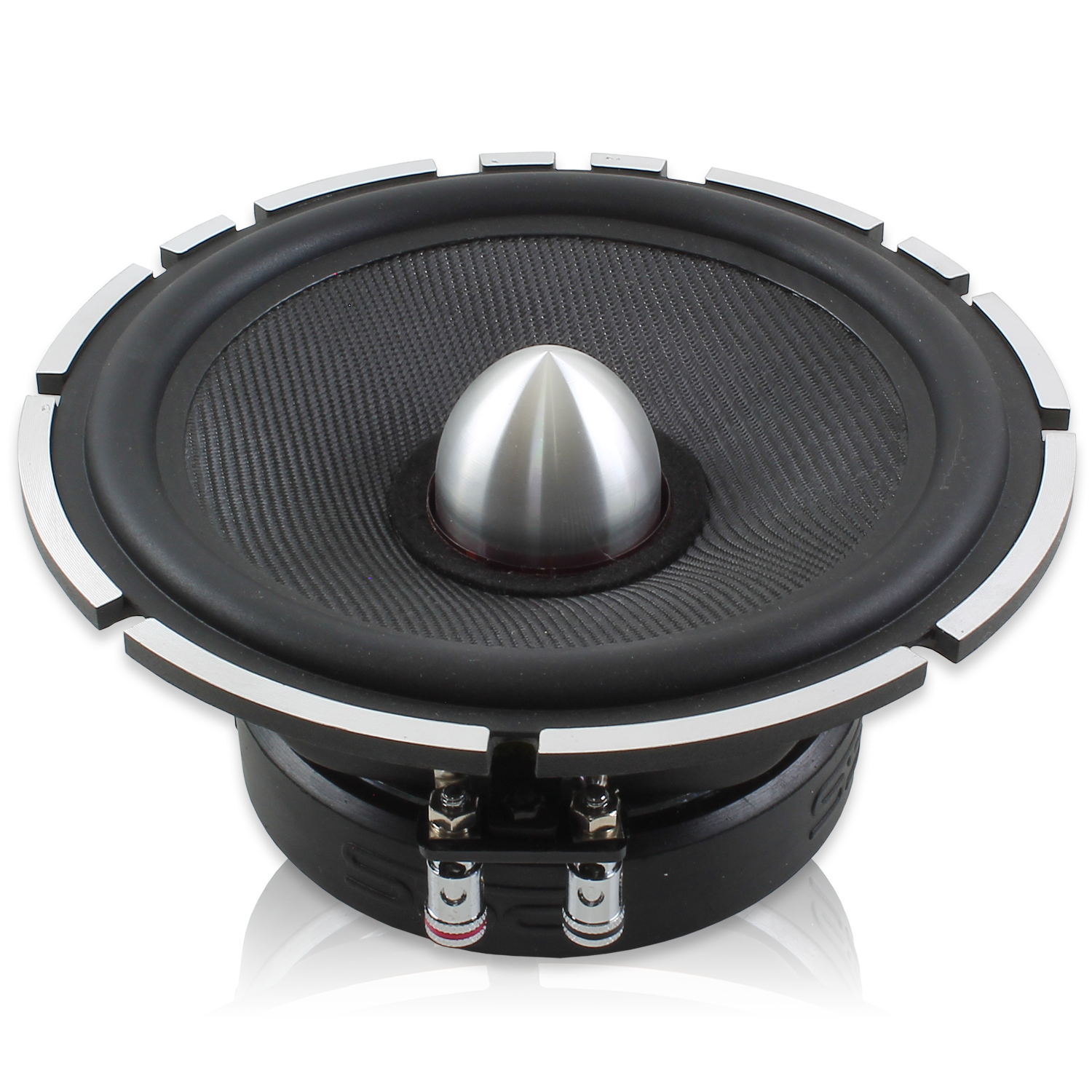

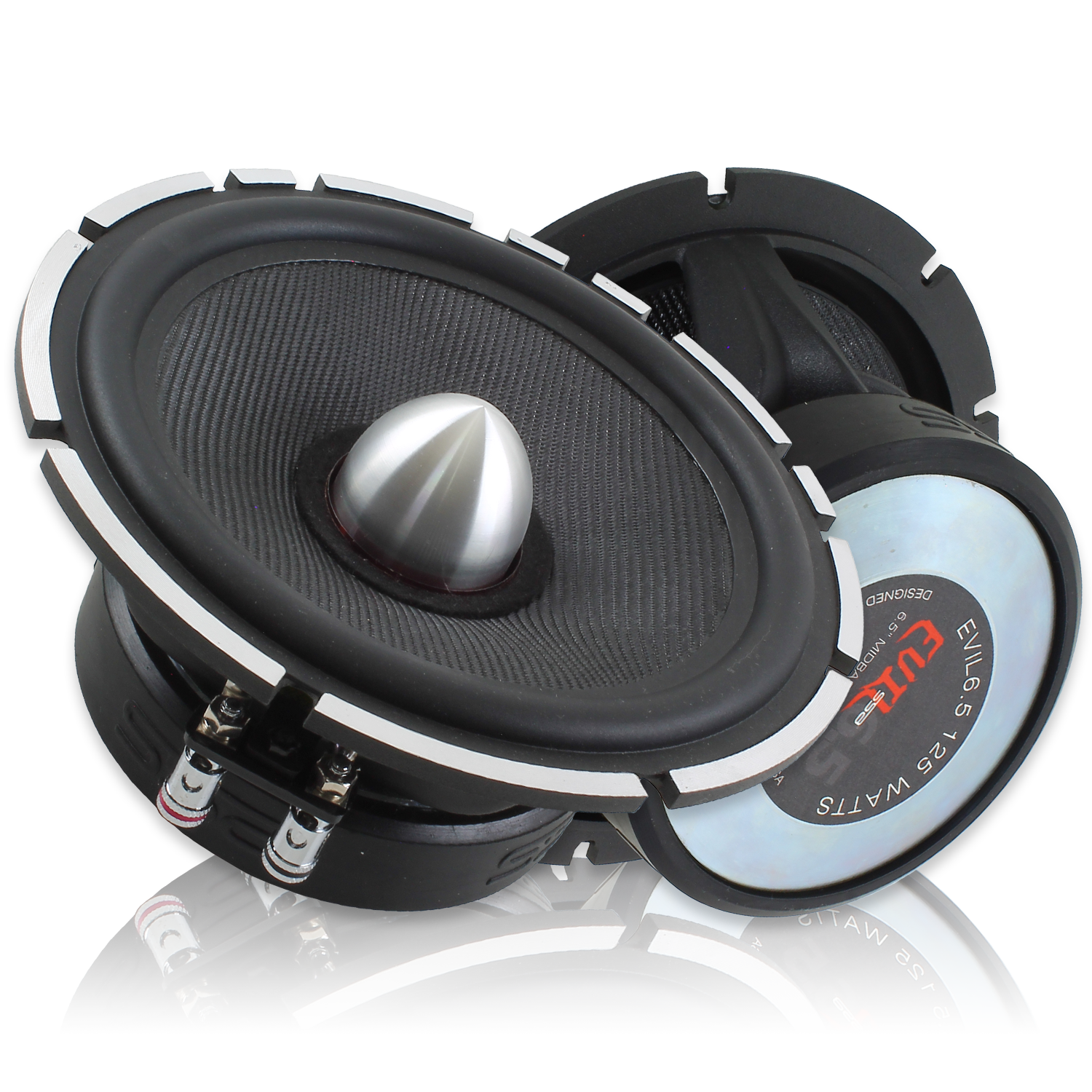

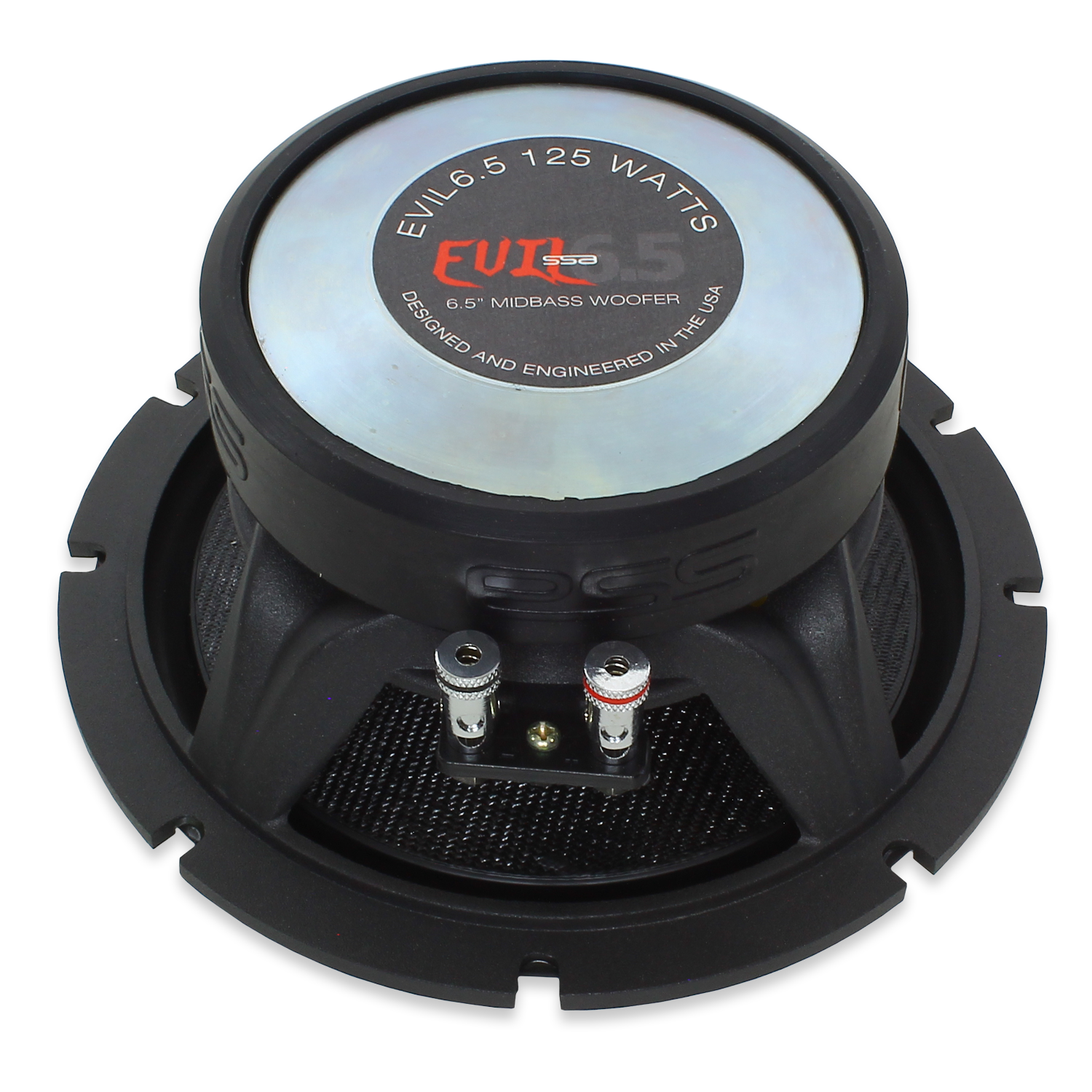

SSA Evil6.5 Mid-bass woofer description

Nearly 2 years in the making, the first mid-bass speaker from SSA is here. Being this is an SSA speaker, elite performance at an affordable price was the ONLY option. Through numerous designs and prototypes, we developed a mid-bass speaker that is deserving of the SSA brand name. As seen by the long list of premium features, (copper coil, carbon fiber cone, shorting ring, Nomex spiders, Aluminum basket and former, solid pole piece, underhung motor) it shows we went the distance to make the SSA Evil6.5 a fantastic sound quality speaker that can take some power and will have strong output when called upon. The SSA Evil6.5 is at home in a well damped car door, or even a home audio tower / bookshelf. When you want top tier mid-bass performance and don't want to spend hundreds, the SSA Evil6.5 is the obvious choice.

SSA Evil6.5 Mid-bass woofer features:

Sold Individually
125 watts rms
Carbon Fiber cone for rigidity, low moving mass and smooth transient response
Copper voice coil for warmth and power handling
FEA optimized Underhung motor design for excellent sound quality
Shorting ring to drastically reduce inductance
Extended solid pole piece for increased motor strength
Nomex spiders for long lasting performance and cone control
Y30 High Energy Ferrite Magnet
Large push terminals for ease of connection and larger speaker wire
High excursion rubber surround
Aluminum cast basket with multiple mounting holes for no frame resonance and great mounting flexibility
Aluminum former for heat dissipation
Phase plug
SSA magnet boot to protect the motor
Designed and engineered in the USA to be quite versatile for many applications, great in both car audio and home audio

SSA Evil6.5 Mid-bass woofer specs:

4 ohm or 8 ohm single voice coil option
Frequency response 45hz - 4500hz
Re: 3.3 ohm / 7.2 ohm
Fs: 65.49hz
Sd: .01474m2
BL: 6.494 T
Qms: 6.6
Qes: 0.51
Qts: 0.474
SPL: 89.9 db 1W/1m
Vas: 11.495L
Cms: 372.51
Mms: 15.854g
Xmax: 6mm one-way

SSA Evil6.5 Mid-bass installation:

3.1" total depth
2.85" Mounting depth
5.7" cut out
6.5 lbs. each
sealed box: 0.3 cubic foot - f3 = 97.7Hz - Qtc: 0.707
ported box: 0.69 cubic foot - f3 = 51.82hz - 2" diameter / 0.9" long port

Our first dedicated tweeter is here, the SSA Evil1. Developed from the start, alongside the SSA Evil6.5’s, the all-new SSA Evil1 is meant for the discerning music fan that really cares about the quality of the music they are listening to. With a large silk dome and low Fs. the SSA Evil1 is very smooth and blends very well with the mid and mid-bass range. Using a sound transparent grill, you can be confident in the fact the tweeter will be safe for many years of excellent performance. Designed to be flexible for not only high-end car audio front stages, but premium bookshelf’s, and high-end home audio towers. In designing the SSA Evil1 we were able to pull off a large 28mm dome in a compact aluminum housing. If you are looking for shrill, piercing, PA-style high’s, this is not the tweeter for you. If you are looking for clarity and balance, at a reasonable price, don’t sleep on the new SSA Evil1.

SSA Evil1 Tweeter features:

Sold in a matched pair
65 watts rms
28mm silk dome with large roll surround
Aluminum faceplate and housing
Sound Transparent protective grill
Low Fs. for flexibility in both home and car audio applications
Neo Motor with shallow rear non-resonant aluminum chamber
SSA logo on mounting flange
65 watts RMS with supplied cap
Designed and engineered in the USA

SSA Evil1 T/S Specs:

SSA Evil1 4ohm:

Re: 3.6 ohms
Fs.: 736.4 hz
Qms.: 0.635
Qes.: 1.05
Qts.: 0.39
SPL 1w/1m: 93

SSA Evil1 8ohm:

Re: 6.2 ohms
Fs.: 838.1 hz
Qms.: 0.589
Qes.: 1.62
Qts.: 0.43
SPL 1w/1m: 95

SSA Evil1 Tweeter installation:

21.5mm Mounting depth
48.5mm cut out
1 lbs. each
61.9 mm (2.44") diameter flange
