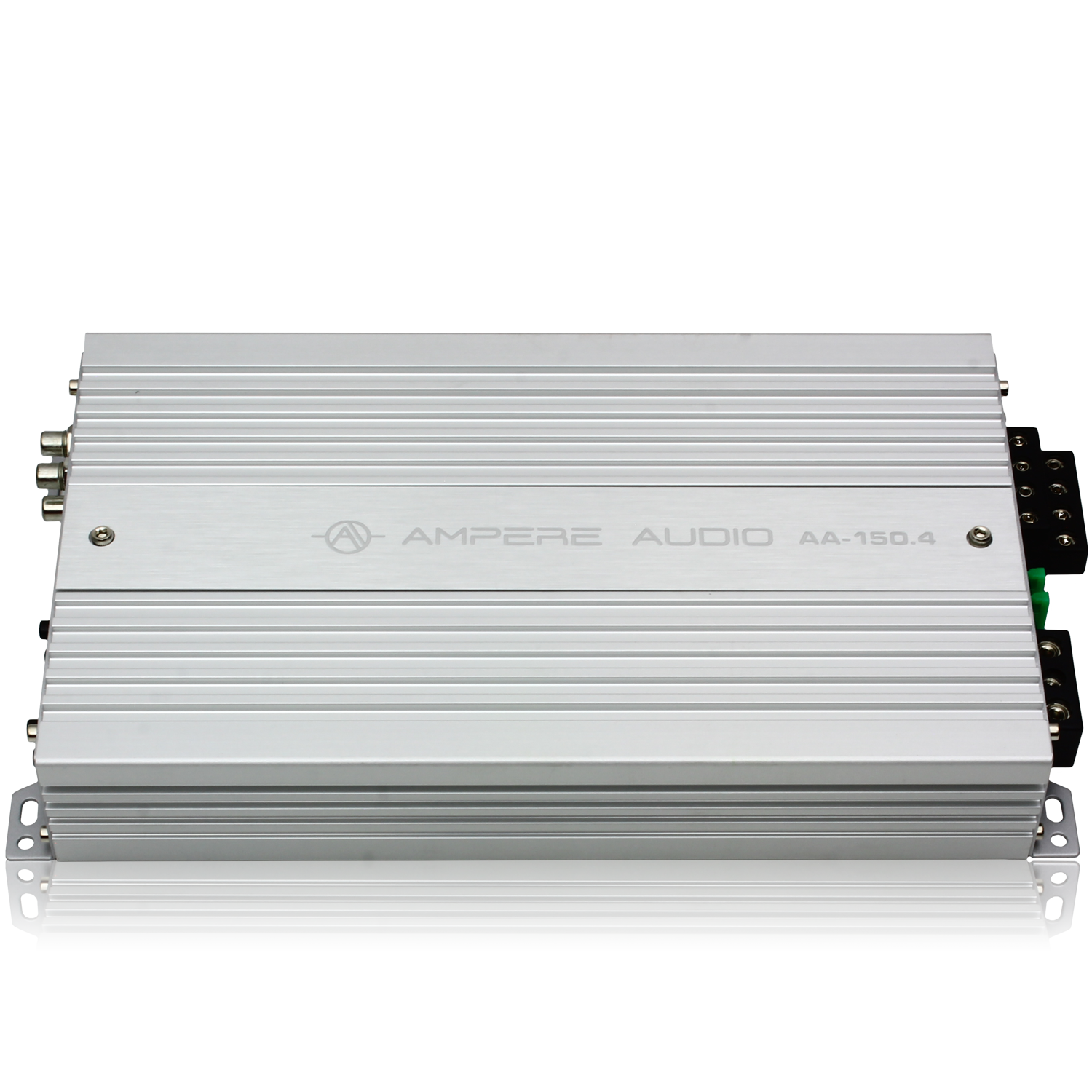

Ampere Audio 150.4 1000w 4 Channel Amplifier

Ampere Audio was established in early 2013 to cater to the real basshead. Ampere Audio believes that sound quality and performance is the number one goal of our products. And for this reason, we strive to offer our customers these products at an affordable price. The evolution of the consumers demand for higher quality products at affordable prices remains the key ingredient for future success of Ampere Audio. Great pricing combined with top noche customer service, we will prove that by trusting Ampere, you made the right choice.

Description

• 4/3/2 Channel Bridgeable Class-D Amplifier
• MOSFET PWM Power Supply
• Stable Into 4 Ohms Bridged or 2 Ohms Stereo Load
• 12dB Octave Variable Subsonic Crossover Slope
• Independent 1/2 and 3/4 Channel High Pass
• Filter Variable with x 10 Range Selectable Switch
• Independent 1/2 and 3/4 Channel Low Pass Filter Variable with x 10 Range Selectable Switch
• HPF/FULL/LPF Selectable Switch
• Independent 1/2 and 3/4 Channel Electronic Crossover Slope Selectable Switch with 12dB and 24dB Octave
• Variable Input Level Control
• Input Sensitivity : 200mV ~ 6V
• Subsonic Filter : 10Hz ~ 500Hz
• Signal Input and Line Out RCA Connectors
• Multi-Way Protection circuitry
• (Thermal/Over Current/Speaker Short/Speaker DC protection)
• Tested Voltage & THD: 14.4V & Less than 0.05% THD
• Operating Voltage : DC10V~16V Power Input
• Wired Remote Controller

Specifications

Continuous Power Output @14.4V Input

-RMS power, 4 ohms stereo: 150W x 4CH

-RMS power, 2 ohms stereo: 225W x 4CH

-RMS power, 4 ohms bridged: 450W x 2CH

T.H.D Continuous @ 4 ohm, 1KHz : <0.1%

Channel Separation: 75dB

Dimensions (mm) : 174(W)x52(H)x290(L)

Recommend Fuse Rating: 30A x 2

Signal To Noise Ratio: >90dB

Low Pass Frequency Crossover: 50Hz~5KHz

High Pass Frequency Crossover: 50Hz~5KHz

Frequency Response: 10Hz~40KHz (+/- 1dB)

Input Sensitivity: DC 8.5V~16V

Operating Voltage: Variable 200mV~8V (+/- 5%)
