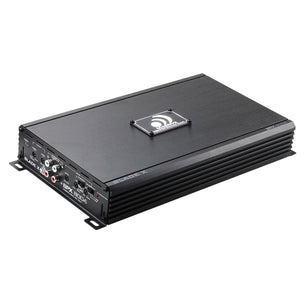

BPX8004 - 60 Watts RMS x 4 @ 4 Ohm 4 Channel Amplifier
The BLADE X "BPX SERIES" Amplifiers are designed with our “Live, Loud and Play Hard†motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BPX8004 is Class A/B designed with a minimum per channel impedance operation of 2 Ohm. All BP Series amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standardsâ€, “ROHSâ€, “E-Mark†and are CTA2006 Compliant. This ensures that no competition can stand up to the Massive Audio BP Series amplifiers when it comes to features, performance and value.
Â
Manuals & Downloads
FEATURES
- Built-in OEM Line Converter
- 2 Ohm Stable DesignÂ
- Mil-Spec PCB with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High-Grade Switching Devices
- Built-In Auto Sensing Turn-On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Level Inputs)
- 0dB ~ 12dB Bass Boost
- Next-Generation Advanced 5-Way Protection Circuitry
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
| Peak Output Power @ 14.4V | 200W x 4 |
| 1Â Ohm RMS | n/a |
| 2Â Ohm RMS | 120W x 4 |
| 4 Ohm RMS | 60W x 4 |
| 4 Ohm Bridged | 240W x 2 |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~35KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.1% |
| S/N Ratio | >90dB |
| Bass Boost | 0~6dB/12dB (45Hz) |
| Minimum Load | 2Â Ohm Stereo |
| Gain Remote | n/a |
| Dimensions | 2"H x 7.1"W x 11.8"L |
The BLADE X "BPX SERIES" Amplifiers are designed with our “Live, Loud and Play Hard†motto. All amplifiers have built-in OEM line converters with RCA inputs that can take a high level speaker signal at up to 9 Volts directly in. By sensing the DC off set of a factory radio it can activate the ATO (Auto Turn On) feature and convert the 12V turn on into a 12V switched out. The BPX8004 is Class A/B designed with a minimum per channel impedance operation of 2 Ohm. All BP Series amps use Mil Spec PCBs, SMD parts, 5 way protection, full MOSFET high grade switching devices and all comply with the “World Wide Standardsâ€, “ROHSâ€, “E-Mark†and are CTA2006 Compliant. This ensures that no competition can stand up to the Massive Audio BP Series amplifiers when it comes to features, performance and value.
Â
Manuals & Downloads
FEATURES
- Built-in OEM Line Converter
- 2 Ohm Stable DesignÂ
- Mil-Spec PCB with SMD parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High-Grade Switching Devices
- Built-In Auto Sensing Turn-On Function (Hi-Inputs)
- 12V Remote Output for External Devices (Hi-Level Inputs)
- 0dB ~ 12dB Bass Boost
- Next-Generation Advanced 5-Way Protection Circuitry
- World Wide Standards Compliant (RoHS, E-Mark, CTA-2006, CE)
SPECIFICATIONS
| Peak Output Power @ 14.4V | 200W x 4 |
| 1Â Ohm RMS | n/a |
| 2Â Ohm RMS | 120W x 4 |
| 4 Ohm RMS | 60W x 4 |
| 4 Ohm Bridged | 240W x 2 |
| Input Level | 0.2~9.0v |
| Freq. Response | 10Hz~35KHz |
| THD at 4 Ohm Load 30% Rated Power | <0.1% |
| S/N Ratio | >90dB |
| Bass Boost | 0~6dB/12dB (45Hz) |
| Minimum Load | 2Â Ohm Stereo |
| Gain Remote | n/a |
| Dimensions | 2"H x 7.1"W x 11.8"L |
