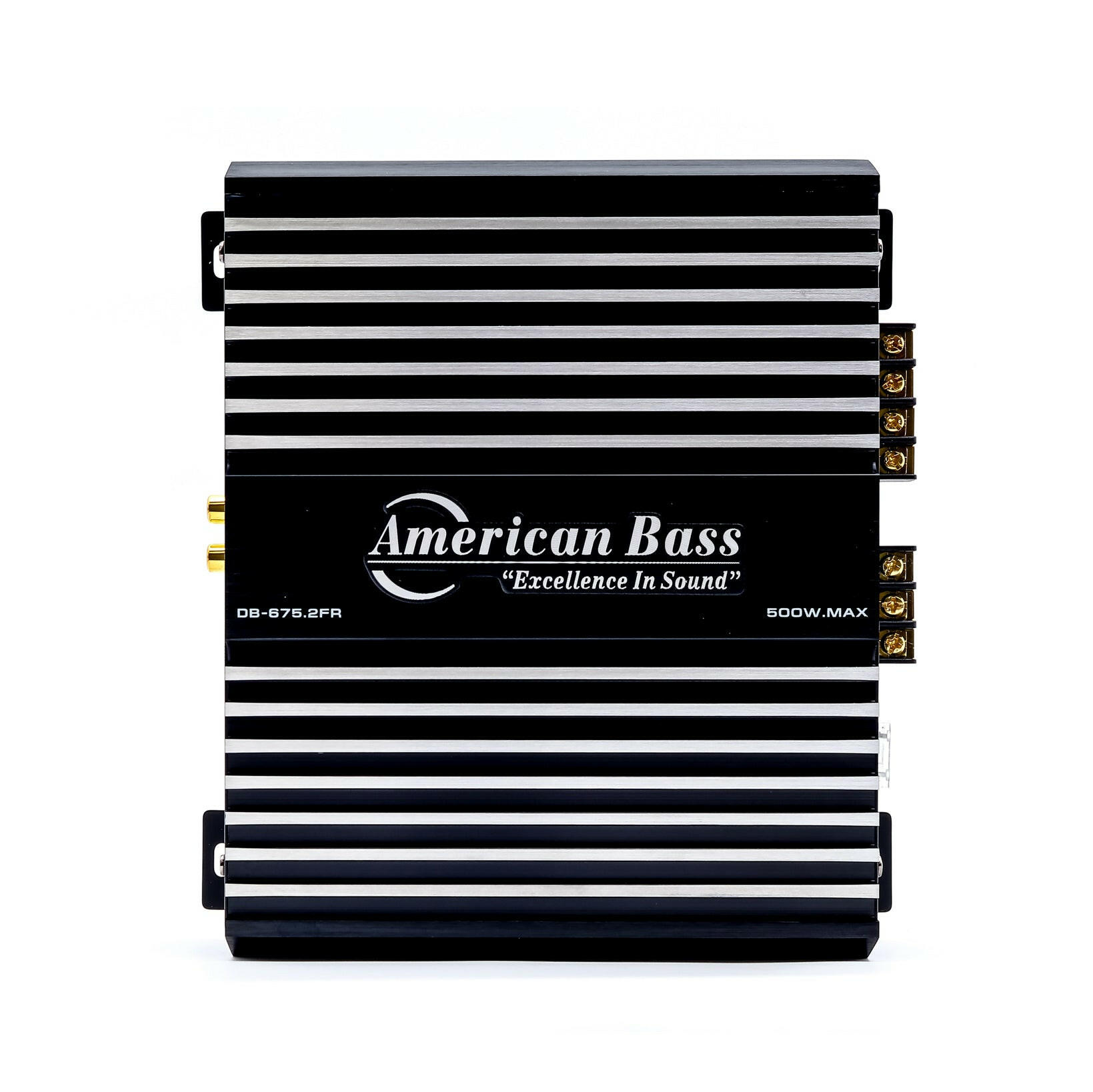

American Bass DB 675.2FR Amplifier
Introducing the American Bass DB Series Amplifier, one of the latest additions to our lineup, designed with affordability and competitiveness in mind. This versatile amplifier series features both two-channel and four-channel high-frequency amps, perfect for those seeking a powerful audio system without breaking the bank. Engineered to deliver loud and clear audio at a fraction of the cost of other amplifiers, the DB Series is a fantastic investment for audiophiles on a budget. The American Bass DB Series Amplifier is your go-to choice for cost-effective, high-quality audio performance.
|
RMS @ 1OHM |
NA |
|
RMS @ 2OHM |
2X130W |
|
RMS @ 4OHM |
2X75W |
|
BRIDGE @ 4OHM |
1X220W |
|
LOW PASS FILTER |
40-180HZ |
|
HIGH PASS FILTER |
NA |
|
BASS BOOST |
0-12dB |
|
BASS BOOST FREQUENCY |
30-80Hz |
|
SUBSONIC FILTER |
10-50Hz |
|
FREQUENCY RESPONSE |
20-190Hz |
|
S/N |
90DB |
|
INPUT SENSITIVITY |
0.2-6V |
|
THD |
<1% |
|
OPERATION VOLTAGE |
9-16V |
|
FUSE RATINGS |
25A |
|
DIMENSION |
7.08X9.45X1.97 INCHES |
Support
