Title

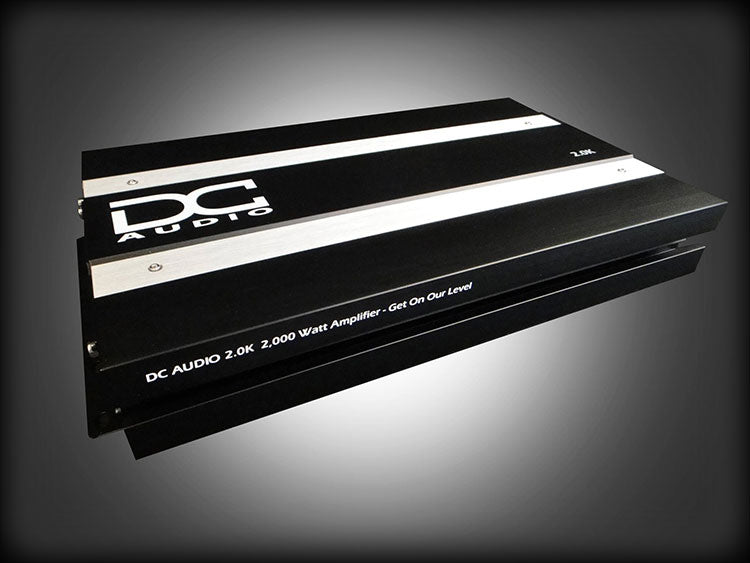

DC Audio 2K A3 2000w Mono Block Amplifier

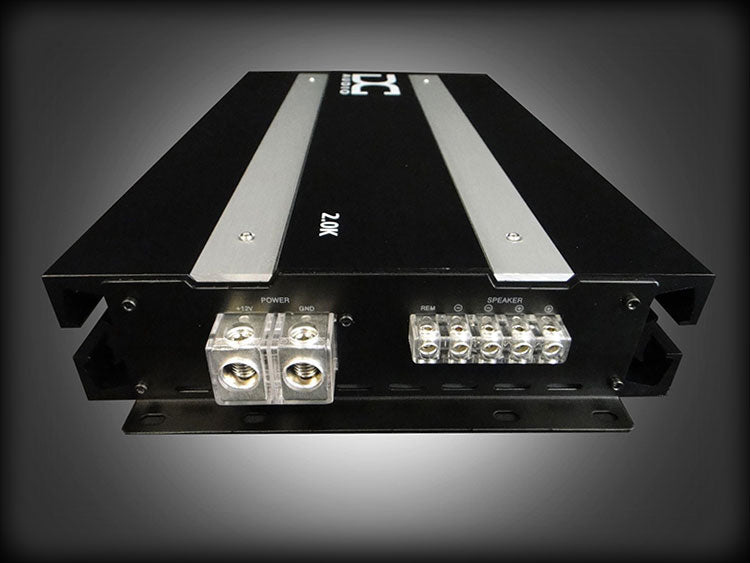

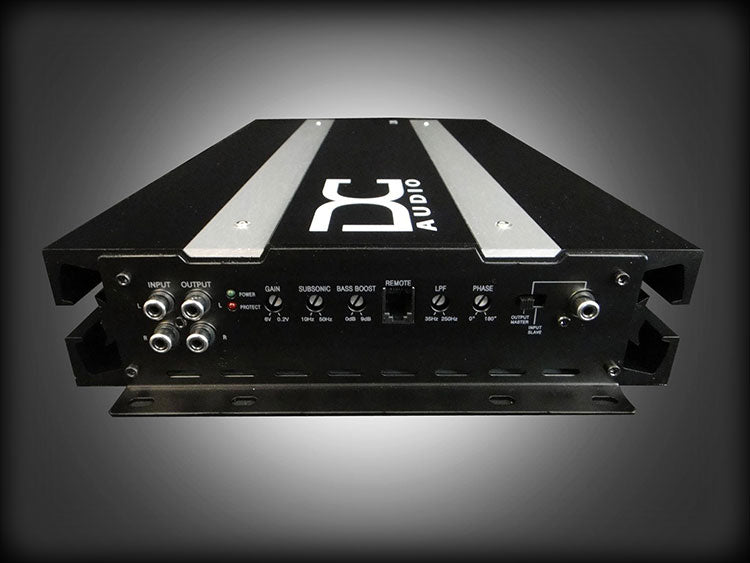

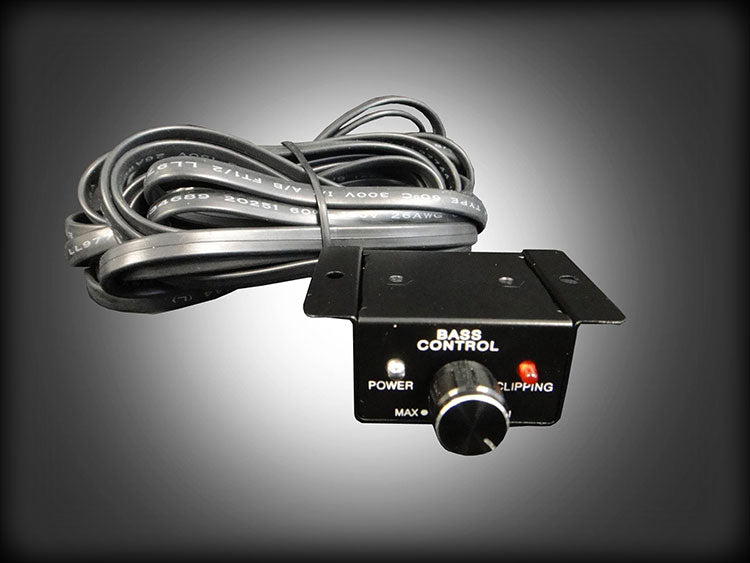

The 2.0kw competition series amplifier is a 2,000 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when strapped. It comes with a bass knob and a clipping indicator. For power inputs it will accept 0 awg for power and 0 awg for ground.
Key Features
• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter
• Variable bass boost
• Wired remote control
• Clipping indicator
We recommend for installation
• 1 upgraded battery under the hood
• 1 extra battery in the rear
• Minimum of one 0 awg ran from the front battery to the rear battery
• Upgraded aftermarket alternator
• Dash mounted voltage meter
| Features | Voltage | 2.0kw | |
| Output Power (RMS) | 4 ohm | 14.4V | 600W x 1 |
| 2 ohm | 1,200W x 1 | ||
| 1 ohm | 2,000W x 1 | ||
| 1 ohm | 16V | No | |
| 1 ohm | 18V | No | |
| Input Sensitivity | 6V~0.2V | ||
| Low Pass Filter | Switchable | ||
| ( @ 24 dB Slope) | Variable | Hz | 35~250 |
| Subsonic Filter | Switchable | ||
| ( @ 24dB slope ) | Variable | Hz | 10~50 |
| Bass Boost | Variable | dB | 0-9dB |
| Frequency Response | Hz | 15-270 | |
| Signal to Noise Ratio | dB | 100 | |
| Damping factor | 150< | ||
| Efficiency @ 4ohm | % | Over 90% | |
| THD @ 4ohms | Less than 0.1% | ||
| Fuse Rating | 200 Amps | ||
| Linked Fuse Rating | 400 Amps | ||
| Indicator | Power | Yes | |
| Protection | Yes | ||
| Clip | Yes | ||
| Speaker & Power terminal | Mold Type | Yes | |
| Power | Gauge | 0Ga | |
| Heatsink Length | inch/mm | 17.72" / 450mm | |
| Heatsink Width | inch/mm | 9.38"/238mm | |
| Heatsink Height | inch/mm | 2.35"/59.6mm |
