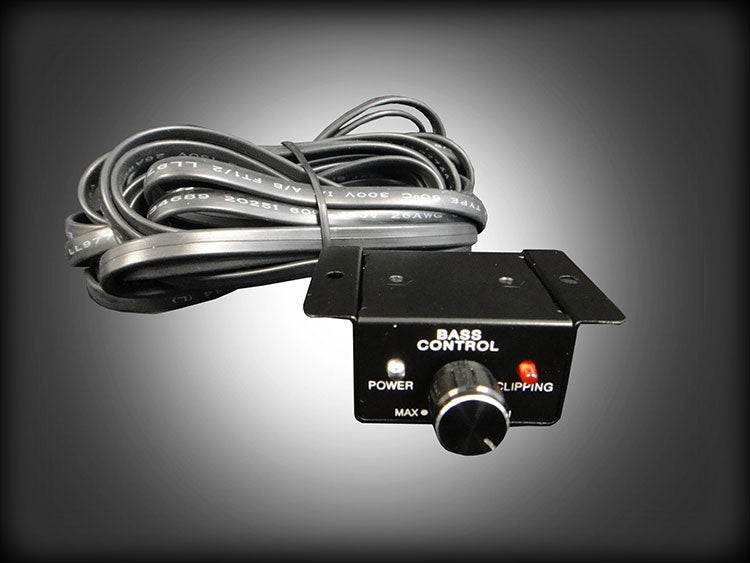

The 90.4 Competition series amplifer is a 90 watts per channel @ 4 ohms or 130 watts per channel @ 2 ohms. This amp has a fully active crossover and lots of clean power for the SQ minded builds. Its also fits installs where you may want to amplify your front stage and bridge the rear 2 channels to your sub stage and have a bass knob to control it. Versatility is what this amp is all about.
Key Features
• Variable high pass filter
• Variable Band pass filter
• 8awg Speaker Connections • 4awg inputs
• Input mode Switch
• Dual power Transformers
• Double Sided Printed Circuit Board
• Class A/B
• Fully Active Crossover
Features | Voltage | 90.4 | |
Output Power (RMS) | 4 ohm | 14.4V | 90Wx4 |
2 ohm | 130Wx4 | ||
1 ohm | n/a | ||
4 ohm mono | 14.4V | 250Wx2 | |
1 ohm | 18V | n/a | |
Input Sensitivity | 6V~0.2V | ||
Frequency Response | Hz | 20Hz~20KHz | |
12dB / Octave Crossover | |||
CH1/2 | |||
Subsonic Filter : | 10Hz ~ 100Hz | ||
Crossover : | 50Hz(500Hz) ~ 5ooHz(5KHZ ) | ||
Multiply : | x1, x10 | ||
Crossover Selector Switch : | HPF / FULL / LP-BP | ||
Bass Boost : | 0~18dB | ||
CH3/4 | |||
Subsonic Filter : | 10Hz ~ 100Hz | ||
Crossover : | 50Hz(500Hz) ~ 5ooHz(5KHZ ) | ||
Multiply : | x1, x10 | ||
Crossover Selector Switch : | HPF / FULL / LP-BP | ||
Bass Boost : | 0~18dB | ||
Remote Control | |||
Frequency Response | Hz | 20-20Khs | |
Signal to Noise Ratio | dB | 105 | |
Damping Factor | 200< | ||
THD @ 4ohms | Less than 0.1% | ||
Fuse Rating | On Board | Yes | 80 Amps |
Indicator | Power | Yes | |
Protection | Yes | ||
Speaker & Power terminal | Mold Type | Yes | |
Power | Gauge | 4Ga | |
Heatsink Length | inch/mm | 14.00"/350mm | |
Heatsink Width | inch/mm | 9.38"/66mm | |
Heatsink Height | inch/mm | 2.35"/59.6mm |
The 90.4 Competition series amplifer is a 90 watts per channel @ 4 ohms or 130 watts per channel @ 2 ohms. This amp has a fully active crossover and lots of clean power for the SQ minded builds. Its also fits installs where you may want to amplify your front stage and bridge the rear 2 channels to your sub stage and have a bass knob to control it. Versatility is what this amp is all about.
Key Features
• Variable high pass filter
• Variable Band pass filter
• 8awg Speaker Connections • 4awg inputs
• Input mode Switch
• Dual power Transformers
• Double Sided Printed Circuit Board
• Class A/B
• Fully Active Crossover
Features | Voltage | 90.4 | |
Output Power (RMS) | 4 ohm | 14.4V | 90Wx4 |
2 ohm | 130Wx4 | ||
1 ohm | n/a | ||
4 ohm mono | 14.4V | 250Wx2 | |
1 ohm | 18V | n/a | |
Input Sensitivity | 6V~0.2V | ||
Frequency Response | Hz | 20Hz~20KHz | |
12dB / Octave Crossover | |||
CH1/2 | |||
Subsonic Filter : | 10Hz ~ 100Hz | ||
Crossover : | 50Hz(500Hz) ~ 5ooHz(5KHZ ) | ||
Multiply : | x1, x10 | ||
Crossover Selector Switch : | HPF / FULL / LP-BP | ||
Bass Boost : | 0~18dB | ||
CH3/4 | |||
Subsonic Filter : | 10Hz ~ 100Hz | ||
Crossover : | 50Hz(500Hz) ~ 5ooHz(5KHZ ) | ||
Multiply : | x1, x10 | ||
Crossover Selector Switch : | HPF / FULL / LP-BP | ||
Bass Boost : | 0~18dB | ||
Remote Control | |||
Frequency Response | Hz | 20-20Khs | |
Signal to Noise Ratio | dB | 105 | |
Damping Factor | 200< | ||
THD @ 4ohms | Less than 0.1% | ||
Fuse Rating | On Board | Yes | 80 Amps |
Indicator | Power | Yes | |
Protection | Yes | ||
Speaker & Power terminal | Mold Type | Yes | |
Power | Gauge | 4Ga | |
Heatsink Length | inch/mm | 14.00"/350mm | |
Heatsink Width | inch/mm | 9.38"/66mm | |
Heatsink Height | inch/mm | 2.35"/59.6mm |
