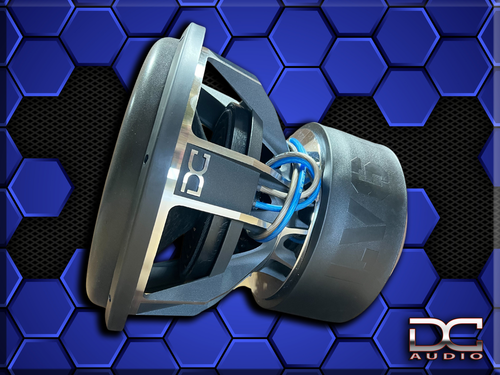

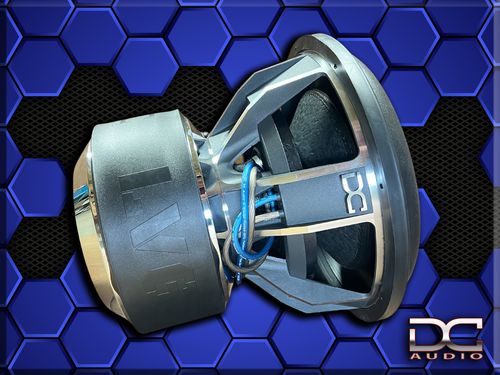

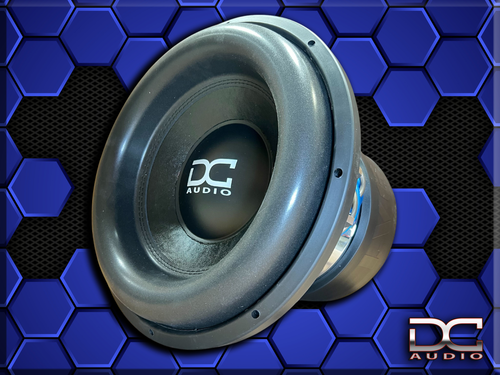

New for 2025 with features include a wire cut top plate, Full inner Aluminum sleeve shorting ring, Longer pole and more rearward coil clearance., The Lv6m5 Elite is DC Audio’s 4” Coil Beast. It has evolved into what most big builds are after, a sub that can take lots of power and Crush Out the Lows!!
With a world that has access to amplifiers of today's size we knew we needed a subwoofer that could keep up. A Large flat wound 4” Coil and 10” Spaced Spiders with Plenty of Xmax clearance is what we have to offer in the Level 6!!
The new Lv6m6 Elite will find itself at home in the SPL lanes or slappin down your hometowns cruise strip.
To really step it up with this driver take a look at the Carbon Fiber cone and dustcap options available for it.

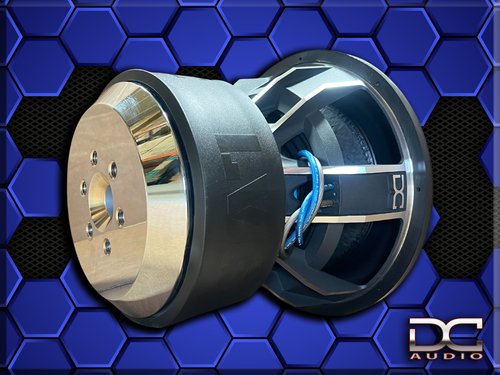

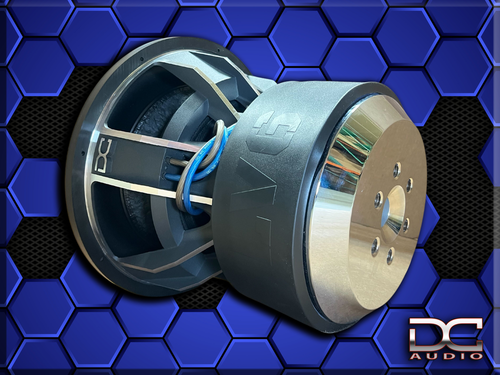

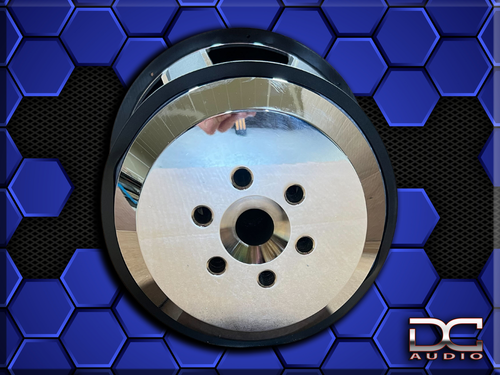

We have changed the cosmetic look of the driver as well as added a pole vent to the motor.
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 12" | 13" |
| Mounting Hole Diameter | 14.25" | 16.90" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 4.0" | 4.0" |
| Displacement | .23 ft | .26ft |
| Power Handling rms/peak | 4500/9000 | 4500/9000 |
| Ohm Options | d.7/d1/d1.4/d2/d4 | d.7/d1/d1.4/d2/d4 |
| Sd | 815 cm | 1159 cm |
| Vas | 37.60 L | 82.29 L |
| Cms | 44.23 um/n | 41.71 um/n |
| Mms | 724 g | 762 g |
| Fs | 28.78 Hz | 28.21 Hz |
| Bl | 38.97 N/A | 37.09 N/A |
| Re | 4.07 Ohm | 3.76 Ohm |
| Le | 5.17 mH | 5.19 mH |
| Qms | 7.45 |
7.63 |
| Qes | 0.35 |
0.37 |
| Qts | 0.33 |
0.35 |
| Xmax | 32mm | 32mm |
| Ref SPL @1 watt | 85.81 db | 88.73 db |
| Suggest Sealed Box | N/A ft | N/A ft |
| Suggested Ported Box | 3.25 ft | 5.5 ft |
