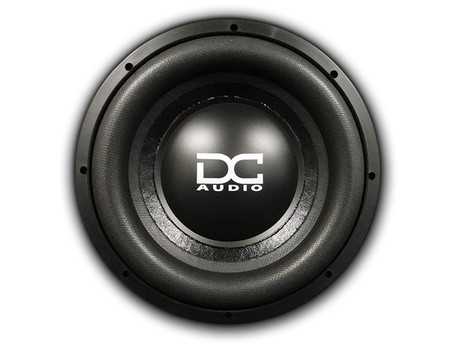

The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.
The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!
12" | 15" | 18" | |
---|---|---|---|
Mounting Depth | 9.75" | 11" | 12" |
Mounting Hole Diameter | 11.15" | 14.25" | 16.90" |
Outside Driver Diameter | 12.5" | 15.7" | 18.5" |
VC Diameter | 3.0" | 3.0" | 3.0" |
Displacement | .19 ft | .23 ft | .26ft |
Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 |
Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
Sd | 494 cm | 791 cm | 1159 cm |
Vas | 22.368 L | N/A L | 129.16 L |
Cms | 0.076 Mm/n | N/A Mm/n | 61.35 um/n |
Mms | 332.5 g | 367.4 g | 534.19 g |
Fs | 31.63 Hz | 30.1 Hz | 27.8 Hz |
Bl | 24.165 N/A | 23.73 N/A | 26.49 N/A |
Re | 4.169 Ohm | 1.8 Ohm | 4.66 Ohm |
Le | 5.539 mH | N/A mH | 4.42 mH |
Qms | 6.204 |
6.31 |
8.27 |
Qes | 0.4717 |
0.37 |
0.62 |
Qts | 0.4384 |
0.35 |
0.577 |
Xmax | 34mm | 34mm | 34mm |
Ref SPL @1 watt | N/A | 90.3 db | 88.25 db |
Suggest Sealed Box | 1.0 ft | 2.0 ft | 3.5 ft |
Suggested Ported Box | 1.50 ft | 3.25 ft | 5.5 ft |
