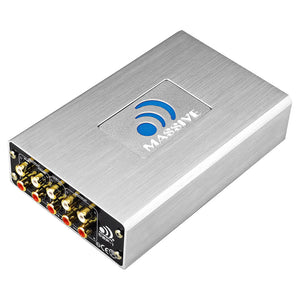

DSP-1 - Digital Signal Processor Built-In 4 Channel Amplifier
*BY PURCHASING THIS HIGHÂ PERFORMANCE PRODUCT YOU AGREE TO THEÂ TERMS AND CONDITIONSÂ SET FORTH IN THE LIMITED WARRANTY EXCLUSIONÂ POLICY
CLICK HERE FOR THE DSP-1 SOFTWARE DOWNLOAD
The DSP-1 is a unique combination of a Four Channel amplifier and a Digital Signal Processor in one piece. We have used uncompromising design and engineering that Massive Audio customers are accustomed to, incorporating the latest in small format technology. Not only do you get a high performance, high quality product, but you also are saving a lot of space. The same proven quality of Massive Audio lives on in the new DSP-1.
Manuals & Downloads
FEATURES
- Eight (8) fully configurable output channels capable of 4V rms (12.5V pp) RCA output
- Eight (8) summing input channels, compatible with Low-Level& High-Level input types
- Bluetooth Audio Streaming with Codec for audiophile audio quality
-
Elite Audio Reproduction from:
a) 24-bit resolution ADC/DAC’s
b) 56-bit double precision signal processing
c) Frequency Response from 10hz to 20Khz (+/- 1dB)
d) THD (Total Harmonic Distortion) < 0.05%
e) SNR (Signal to Noise Ratio) > 95dB -
Audio Sign Processor:
a) Precision crossover system: Linkwitz-Riley &Butterworth topologies
b) 12 / 18 / 24 / 36 / 48 dB octave crossover slopes available
c) Full Pass / High Pass / Low Pass / Band Pass / Peak /Shelving Filters
d) Up to 31 Parametric equalizer bands with adjustable frequency & bandwidth
e) Full Time-Alignment correction & Phase rotation
f) R.M.S. limiter with adjustable Threshold, Attack, & Decay
SPECIFICATIONS
 Â
| RMS Power | 60w x 4 |
| PEAK Power | n/a |
| RMS @ 2 Ohms | 80w x 4 |
| Bridged RMS | n/a |
| Min Impedance | 2Â Ohm |
| Min Ohm Bridged | n/a |
| THD @ 4Ohm Load 30% Rated Power | <0.05% |
| S/N | >95 dB |
| Max Voltage | 16v |
| Max RCA Voltage | 8.5v (+/- 5%) |
| Freq. Response | 10Hz ~ 20KHz |
| Dimensions | 4.2 (in) W x 1.6 (in) H x 6.5 (in) L |
| Bass Remote | n/a |
