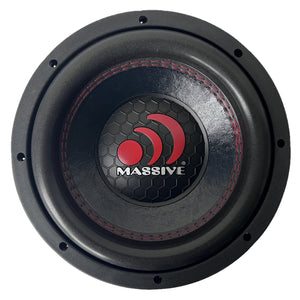

GTX104H - 10" 800 Watts RMS Dual 4 Ohm Subwoofer
SOLD AS EACH
Our GTX Series subwoofers are rated at 250-1000 watts RMS / 500-2000 watts MAX power with a 1.5-2.5" voice coil configured for dual 2/4 ohm impedance. All GTX subs use tight Red stitching that’s sewn through a UV treated non-pressed paper cone onto a Pressed foam surround. Then it’s bonded to a heavy gauge steel basket that’s bolted to double stacked high flux Y30 70-150oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring-loaded 5-way binding nickel-plated connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
Manuals & Downloads
FEATURES
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Copper Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- Non-Pressed Paper Cone with Pressed Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
- 9.05" Cutout / 10.39" Overall Diameter, 3.34" Depth
SPECIFICATIONS
| Size | 10" |
| Watts RMS | 600-800 |
| Peak Power | 1600 |
| Cone | Non-Pressed Paper |
| Voice Coil | 2.5" Dual 4 Ohm |
| Surround | EROMÂ Foam |
| Magnet | 120oz |
| Terminals | 5 Way Binding Push Terminals |
| Basket | Heavy Gauge Steel |
| Tinsel Leads | Woven Round |
| X-Max | 15mm + 10mm top plate |
| SPL | 87.5 dB |
| FS | 49.8Hz |
| Ported Box | 11"H x 12"D x 12"W / 7.07 sq. in. Port Area |
| Sealed Box | 0.72Â ft3 |
