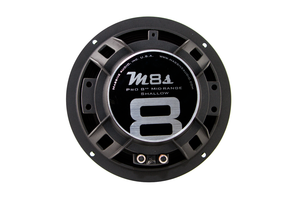

M8S - 8" 140 Watt 4 Ohm Mid-Range Shallow Mount Speaker
*Sold as each not in pairs.
Massive Audio"s "MS Series" Shallow Mount Mid-Range Speakers along with its "M Series brethren" are all engineered in the USA to perform at perfectly selected mid-range frequencies with high sensitivity to enhance your listening experience. The "Slim Series" even feature a special aluminum heat sink / neodymium magnet on top of the speaker to help dissipate extra heat helping to keep the voice coils cooler for extended playing time! Slim Series deliver clean high output and will fit into most any restricted spaces courtesy of their high powered neodymium magnet assembly and low profile mounting for any limited space restrictions! Truly Unique, Definitely Massive!
"On a Stage or in a Car Massive Drives it Home!"
FEATURES
- Cast Aluminum Basket
- Kapton Coil Former
- 1.5" Copper Voice Coil
- Neodymium Magnet
- Vented & Extended Core
- Paper Cone
- Flat Foam Surround Cone Edge
- Aluminum Phase Plug / Heat Sink for Heat Dissipation
- Ultra Shallow 2.83" Mounting Depth
SPECIFICATIONS
| Nominal Basket Diameter | 8.3", 210mm |
| Nominal Impedance | 4 Ohms |
| RMS Watts | 140 W |
| Music Program | 300 W |
| Resonance | 100 Hz |
| Usable Frequency Range | 100Hz-7KHz |
| Sensitivity | 98 dB |
| Magnet Weight | 2.1 oz |
| Gap Height | 0.24", 6mm |
| Voice Coil Diameter | 1.5â€Â, 38.5mm |
| Resonant Frequency (fs) | 138 Hz |
| DC Resistance (Re) | 2.6 |
| Mechanical Q (Qms) | 0.603 |
| Overall Diameter | 8.3", 210mm |
| Mounting Holes Diameter | 0.22", 5.5mm |
| Mounting Holes | B.C.D. 7.72", 196mm |
| Depth | 2.36", 60mm |
| Basket Materials | Cast Aluminum |
| Cone Composition | Paper Cone |
*Sold as each not in pairs.
Massive Audio"s "MS Series" Shallow Mount Mid-Range Speakers along with its "M Series brethren" are all engineered in the USA to perform at perfectly selected mid-range frequencies with high sensitivity to enhance your listening experience. The "Slim Series" even feature a special aluminum heat sink / neodymium magnet on top of the speaker to help dissipate extra heat helping to keep the voice coils cooler for extended playing time! Slim Series deliver clean high output and will fit into most any restricted spaces courtesy of their high powered neodymium magnet assembly and low profile mounting for any limited space restrictions! Truly Unique, Definitely Massive!
"On a Stage or in a Car Massive Drives it Home!"
FEATURES
- Cast Aluminum Basket
- Kapton Coil Former
- 1.5" Copper Voice Coil
- Neodymium Magnet
- Vented & Extended Core
- Paper Cone
- Flat Foam Surround Cone Edge
- Aluminum Phase Plug / Heat Sink for Heat Dissipation
- Ultra Shallow 2.83" Mounting Depth
SPECIFICATIONS
| Nominal Basket Diameter | 8.3", 210mm |
| Nominal Impedance | 4 Ohms |
| RMS Watts | 140 W |
| Music Program | 300 W |
| Resonance | 100 Hz |
| Usable Frequency Range | 100Hz-7KHz |
| Sensitivity | 98 dB |
| Magnet Weight | 2.1 oz |
| Gap Height | 0.24", 6mm |
| Voice Coil Diameter | 1.5â€Â, 38.5mm |
| Resonant Frequency (fs) | 138 Hz |
| DC Resistance (Re) | 2.6 |
| Mechanical Q (Qms) | 0.603 |
| Overall Diameter | 8.3", 210mm |
| Mounting Holes Diameter | 0.22", 5.5mm |
| Mounting Holes | B.C.D. 7.72", 196mm |
| Depth | 2.36", 60mm |
| Basket Materials | Cast Aluminum |
| Cone Composition | Paper Cone |
