Prodigy Audio
SKU: NBM1000.5
Categories : (Brand) Prodigy Audio
In Stock
$345.99

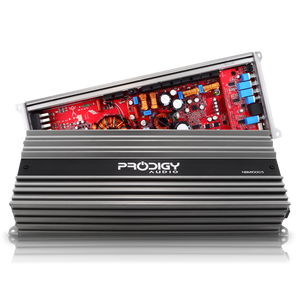

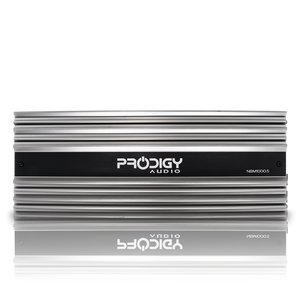

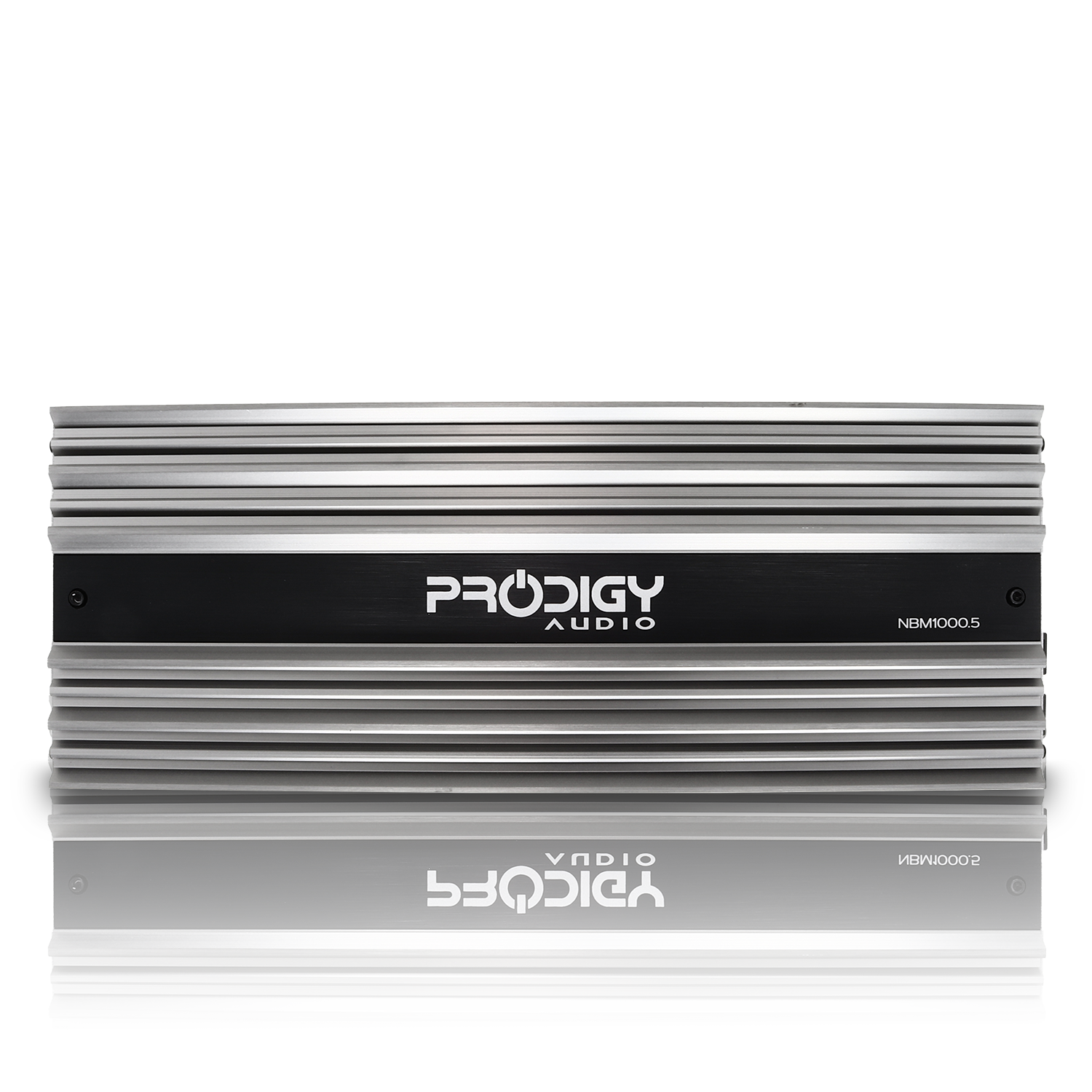

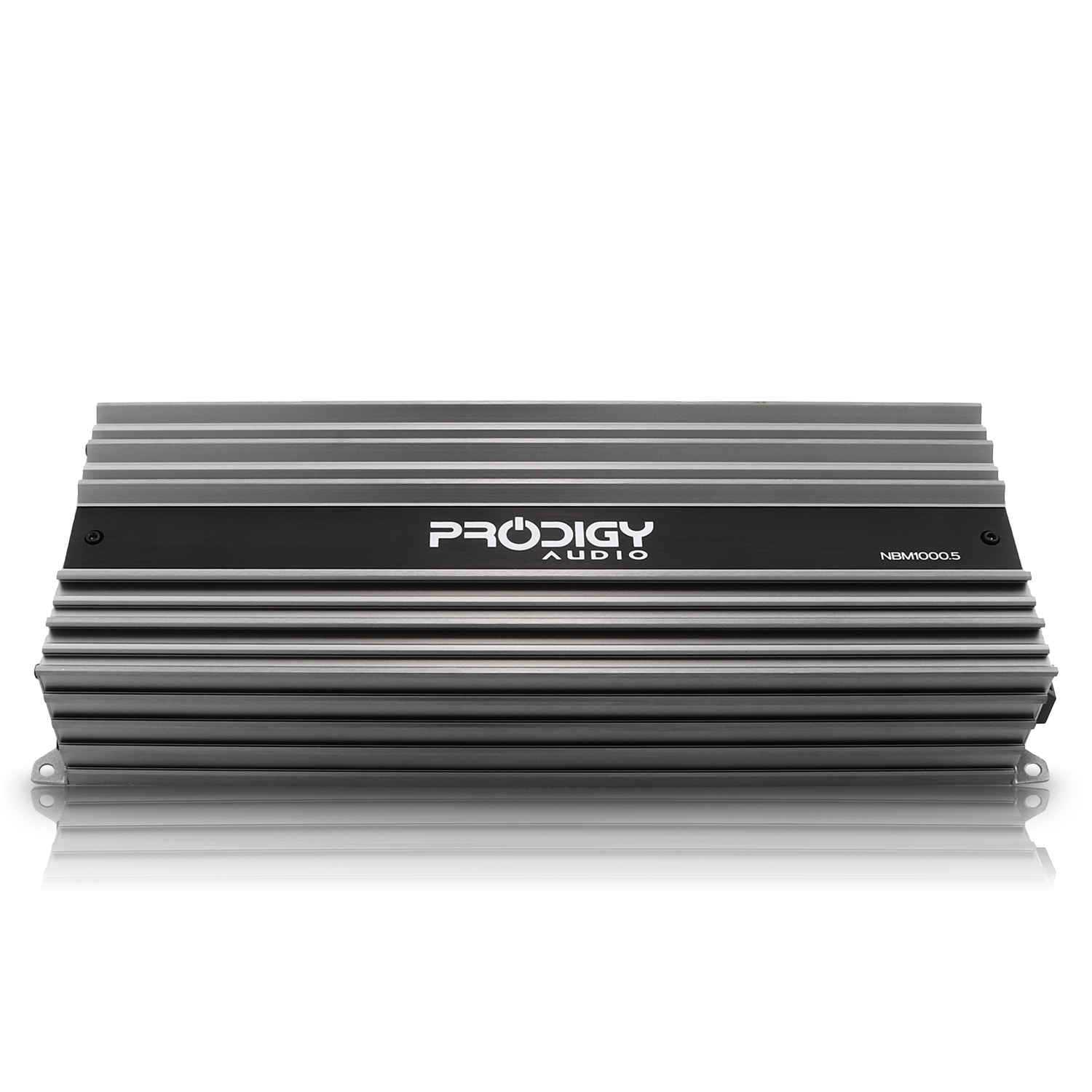

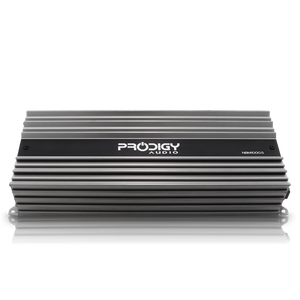

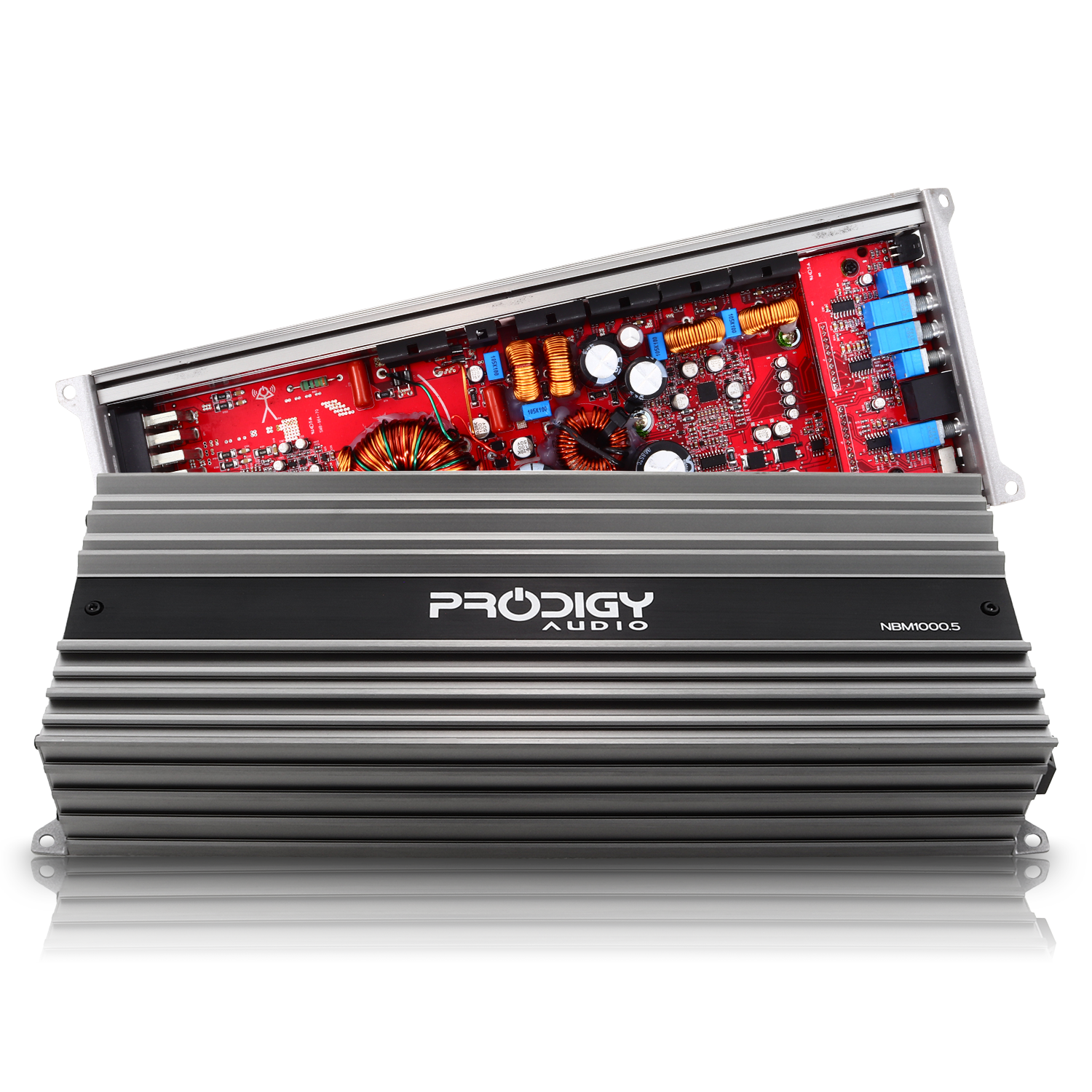

Designed to deliver excellent sound quality and performance, the NBM1000.5 is a mini chassis amplifier that is ready to power your system with dynamic sound and performance. These amplifiers are built in South Korea with excellence.

Technical Highlights

  • FULL RANGE & DIGITAL 5 CHANNEL AMPLIFIER
  • CH1-CH4 STABLE INTO 2OHM STEREO OR 4OHM BRIDGED
  • CH5 STABLE INTO 1OHM MONO
  • HIGH SPEED MOSFET POWER SUPPLY
  • VARIABLE HIGH PASS FILTER
  • VARIABLE HIGH PASS FILTER X10 FOR CH3 & CH4
  • LOW PASS FILTER MULTIPLY X10 FOR CH3 & CH4
  • BAND PASS FILTER CAPABLE FOR CH3 & CH4
  • VARIABLE SUBSONIC FILTER
  • 4 WAY PROTECTION CIRCUITS ( HIGH & LOW VOLTAGE, TEMPERATURE DISPLAY, CLIPPING LIGHT)
  • REMOTE BASS KNOB WITH VOLTMETER, TEMPERATURE AND CLIPPING

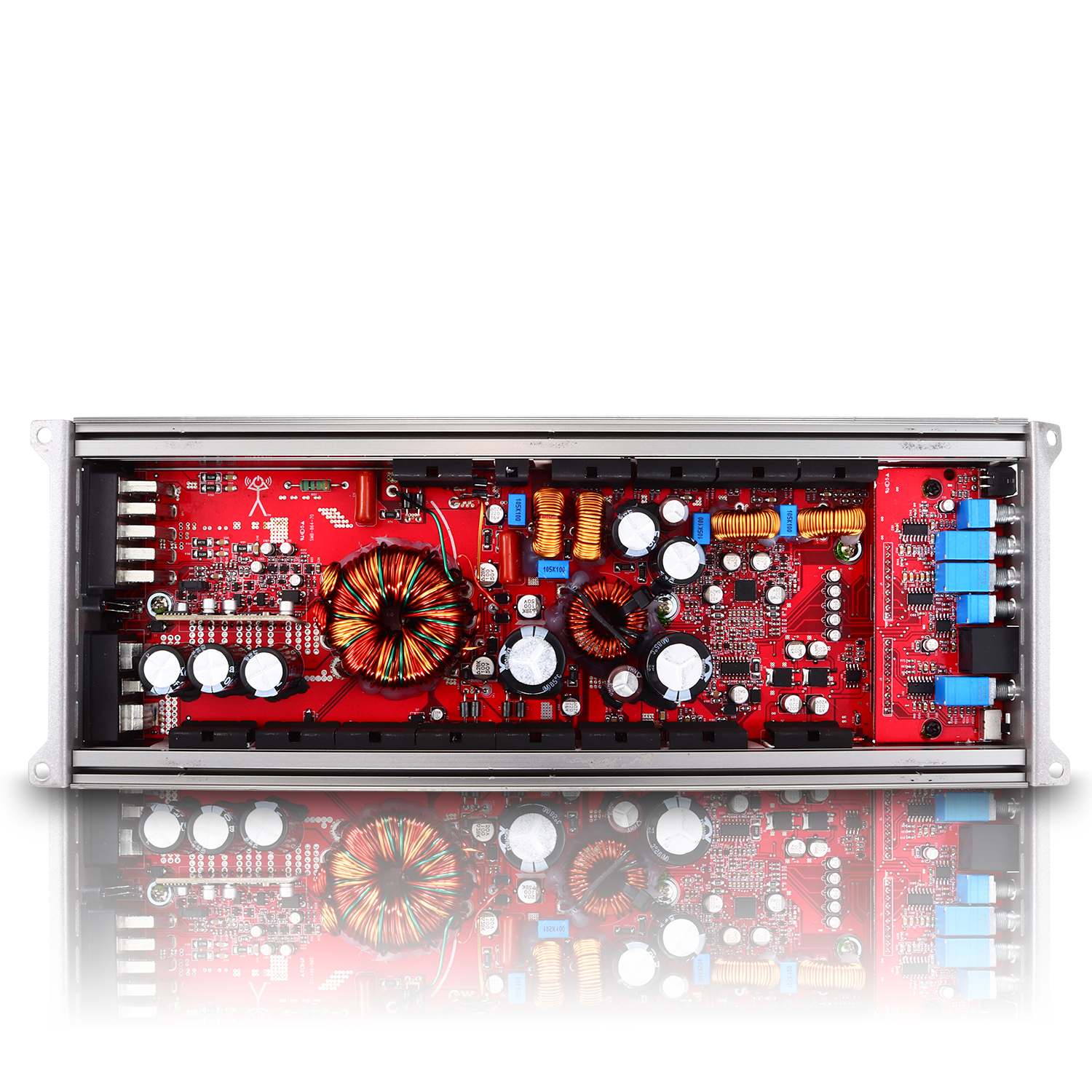

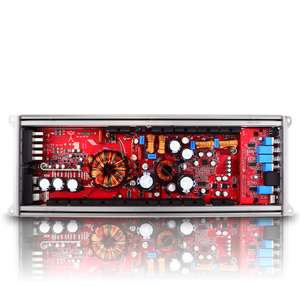

  • HIGH PURITY COPPER PRINTED CIRCUIT BOARD

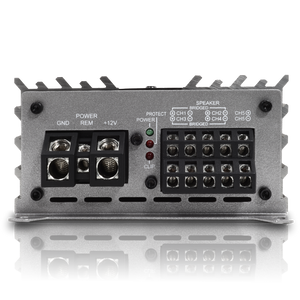

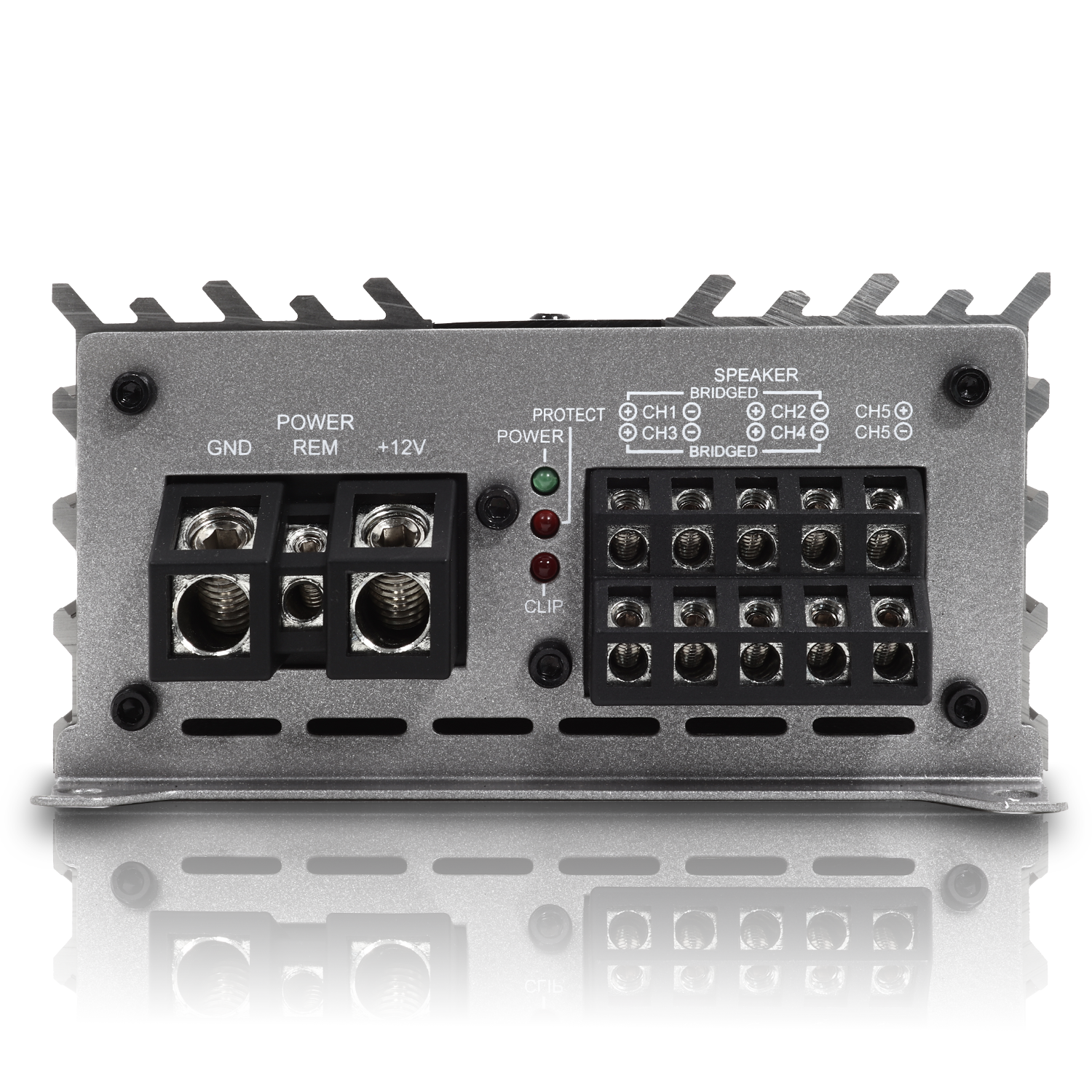

  • 4 GAUGE POWER / GROUND TERMINALS

Specifications:

  • RMS power, 4ohm: 100W x 4 + 250W x 1
  • RMS power, 2ohm: 130W x 4 + 400W x 1
  • RMS power, 1ohm for CH5: 500W x 1
  • RMS power, 4ohm Bridged: 260W x 2 + 250W x 1
  • Frequency Response: 10Hz - 23KHz for CH1 - CH4, 11Hz - 260Hz for CH5

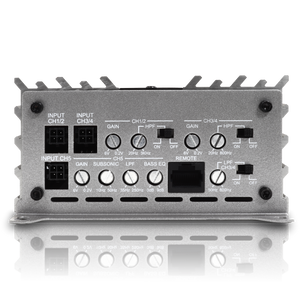

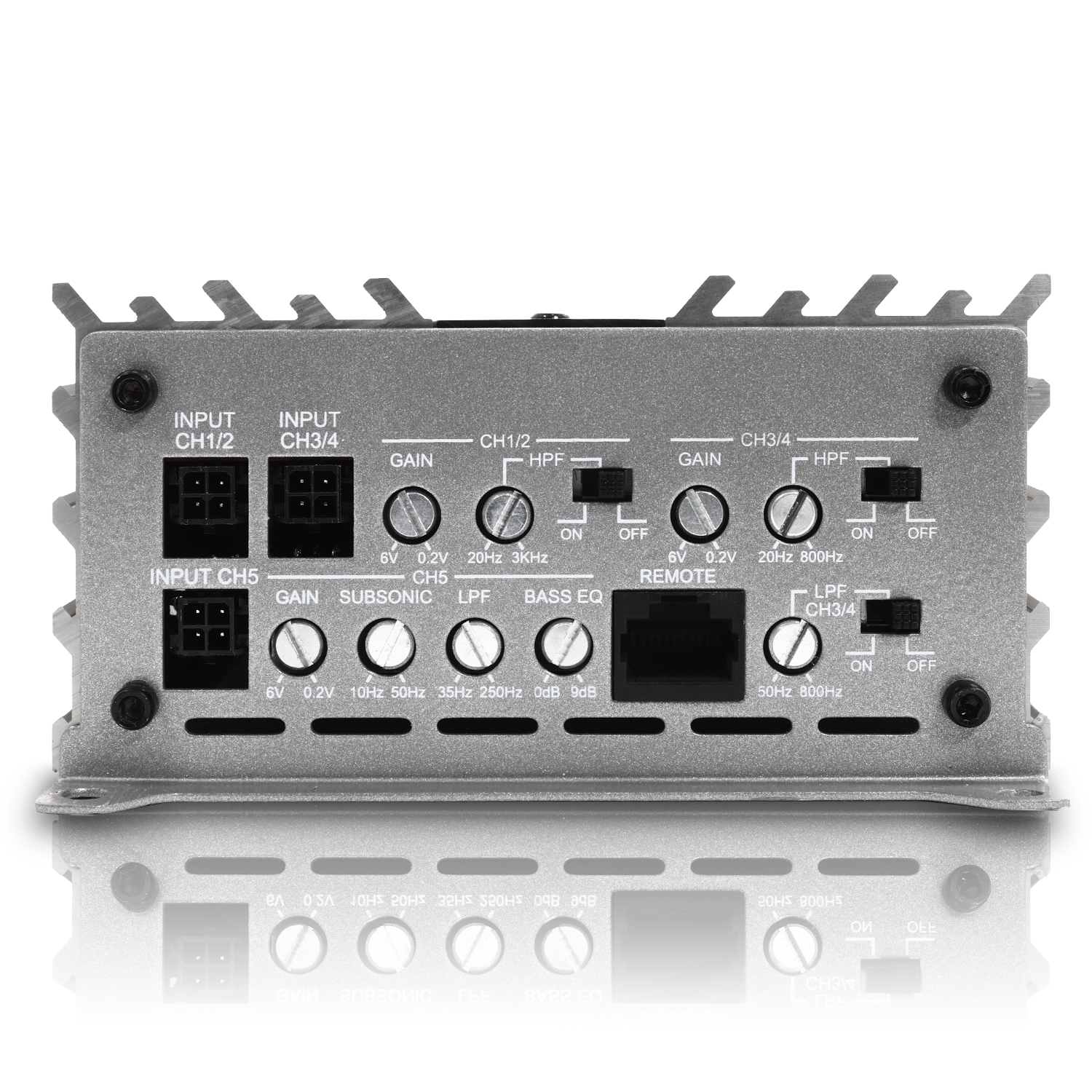

  • High Pass Filter (CH1 & CH2): 20Hz - 5KHz
  • High Pass Filter (CH3 & CH4): 20(200)Hz - 800(8K)Hz, MULTIPLY X10
  • Low Pass Filter (CH3 & CH4): 50(500)Hz - 800(8K)Hz, MULTIPLY X10
  • BANDPASS FILTER: YES
  • Subsonic Filter (CH5): 10Hz - 50Hz
  • Low Pass Filter (CH5): 35Hz - 250Hz
  • Remote Bass Knob: Voltmeter & Temperature display remote control included
  • Input Sensitivity: 6V - 0.2V
  • Signal to Noise Ratio: >92dB
  • Total Harmonic Distortion (T.H.D @ 4ohm): Less than 0.1%
  • Fuse Rating: 80A
  • Length: 12.20"L x 4.87"W x 2.13"H
  • (309.9mm x 123.7 x 54.1)

  Download Manual
