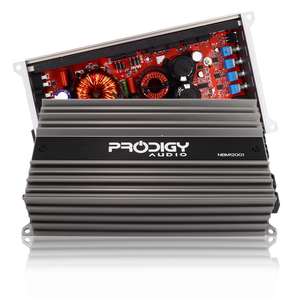

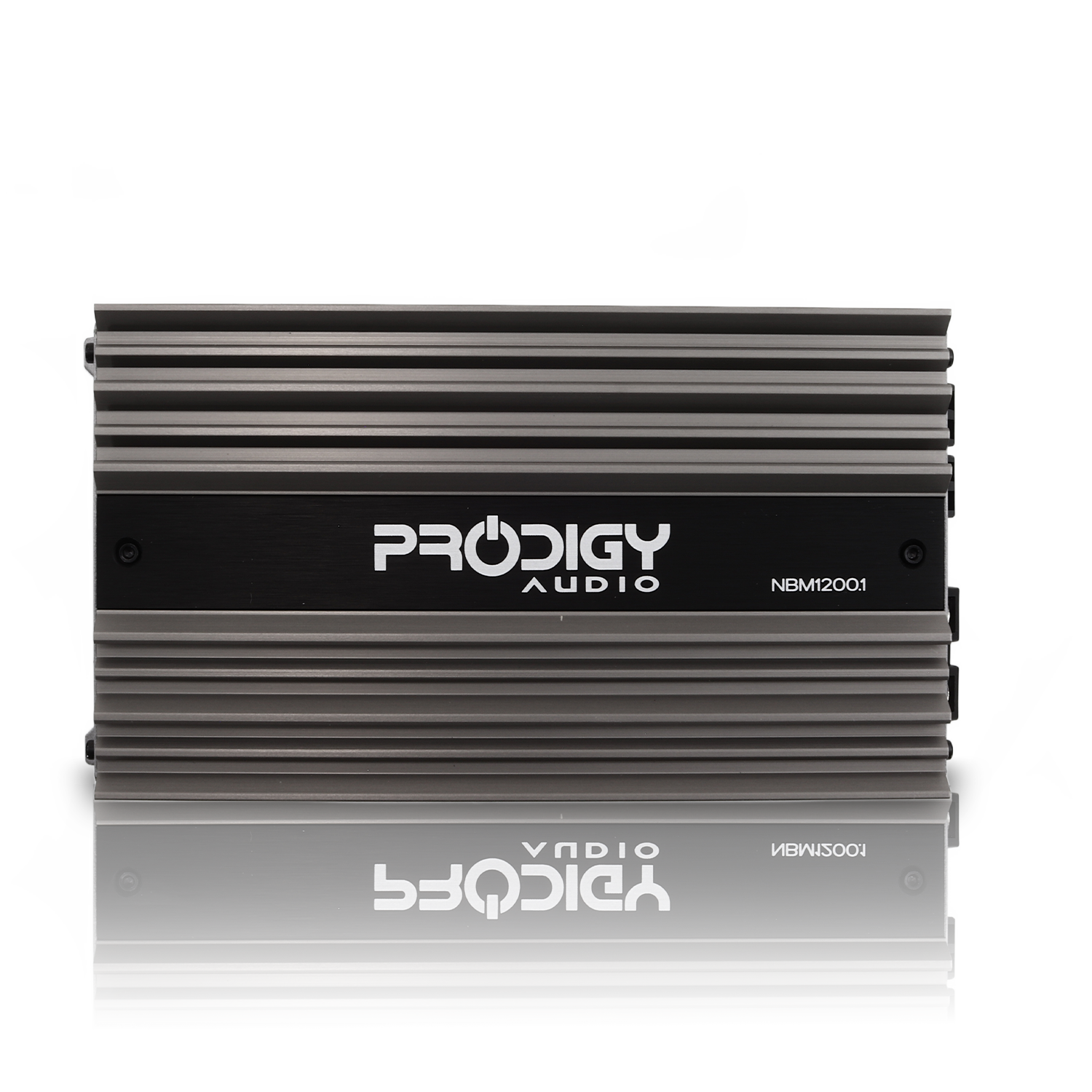

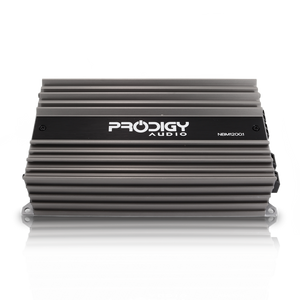

NBM1200.1 1200 Watt Mono Block by Prodigy Audio™

Our South Korea built NBM1200.1, mini 1200 watt mono block amplifier, is the perfect choice for maximum power in minimum space. The bass knob included features are an embossed Noizy Boy logo and monitors Voltage, temperature and clipping, all on the front of the bass knob.

Technical Highlights

• Powerful 1200W RMS power at 1-OHM

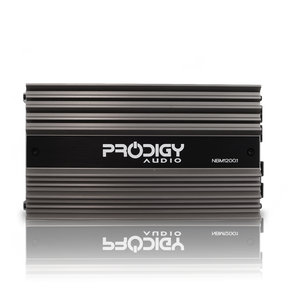

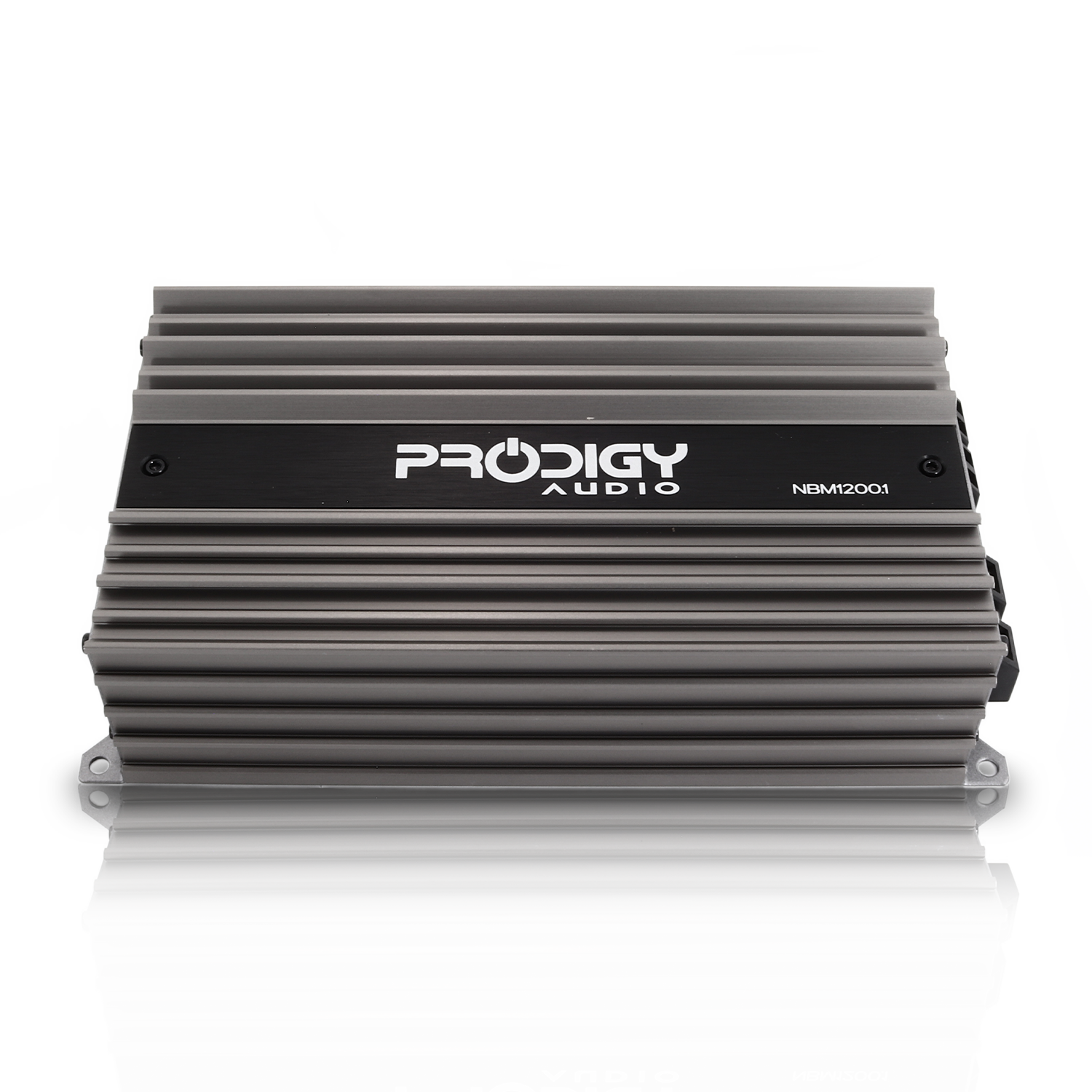

• Timeless design of heatsink. Features tall fins and high mass aluminum for enhanced cooling
• Enhanced Cooling: Upgraded thermal management featuring quiet high-speed cooling fans.
• Designed for powerful small footprint

RMS Power:

• 4 ohm: 550W x 1
• 2 ohm: 950W x 1
• 1 ohm: 1200W x 1

Operating Voltage: 9 to 15.5 Volts

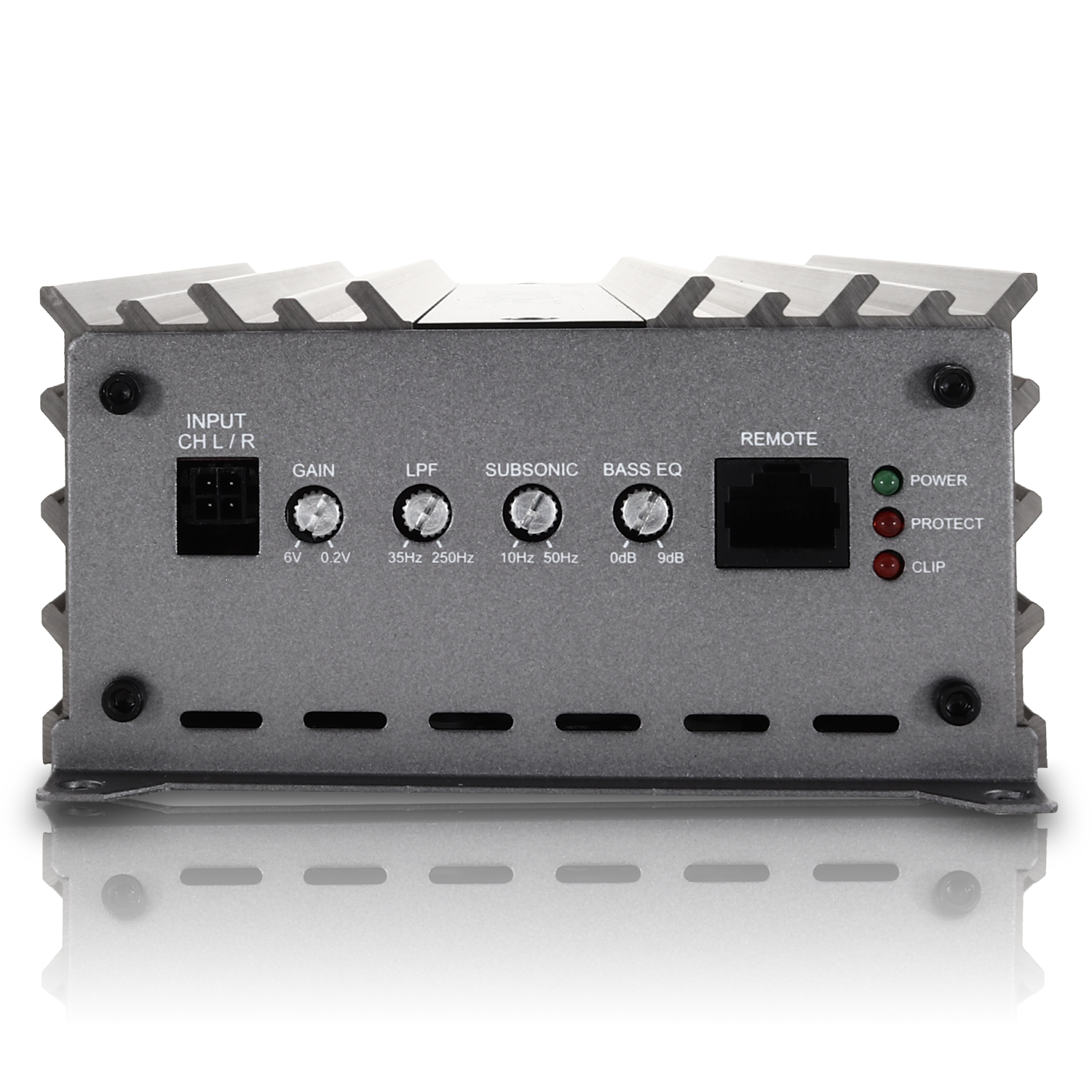

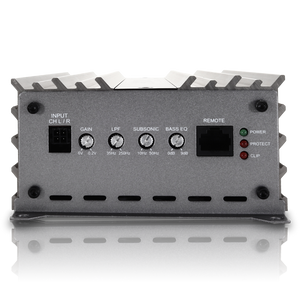

Tuning and Sound:

• Frequency Response: 10Hz - 264Hz
• Low Pass Filter: 35Hz - 250Hz
• Subsonic Filter: 10Hz - 50Hz
• Input Sensitivity: 6V - 0.2V
• Signal to Noise Ratio: >95dB
• Total Harmonic Distortion (T.H.D): <0.1%
• Operating Voltage: 9V - 15.5V
• Fuse Rating: 110A

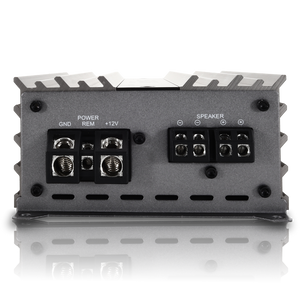

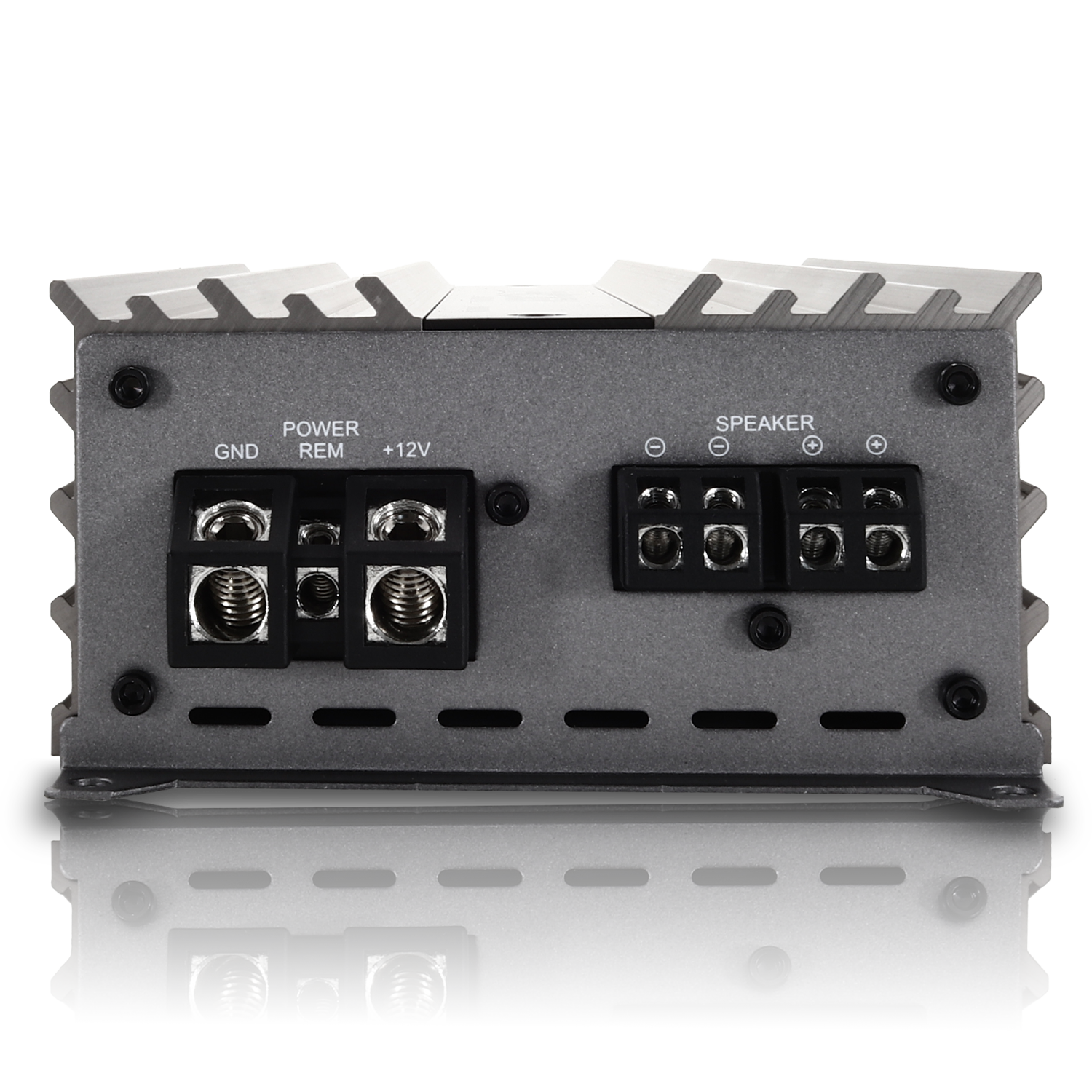

• Speaker Wire Input: Up to 12 gauge
• Power and Ground Input: 4 gauge

Dimensions: 8.26" L x 4.87" H x 2.13" W inches

(210mm x 124mm x 54mm)

Additional Features:

• DIGITAL MONOBLOCK AMPLIFIER: Optimized for bass and stable at a 1-ohm mono load.
• HIGH-SPEED MOSFET POWER SUPPLY: Ensures consistent power delivery.
• VARIABLE LOW PASS FILTER: Customize your bass to suit your preferences.
• VARIABLE SUBSONIC FILTER: Protects your speakers from harmful frequencies.
• 4-WAY PROTECTION CIRCUITS: Includes thermal, high & low voltage, speaker short, and DC protection.

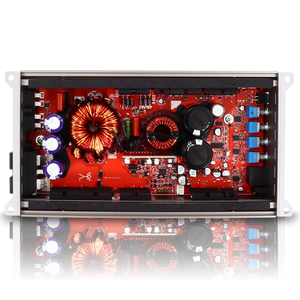

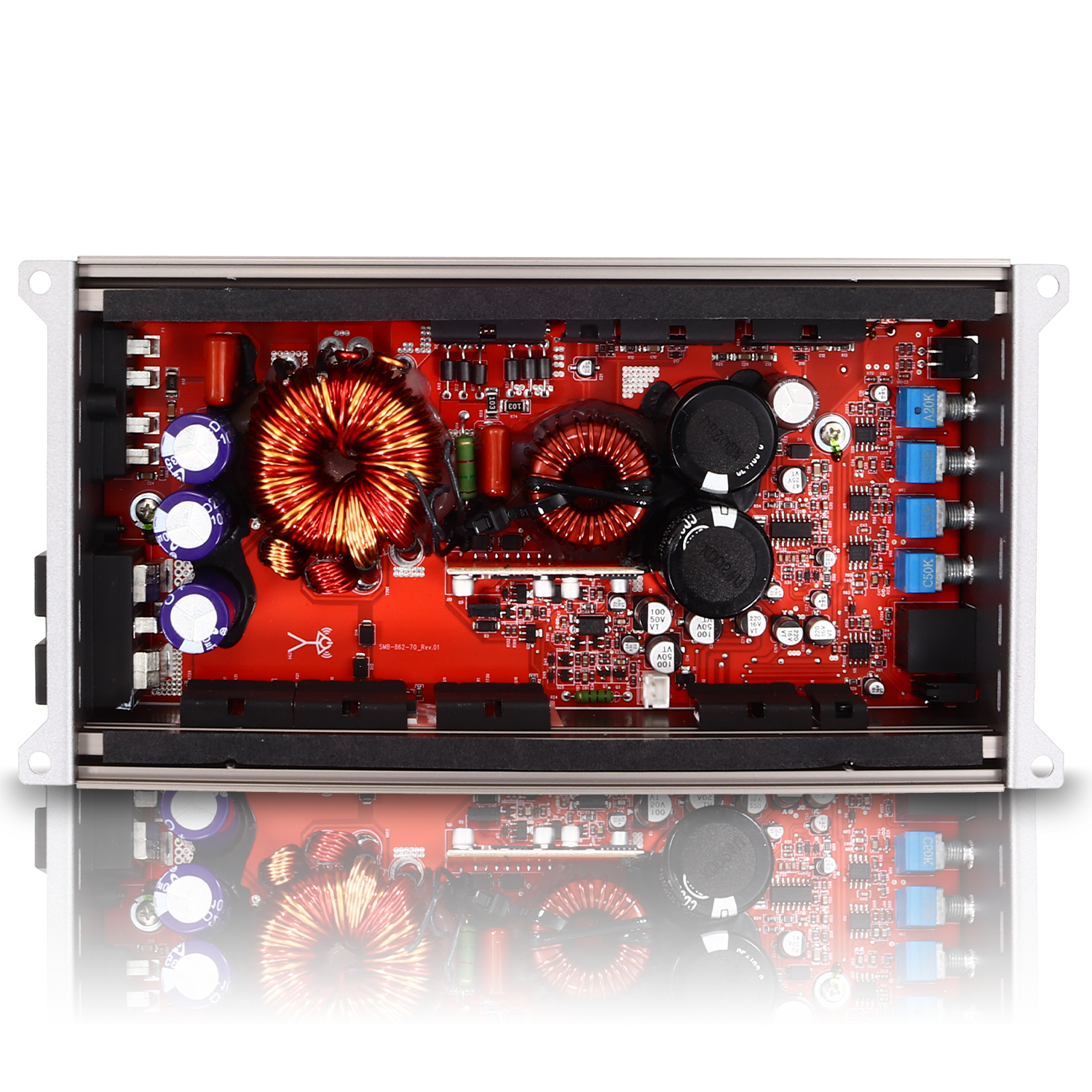

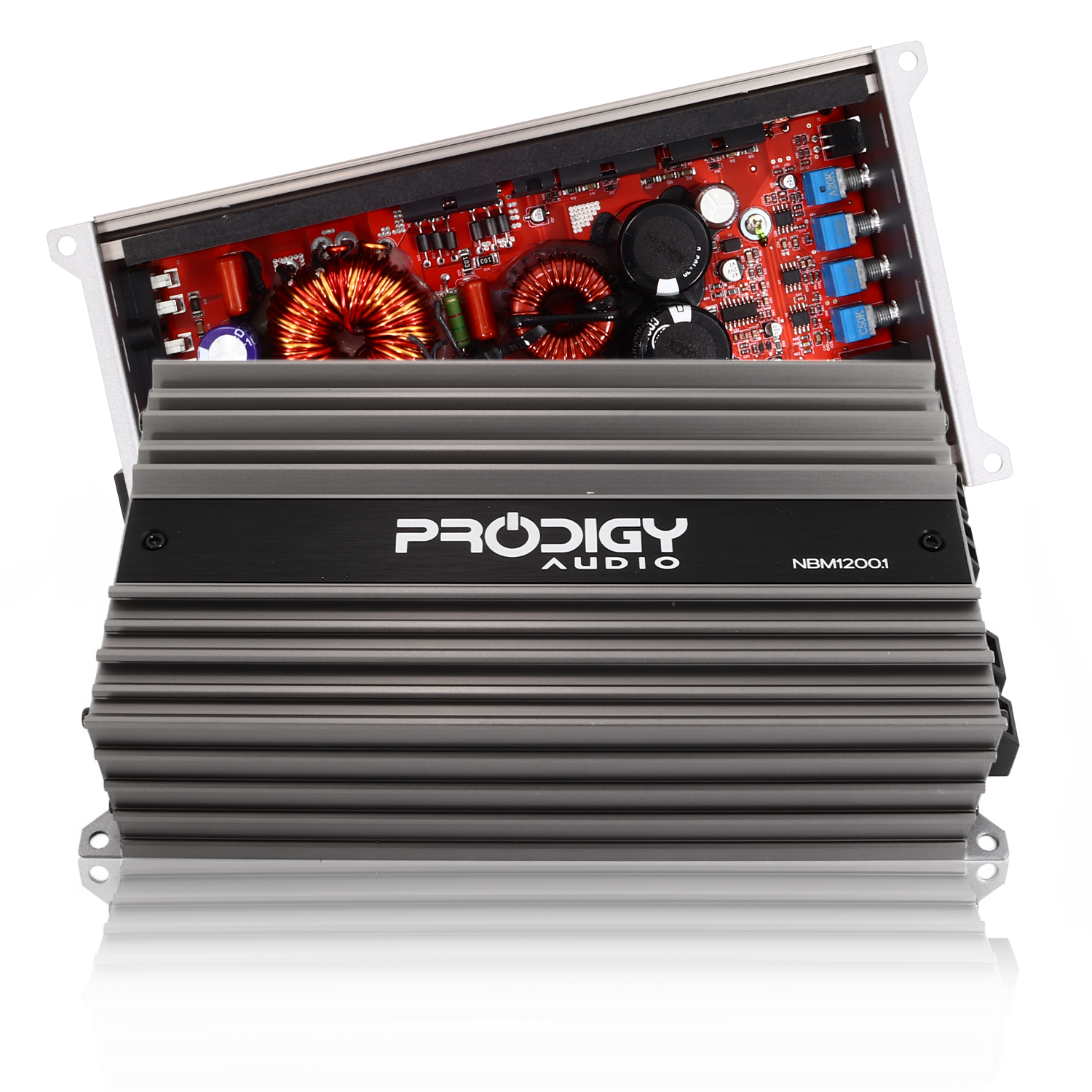

• HIGH PURITY COPPER PRINTED CIRCUIT BOARD: Enhances signal flow and output.
