SSA ZC6000.1 Amplifier

Introducing the all new SSA ZC6000.1 amplifier. Kicking off the new Zcon premium mono block amplifier line up, the ZC6000.1 is an absolute monster mono block to power multiple VERY high power subs with watts to spare. Overbuilt for brute force output for many years to come, the ZC-6000.1 can be in a high power daily driver or demo ride all the way up to serious dedicated SPL competition vehicles. The ZC6000.1 is the If your subs need a tidal wave of power, its time to upgrade to the ZC6000.1. Our first mono block amplifier in our high-end, competition level, Zcon amplifier line. The SSA ZC6000.1 is the no holes barred choice for high power competition subwoofers that need reliable big time power, (SSA Evils for example). Silver surfer looks to match the proven design and components. If you want to turn metal to liquid, #levelup to the all new SSA ZC6000.1 amplifier.

Features

• 1 x 6000 Watts RMS @ 1 Ohm
• Thermally Stable Heat Sink design
  for maximum heat transfer efficiency

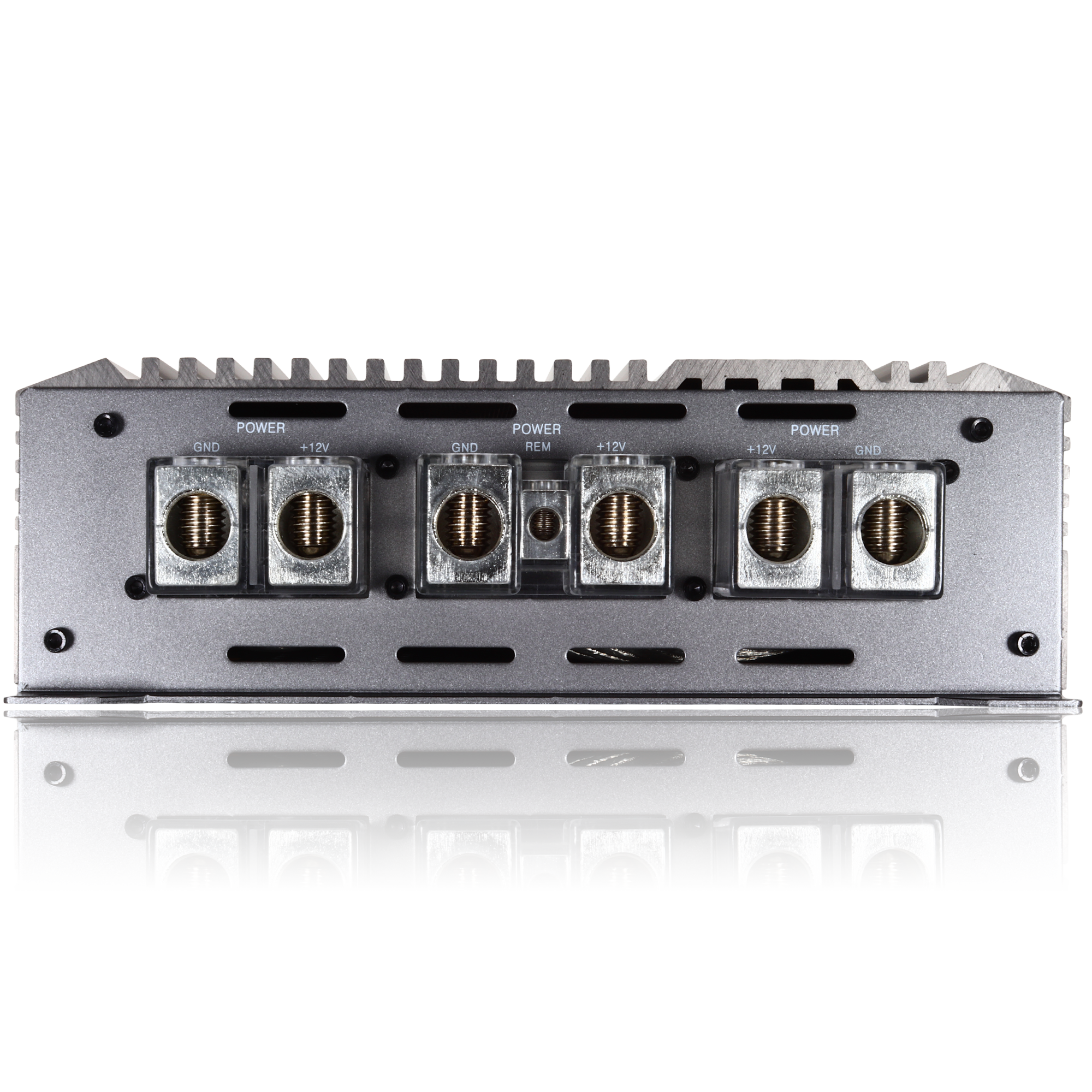

• Extra Large Gauge Terminals for car show
  quality installs

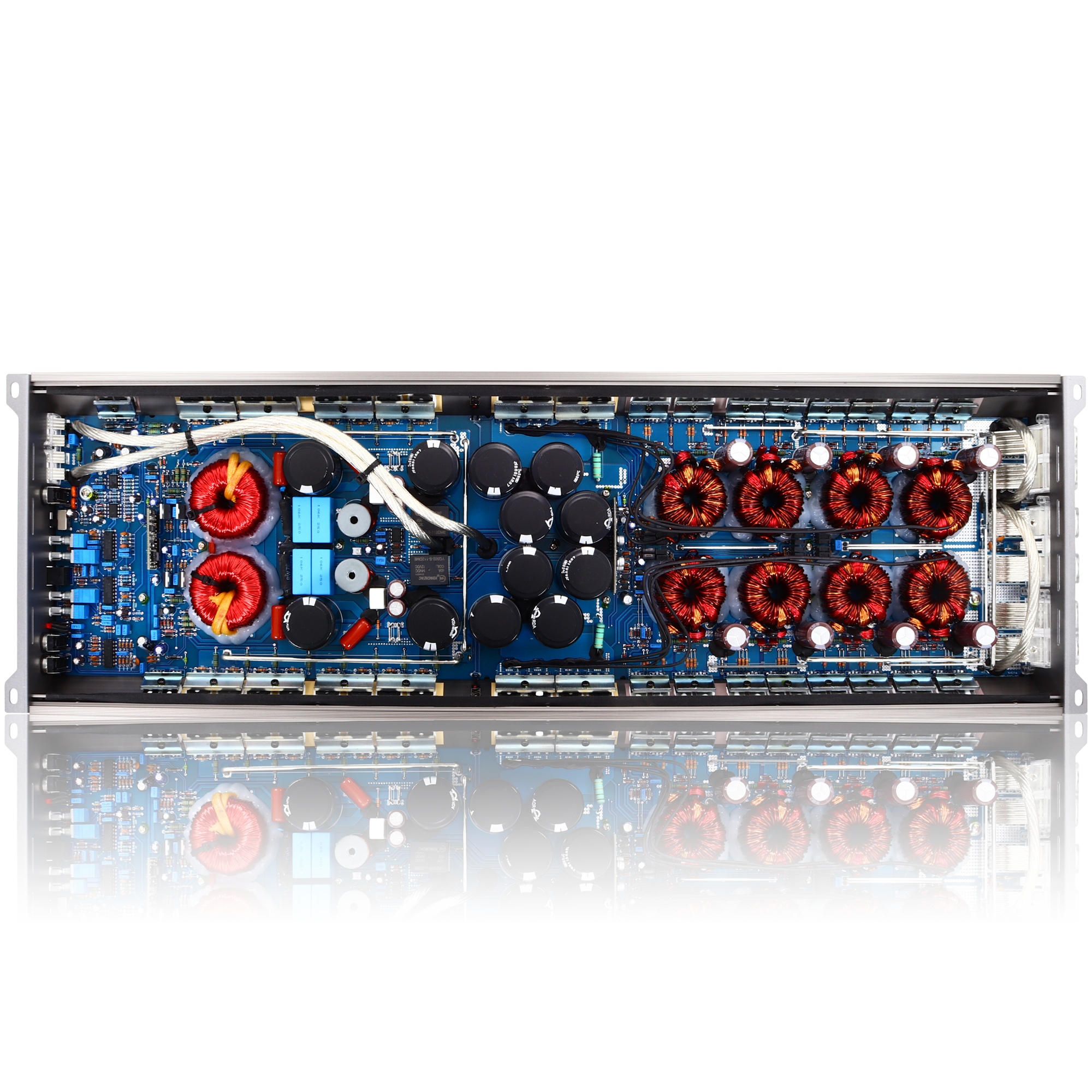

• Extreme Bulk capacitor banks for
  High Power Stability for long periods of time
• Designed with the latest Technology in
  Ultra Efficient Class D design
• Butterworth Crossover Filters for controlled
  high-end performance
• DC, Short Circuit, Thermal and Overload Protection

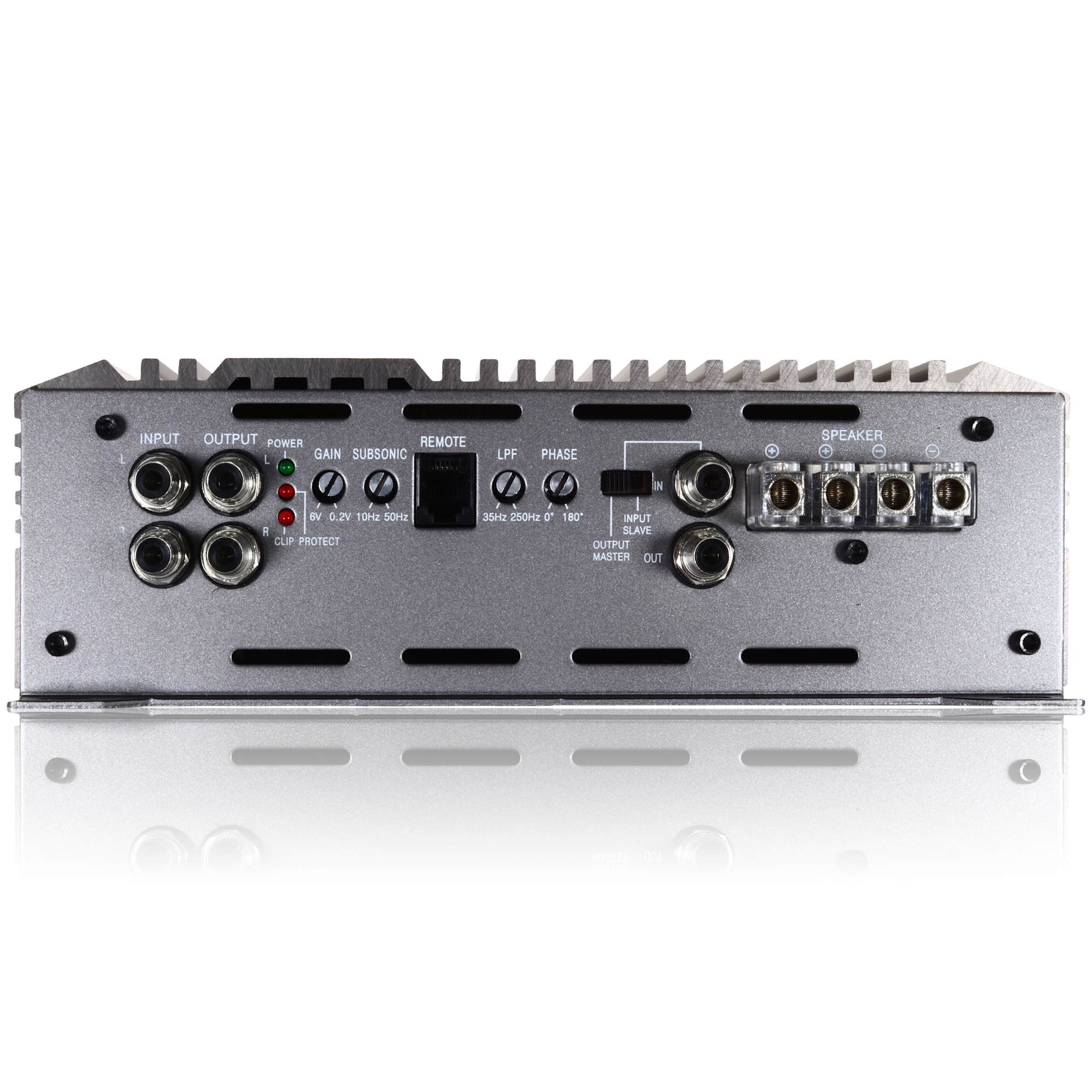

• Diagnostic LEDs
• Clipping LED lights

Specifications

• OUTPUT POWER @ 14.4V input
• RMS Mono @ 1 Ohm 6000 W x 1 CH
• RMS per channel @ 2 Ohms 3000 W x 1 CH
• RMS per channel @ 4 Ohms 1500 W x 1 CH
• RMS Mono @ 1 Ohm 6000 W x 1 CH
• INPUT SENSITIVITY: 200mV - 6.0V
• FREQUENCY RESPONSE: 14Hz - 248Hz +/- 1dB
• THD: LESS THAN 0.5%
• S/N RATIO: > 95 dB
• EFFICIENCY (4ohm @ 100hz): > 95%
• DAMPING FACTOR @100Hz 4 ohm: > 300
• CROSSOVER RANGE:
• Low Pass, 24dB/Octave: 35Hz - 250Hz
• Subsonic: 10Hz - 50Hz
• Variable Bass Boost (0 to +12 dB bass boost at 50 Hz): Yes
• Wired remote bass control included: Yes
• Phase Shift (0 - 180 degrees): No
• Fusing: NOT INCLUDED: External 570A Required
• Size (L x W x H) in: 27.75 x 8.7 x 2.72
