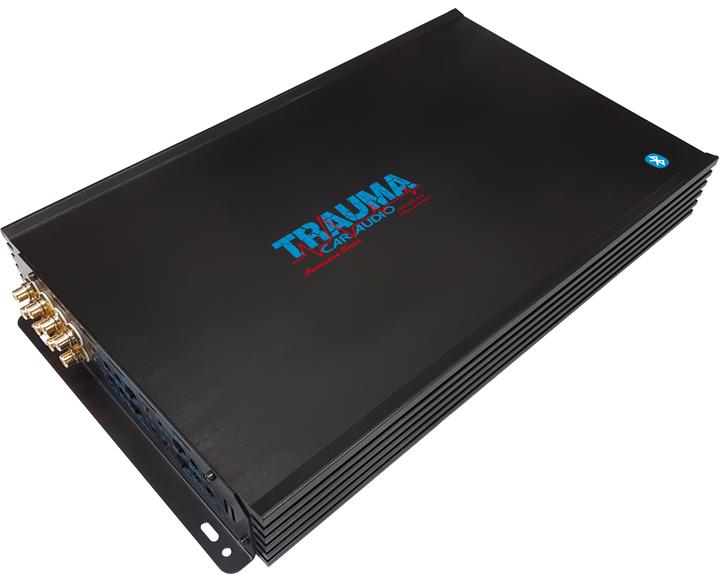

Trauma TCS-100.4ab

Trauma Car AudioIn Stock. Typically ships within 1 Business Day.

SKU: TraumaTCS-100.4ab

In Stock

$309.99 $474.99

Save $165.00

Trauma's high fidelity class ab 4 channel amplifier puts out 100 Watts RMS per channel at 4 ohms and 180 Watts RMS per Channel at 2 ohms at 14.4V. Each channel has independent gain and crossovers. It is built with the highest quality components in the industry to give you the power, SQ and reliability you expect with your purchase.

FEATURES AND SPECS:

AMP MEDICS DESIGN / KOREAN MADE
CLASS AB DESIGN
2 OHM STABLE
BRIDGEABLE OUTPUTS
BASS KNOB
TRI-MODE CAPABLE
INDEPENDENT 4 CHANNEL CROSSOVERS
BLUETOOTH 5.0 RECEIVER
MOSFET PWM (PULSE WIDTH MODULATED) POWER SUPPLY
REVERSE POLARITY PROTECTION
BUILT IN PROTECTION CIRCUITRY
12V TO 16V DC
100W RMS 4 OHM X 4 @ 14.4V
180W RMS 2 OHM X4 @ 14.4V
360W RMS (BRIDGED) 4 OHM X 2 @ 14.4v
SOFT TURN ON CIRCUIT
VARIABLE INPUT GAIN CONTROL ON EACH CHANNEL
VARIABLE LOW/HI/FULL PASS FILTER ON EACH CHANNEL
VARIABLE LOW/HI PASS FILTER 50HZ-500HZ (500HZ-5kHZ)
FREQUENCY RESPONSE (-3dB) 10HZ-50k HZ
SIGNAL TO NOICE RATIO ('A' WTD) 100dB
CHANNEL SEPARATION 50dB
DAMPING FACTOR 150
4 RCA OUTPUTS PROVIDE FULL RANGE AUDIO
TIFFANY STYLE RCA JACKS
LED POWER INDICATOR ( PURPLE )
PROTECTION INDICATOR ( ORANGE )
BLUETOOTH INDICATOR ( BLUE )
POWER AND GROUND INPUTS 1/0 GA
INLINE FUSE RATING: ( REQUIRED ) 125 AMPS
ADDITIONAL 5MM MOUNTING CLEARANCE FOR IMPROVED AIRFLOW
LENGTH 15.75
WIDTH. 9.75
HEIGHT 2.25

{"id":8573391732985,"title":"Trauma TCS-100.4ab","handle":"trauma-tcs-100-4ab","description":"Trauma's high fidelity class ab 4 channel amplifier puts out 100 Watts RMS per channel at 4 ohms and 180 Watts RMS per Channel at 2 ohms at 14.4V. Each channel has independent gain and crossovers.  It is built with the highest quality components in the industry to give you the power, SQ and reliability you expect with your purchase.\u003cbr\u003e\u003cbr\u003e\n\u003cbr\u003e\n\u003cbr\u003e\n\u003cb\u003eFEATURES AND SPECS:\u003c\/b\u003e\n\u003cbr\u003e\n\u003cul\u003e\n\u003cli\u003eAMP MEDICS DESIGN \/ KOREAN MADE\n\u003c\/li\u003e\n\u003cli\u003eCLASS AB DESIGN\n\u003c\/li\u003e\n\u003cli\u003e2 OHM STABLE\n\u003c\/li\u003e\n\u003cli\u003eBRIDGEABLE OUTPUTS\n\u003c\/li\u003e\n\u003cli\u003eBASS KNOB\n\u003c\/li\u003e\n\u003cli\u003eTRI-MODE CAPABLE\n\u003c\/li\u003e\n\u003cli\u003eINDEPENDENT 4 CHANNEL CROSSOVERS\n\u003c\/li\u003e\n\u003cli\u003eBLUETOOTH 5.0 RECEIVER\n\u003c\/li\u003e\n\u003cli\u003eMOSFET PWM (PULSE WIDTH MODULATED) POWER SUPPLY\n\u003c\/li\u003e\n\u003cli\u003eREVERSE POLARITY PROTECTION\n\u003c\/li\u003e\n\u003cli\u003eBUILT IN PROTECTION CIRCUITRY\n\u003c\/li\u003e\n\u003cli\u003e12V TO 16V DC\n\u003c\/li\u003e\n\u003cli\u003e100W RMS 4 OHM X 4 @ 14.4V \n\u003c\/li\u003e\n\u003cli\u003e180W RMS 2 OHM X4 @ 14.4V\n\u003c\/li\u003e\n\u003cli\u003e360W RMS (BRIDGED) 4 OHM X 2 @ 14.4v \n\u003c\/li\u003e\n\u003cli\u003eSOFT TURN ON CIRCUIT\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE INPUT GAIN CONTROL ON EACH CHANNEL\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE LOW\/HI\/FULL PASS FILTER ON EACH CHANNEL\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE LOW\/HI PASS FILTER 50HZ-500HZ (500HZ-5kHZ)\n\u003c\/li\u003e\n\u003cli\u003eFREQUENCY RESPONSE (-3dB) 10HZ-50k HZ\n\u003c\/li\u003e\n\u003cli\u003eSIGNAL TO NOICE RATIO ('A' WTD) 100dB\n\u003c\/li\u003e\n\u003cli\u003eCHANNEL SEPARATION 50dB\n\u003c\/li\u003e\n\u003cli\u003eDAMPING FACTOR 150\n\u003c\/li\u003e\n\u003cli\u003e4 RCA OUTPUTS PROVIDE FULL RANGE AUDIO\n\u003c\/li\u003e\n\u003cli\u003eTIFFANY STYLE RCA JACKS\n\u003c\/li\u003e\n\u003cli\u003eLED POWER INDICATOR ( PURPLE )\n\u003c\/li\u003e\n\u003cli\u003ePROTECTION INDICATOR ( ORANGE )\n\u003c\/li\u003e\n\u003cli\u003eBLUETOOTH INDICATOR ( BLUE )\n\u003c\/li\u003e\n\u003cli\u003ePOWER AND GROUND INPUTS 1\/0 GA  \n\u003c\/li\u003e\n\u003cli\u003eINLINE FUSE RATING: ( REQUIRED ) 125 AMPS\n\u003c\/li\u003e\n\u003cli\u003eADDITIONAL 5MM MOUNTING CLEARANCE FOR IMPROVED AIRFLOW\n\u003c\/li\u003e\n\u003cli\u003eLENGTH 15.75\n\u003c\/li\u003e\n\u003cli\u003eWIDTH.  9.75\n\u003c\/li\u003e\n\u003cli\u003eHEIGHT 2.25\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2021-03-07T20:49:10-05:00","created_at":"2024-10-23T20:10:47-04:00","vendor":"Trauma Car Audio","type":"","tags":[],"price":30999,"price_min":30999,"price_max":30999,"available":true,"price_varies":false,"compare_at_price":47499,"compare_at_price_min":47499,"compare_at_price_max":47499,"compare_at_price_varies":false,"variants":[{"id":45619707642105,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"TraumaTCS-100.4ab","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Trauma TCS-100.4ab","public_title":null,"options":["Default Title"],"price":30999,"weight":17237,"compare_at_price":47499,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-1_720x__86724.jpg?v=1729728649","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-2_568x__30437.jpg?v=1729728649","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-3_568x__88080.jpg?v=1729728649","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4abTestreport_568x__77866.jpg?v=1729728649"],"featured_image":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-1_720x__86724.jpg?v=1729728649","options":["Title"],"media":[{"alt":"Trauma TCS-100.4ab","id":36001565442297,"position":1,"preview_image":{"aspect_ratio":1.254,"height":574,"width":720,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-1_720x__86724.jpg?v=1729728649"},"aspect_ratio":1.254,"height":574,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-1_720x__86724.jpg?v=1729728649","width":720},{"alt":"Trauma TCS-100.4ab","id":36001565475065,"position":2,"preview_image":{"aspect_ratio":3.635,"height":156,"width":567,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-2_568x__30437.jpg?v=1729728649"},"aspect_ratio":3.635,"height":156,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-2_568x__30437.jpg?v=1729728649","width":567},{"alt":"Trauma TCS-100.4ab","id":36001565507833,"position":3,"preview_image":{"aspect_ratio":3.688,"height":154,"width":568,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-3_568x__88080.jpg?v=1729728649"},"aspect_ratio":3.688,"height":154,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4ab-3_568x__88080.jpg?v=1729728649","width":568},{"alt":"Trauma TCS-100.4ab","id":36001565540601,"position":4,"preview_image":{"aspect_ratio":0.773,"height":735,"width":568,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4abTestreport_568x__77866.jpg?v=1729728649"},"aspect_ratio":0.773,"height":735,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/TCS-100.4abTestreport_568x__77866.jpg?v=1729728649","width":568}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"Trauma's high fidelity class ab 4 channel amplifier puts out 100 Watts RMS per channel at 4 ohms and 180 Watts RMS per Channel at 2 ohms at 14.4V. Each channel has independent gain and crossovers.  It is built with the highest quality components in the industry to give you the power, SQ and reliability you expect with your purchase.\u003cbr\u003e\u003cbr\u003e\n\u003cbr\u003e\n\u003cbr\u003e\n\u003cb\u003eFEATURES AND SPECS:\u003c\/b\u003e\n\u003cbr\u003e\n\u003cul\u003e\n\u003cli\u003eAMP MEDICS DESIGN \/ KOREAN MADE\n\u003c\/li\u003e\n\u003cli\u003eCLASS AB DESIGN\n\u003c\/li\u003e\n\u003cli\u003e2 OHM STABLE\n\u003c\/li\u003e\n\u003cli\u003eBRIDGEABLE OUTPUTS\n\u003c\/li\u003e\n\u003cli\u003eBASS KNOB\n\u003c\/li\u003e\n\u003cli\u003eTRI-MODE CAPABLE\n\u003c\/li\u003e\n\u003cli\u003eINDEPENDENT 4 CHANNEL CROSSOVERS\n\u003c\/li\u003e\n\u003cli\u003eBLUETOOTH 5.0 RECEIVER\n\u003c\/li\u003e\n\u003cli\u003eMOSFET PWM (PULSE WIDTH MODULATED) POWER SUPPLY\n\u003c\/li\u003e\n\u003cli\u003eREVERSE POLARITY PROTECTION\n\u003c\/li\u003e\n\u003cli\u003eBUILT IN PROTECTION CIRCUITRY\n\u003c\/li\u003e\n\u003cli\u003e12V TO 16V DC\n\u003c\/li\u003e\n\u003cli\u003e100W RMS 4 OHM X 4 @ 14.4V \n\u003c\/li\u003e\n\u003cli\u003e180W RMS 2 OHM X4 @ 14.4V\n\u003c\/li\u003e\n\u003cli\u003e360W RMS (BRIDGED) 4 OHM X 2 @ 14.4v \n\u003c\/li\u003e\n\u003cli\u003eSOFT TURN ON CIRCUIT\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE INPUT GAIN CONTROL ON EACH CHANNEL\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE LOW\/HI\/FULL PASS FILTER ON EACH CHANNEL\n\u003c\/li\u003e\n\u003cli\u003eVARIABLE LOW\/HI PASS FILTER 50HZ-500HZ (500HZ-5kHZ)\n\u003c\/li\u003e\n\u003cli\u003eFREQUENCY RESPONSE (-3dB) 10HZ-50k HZ\n\u003c\/li\u003e\n\u003cli\u003eSIGNAL TO NOICE RATIO ('A' WTD) 100dB\n\u003c\/li\u003e\n\u003cli\u003eCHANNEL SEPARATION 50dB\n\u003c\/li\u003e\n\u003cli\u003eDAMPING FACTOR 150\n\u003c\/li\u003e\n\u003cli\u003e4 RCA OUTPUTS PROVIDE FULL RANGE AUDIO\n\u003c\/li\u003e\n\u003cli\u003eTIFFANY STYLE RCA JACKS\n\u003c\/li\u003e\n\u003cli\u003eLED POWER INDICATOR ( PURPLE )\n\u003c\/li\u003e\n\u003cli\u003ePROTECTION INDICATOR ( ORANGE )\n\u003c\/li\u003e\n\u003cli\u003eBLUETOOTH INDICATOR ( BLUE )\n\u003c\/li\u003e\n\u003cli\u003ePOWER AND GROUND INPUTS 1\/0 GA  \n\u003c\/li\u003e\n\u003cli\u003eINLINE FUSE RATING: ( REQUIRED ) 125 AMPS\n\u003c\/li\u003e\n\u003cli\u003eADDITIONAL 5MM MOUNTING CLEARANCE FOR IMPROVED AIRFLOW\n\u003c\/li\u003e\n\u003cli\u003eLENGTH 15.75\n\u003c\/li\u003e\n\u003cli\u003eWIDTH.  9.75\n\u003c\/li\u003e\n\u003cli\u003eHEIGHT 2.25\u003c\/li\u003e\n\u003c\/ul\u003e"}

Add to wishlist

Add to compare

Payment Options

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

AMP MEDICS DESIGN / KOREAN MADE
CLASS AB DESIGN
2 OHM STABLE
BRIDGEABLE OUTPUTS
BASS KNOB
TRI-MODE CAPABLE
INDEPENDENT 4 CHANNEL CROSSOVERS
BLUETOOTH 5.0 RECEIVER
MOSFET PWM (PULSE WIDTH MODULATED) POWER SUPPLY
REVERSE POLARITY PROTECTION
BUILT IN PROTECTION CIRCUITRY
12V TO 16V DC
100W RMS 4 OHM X 4 @ 14.4V
180W RMS 2 OHM X4 @ 14.4V
360W RMS (BRIDGED) 4 OHM X 2 @ 14.4v
SOFT TURN ON CIRCUIT
VARIABLE INPUT GAIN CONTROL ON EACH CHANNEL
VARIABLE LOW/HI/FULL PASS FILTER ON EACH CHANNEL
VARIABLE LOW/HI PASS FILTER 50HZ-500HZ (500HZ-5kHZ)
FREQUENCY RESPONSE (-3dB) 10HZ-50k HZ
SIGNAL TO NOICE RATIO ('A' WTD) 100dB
CHANNEL SEPARATION 50dB
DAMPING FACTOR 150
4 RCA OUTPUTS PROVIDE FULL RANGE AUDIO
TIFFANY STYLE RCA JACKS
LED POWER INDICATOR ( PURPLE )
PROTECTION INDICATOR ( ORANGE )
BLUETOOTH INDICATOR ( BLUE )
POWER AND GROUND INPUTS 1/0 GA
INLINE FUSE RATING: ( REQUIRED ) 125 AMPS
ADDITIONAL 5MM MOUNTING CLEARANCE FOR IMPROVED AIRFLOW
LENGTH 15.75
WIDTH. 9.75
HEIGHT 2.25
