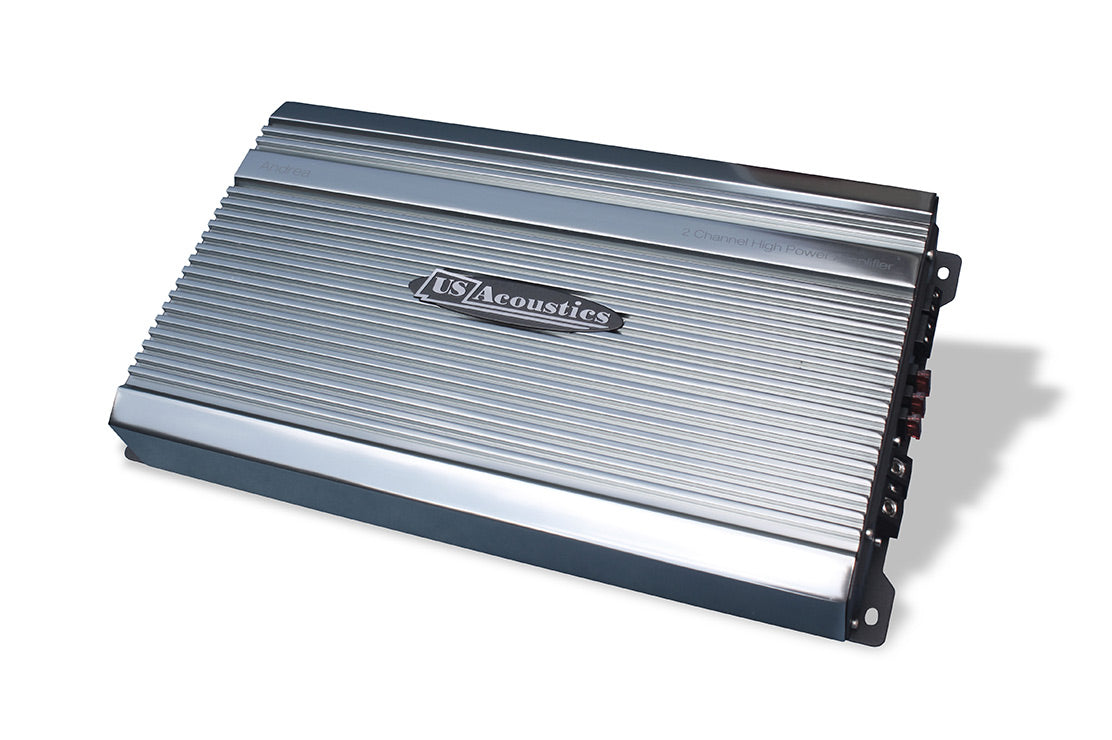

US Acoustics "Andrea" Class A/B 2 Channel Amplifier

US AcousticsIn Stock. Typically ships within 1 Business Day.

SKU: USACOU-Andrea

In Stock

$289.00 $299.00

Save $10.00

Features

2 x 150 Watts RMS @ 4 Ohm
Angled Terminals for show quality installations
Old School Full Complimentary low distortion Class AB design
Butterworth Crossover Filters for serious
high-end performance
Docking Pads® to reduce vibration and
extend the life of your amplifier
DC, Short Circuit, Thermal and
Overload Protection
Diagnostic LEDs

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms	150 W x 2 CH
RMS per channel at 2 Ohms	250 W x 2 CH
RMS Bridged Mono at 4 Ohms	500 x 1 CH
RMS Mono at 1 Ohm	N/A
INPUT SENSITIVITY	200mV - 6.0V
FREQUENCY RESPONSE	10Hz - 30KHz +/- 0.5dB
THD	LESS THAN 0.01%
S/N RATIO	>103 dB
CHANNEL SEPARATION	> 91 dB

DAMPING FACTOR @100Hz 4 ohm	> 200
CROSSOVER RANGE	CH 1&2
High Pass, 12dB/Octave	80-1200 Hz,
Low Pass, 24dB/Octave	10-250 Hz
Subsonic	N/A
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)	Yes
Wired remote bass control included	No
Phase Shift (0 - 180 degrees)	No
Fusing	3 x 35A
Size (L x W x H) in	16.4 x 8.9 x 2.2
