US Acoustics "Big Ben" Class D 3500W Mono Block Amplifier

US AcousticsIn Stock. Typically ships within 1 Business Day.

SKU: USACOU-Big Ben

In Stock

$899.00

Features

1 x 3500 Watts RMS @ 1 Ohm
Thermally Stable Heat Sink design
for maximum heat transfer efficiency
Extra Large Gauge Terminals for show
quality installations

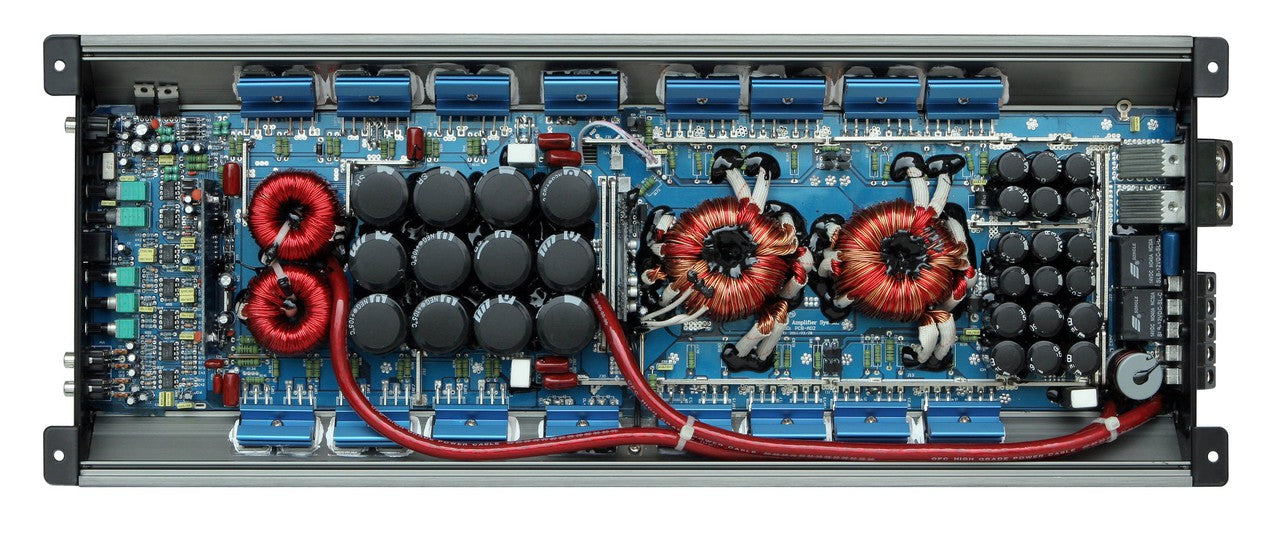

Extreme Bulk capacitor banks for
High Power Stability
Designed with the latest Technology in
Ultra Efficient Class D design
Butterworth Crossover Filters for serious
high-end performance
Docking Pads® to reduce vibration and
extend the life of your amplifier
DC, Short Circuit, Thermal and Overload Protection
Diagnostic LEDs

2 Year Warranty

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms	875 W x 1 CH
RMS per channel at 2 Ohms	1750 W x 1 CH
RMS Bridged Mono at 4 Ohms	N/A
RMS Mono at 1 Ohm	3500 W x 1 CH
INPUT SENSITIVITY	200mV - 6.0V
FREQUENCY RESPONSE	10Hz - 250Hz +/- 0.5dB
THD	LESS THAN 0.5%
S/N RATIO	> 107 dB
CHANNEL SEPARATION	N/A

DAMPING FACTOR @100Hz 4 ohm	> 350
CROSSOVER RANGE
High Pass, 12dB/Octave	N/A
Low Pass, 24dB/Octave	10Hz - 250Hz
Subsonic	15Hz - 55Hz
Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)	Yes
Wired remote bass control included	Yes
Phase Shift (0 - 180 degrees)	Yes
Fusing (not supplied)	External 300A
Size (L x W x H) in	24.6 x 8.4 x 2.2
