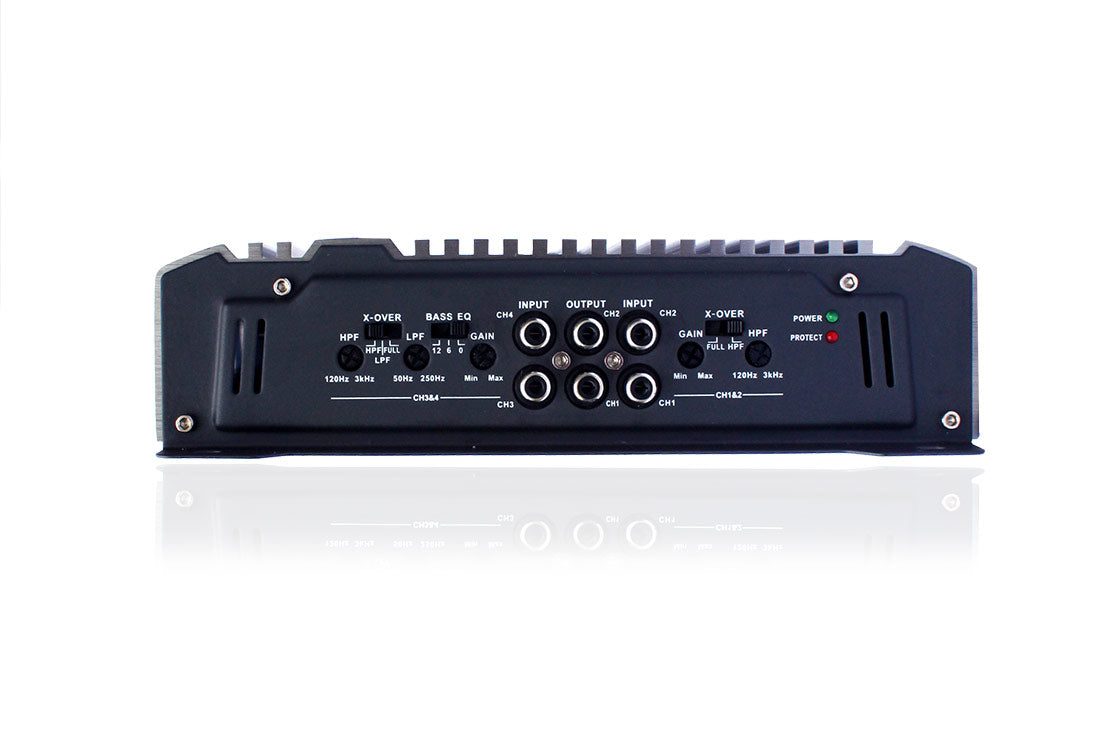

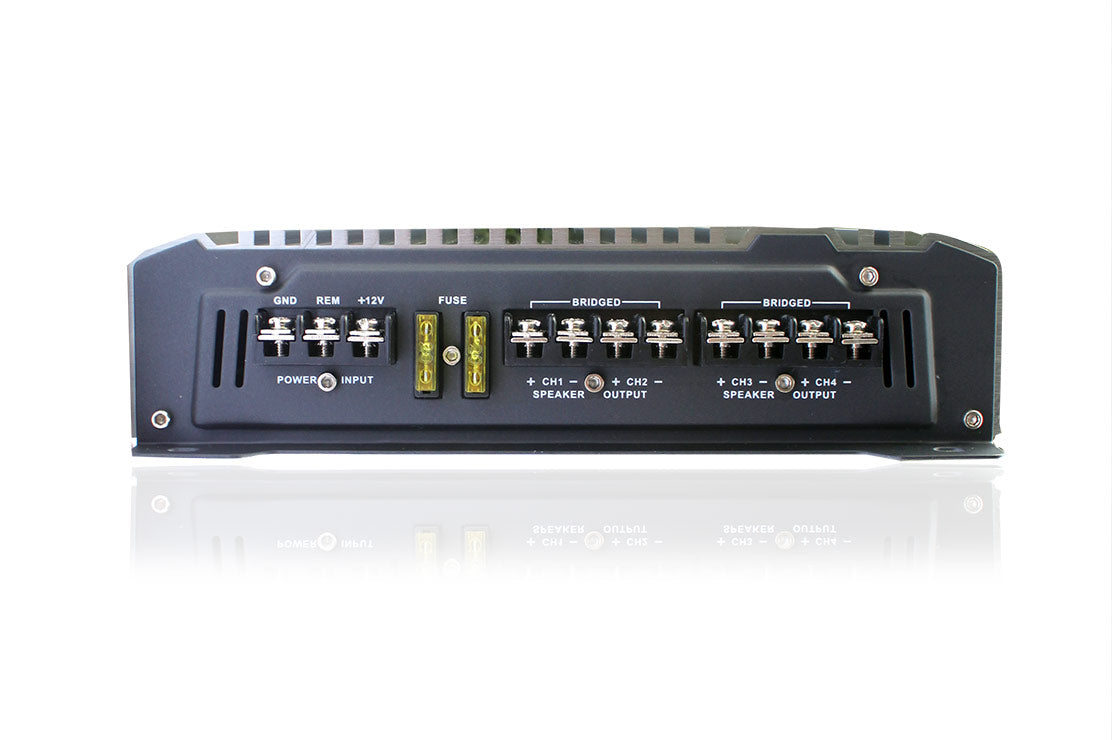

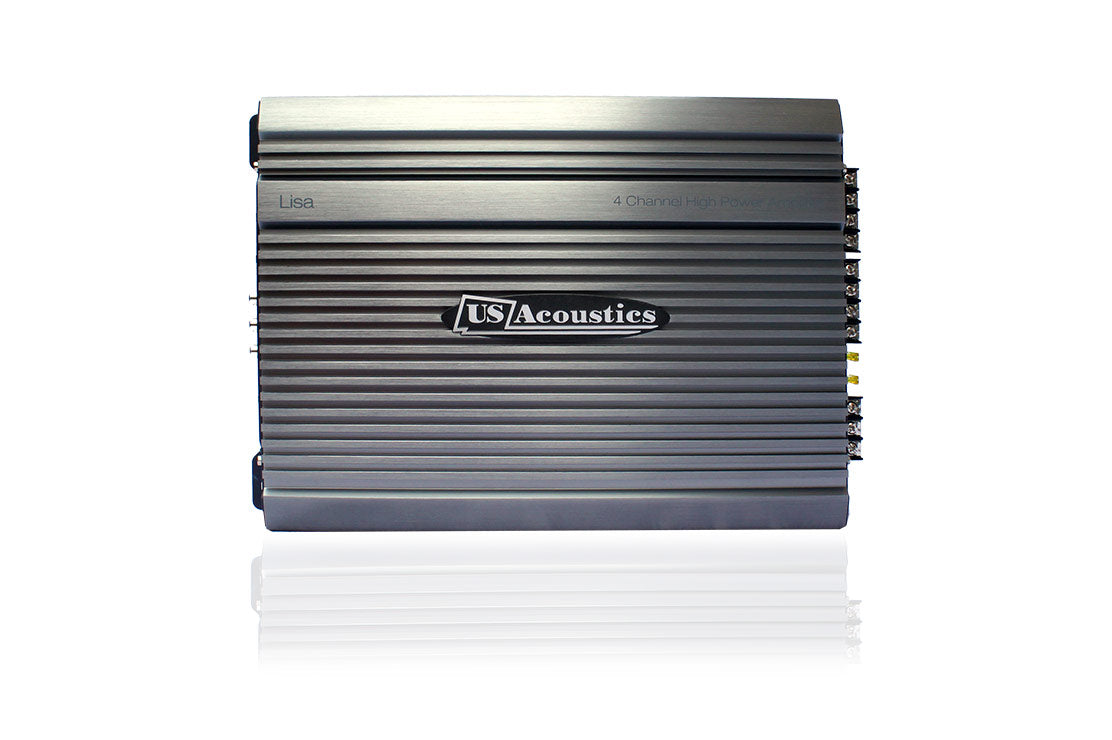

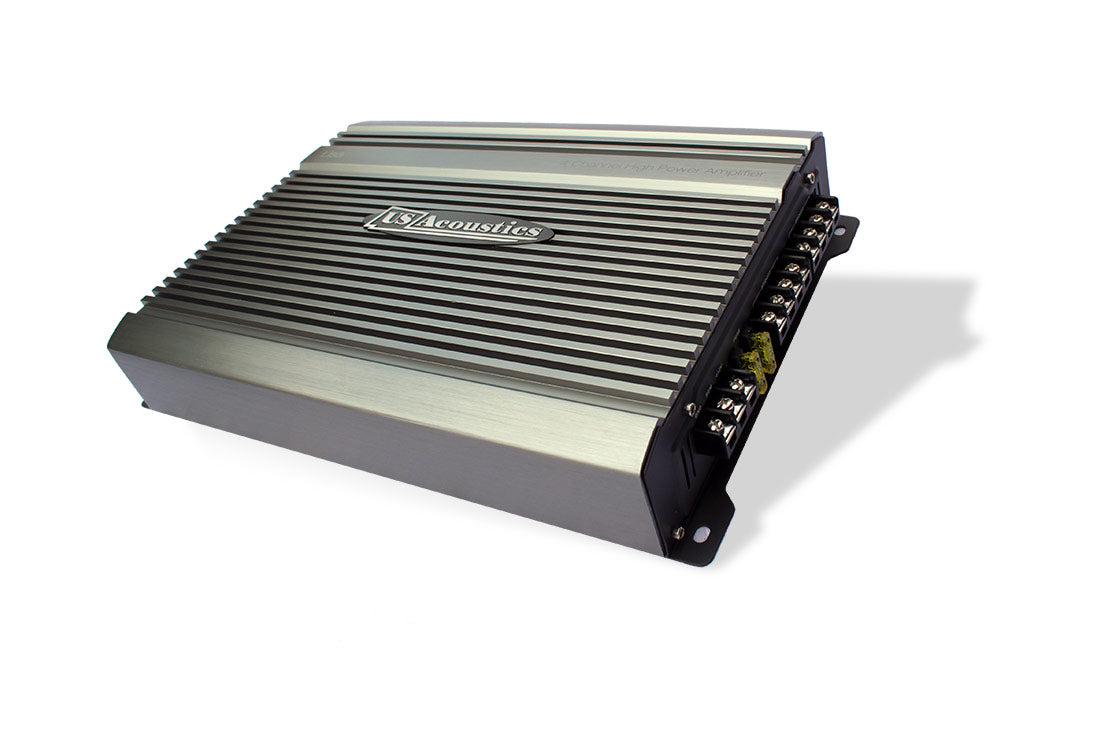

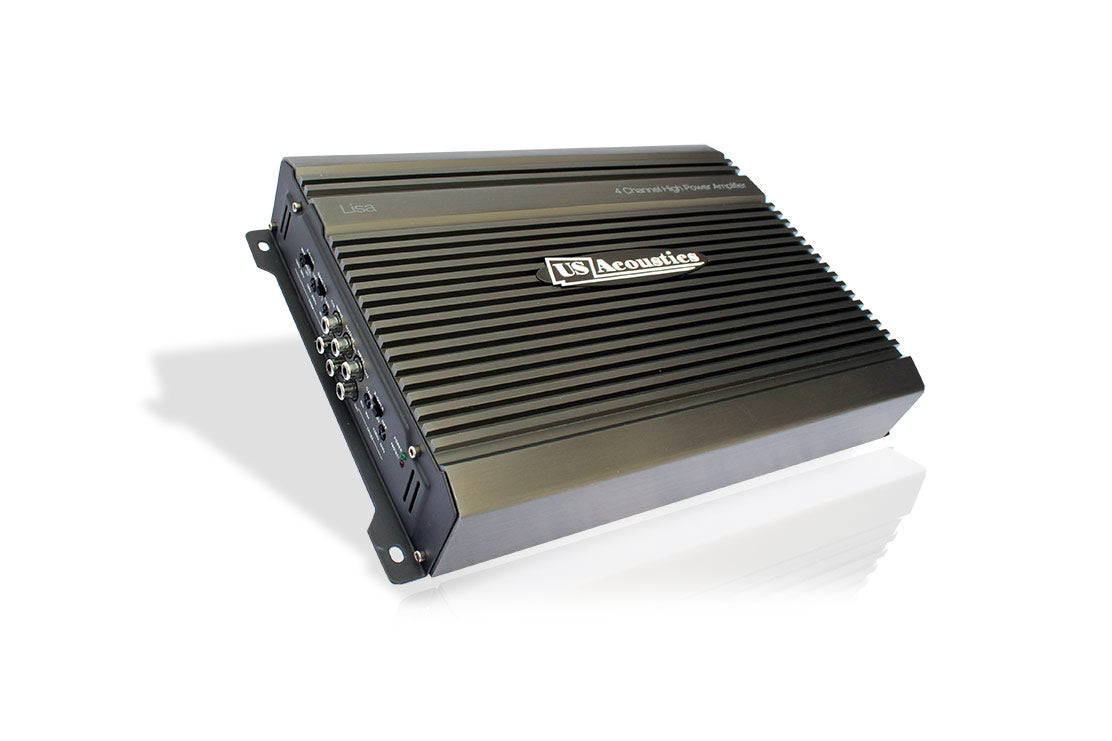

US Acoustics "Lisa" Class A/B 4 Channel Amplifier

US AcousticsIn Stock. Typically ships within 1 Business Day.

SKU: USACOU-Lisa

In Stock

$159.00

Features

4 x 50 Watts RMS @ 4 Ohm
Angled Terminals for show quality installations
Old School Full Complimentary low distortion Class AB design
Butterworth Crossover Filters for serious
high-end performance
Docking Pads® to reduce vibration and
extend the life of your amplifier
DC, Short Circuit, Thermal and
Overload Protection
Diagnostic LEDs

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms	50 W x 4 CH
RMS per channel at 2 Ohms	85 W x 4 CH
RMS Bridged Mono at 4 Ohms	170 x 2 CH
RMS Mono at 1 Ohm	N/A
INPUT SENSITIVITY	200mV - 6.0V
FREQUENCY RESPONSE	10Hz - 30KHz +/- 0.5dB
THD	LESS THAN 0.01%
S/N RATIO	> 95 dB
CHANNEL SEPARATION	> 85 dB

DAMPING FACTOR @100Hz 4 ohm	> 100
CROSSOVER RANGE	CH 3&4, CH 1&2
High Pass, 12dB/Octave	15-500 Hz, 50-3K Hz
Low Pass, 24dB/Octave	55-3.5K Hz
Subsonic	N/A
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)	No
Wired remote bass control included	No
Phase Shift (0 - 180 degrees)	No
Fusing	2 x 25A
Size (L x W x H) in	12.4 x 8.9 x 2.2

{"id":8573328130297,"title":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","handle":"us-acoustics-lisa-4-x-50-watt-amplifier","description":"\u003cp\u003e\u003cspan style=\"font-size: large;\"\u003e\u003cstrong\u003eFeatures\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e \u003cul\u003e \u003cli\u003e4 x 50 Watts RMS @ 4 Ohm\u003c\/li\u003e \u003cli\u003eAngled Terminals for show quality installations\u003c\/li\u003e \u003cli\u003eOld School Full Complimentary low distortion Class AB design\u003c\/li\u003e \u003cli\u003eButterworth Crossover Filters for serious \u003cbr\u003ehigh-end performance\u003c\/li\u003e \u003cli\u003eDocking Pads® to reduce vibration and \u003cbr\u003eextend the life of your amplifier\u003c\/li\u003e \u003cli\u003eDC, Short Circuit, Thermal and \u003cbr\u003eOverload Protection\u003c\/li\u003e \u003cli\u003eDiagnostic LEDs\u003c\/li\u003e \u003c\/ul\u003e \u003ch2\u003eSpecifications\u003c\/h2\u003e \u003cdiv class=\"specs\"\u003e \u003ctable style=\"width: 377px;\" border=\"1\" cellspacing=\"0\" cellpadding=\"15\"\u003e \u003ctbody\u003e \u003ctr\u003e \u003ctd width=\"175\"\u003eOUTPUT POWER @ 14.4V input\u003c\/td\u003e \u003ctd width=\"136\"\u003e\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS per channel at 4 Ohms\u003c\/td\u003e \u003ctd\u003e50 W x 4 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS per channel at 2 Ohms\u003c\/td\u003e \u003ctd\u003e85 W x 4 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS Bridged Mono at 4 Ohms\u003c\/td\u003e \u003ctd\u003e170 x 2 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS Mono at 1 Ohm\u003c\/td\u003e \u003ctd\u003eN\/A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eINPUT SENSITIVITY\u003c\/td\u003e \u003ctd\u003e200mV - 6.0V\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eFREQUENCY RESPONSE\u003c\/td\u003e \u003ctd\u003e10Hz - 30KHz +\/- 0.5dB\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eTHD\u003c\/td\u003e \u003ctd\u003eLESS THAN 0.01%\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eS\/N RATIO\u003c\/td\u003e \u003ctd\u003e\u0026gt; 95 dB\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eCHANNEL SEPARATION\u003c\/td\u003e \u003ctd\u003e\u0026gt; 85 dB\u003c\/td\u003e \u003c\/tr\u003e \u003c\/tbody\u003e \u003c\/table\u003e \u003ctable style=\"width: 485px;\" border=\"1\" cellspacing=\"0\" cellpadding=\"15\"\u003e \u003ctbody\u003e \u003ctr\u003e \u003ctd width=\"295\"\u003eDAMPING FACTOR @100Hz 4 ohm\u003c\/td\u003e \u003ctd width=\"123\"\u003e\u0026gt; 100\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eCROSSOVER RANGE\u003c\/td\u003e \u003ctd\u003eCH 3\u0026amp;4, CH 1\u0026amp;2\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eHigh Pass, 12dB\/Octave\u003c\/td\u003e \u003ctd\u003e15-500 Hz, 50-3K Hz\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eLow Pass, 24dB\/Octave\u003c\/td\u003e \u003ctd\u003e55-3.5K Hz\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eSubsonic\u003c\/td\u003e \u003ctd\u003eN\/A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eVariable Bass Boost (0 to +12 dB bass boost at 45 Hz)\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eWired remote bass control included\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003ePhase Shift (0 - 180 degrees)\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eFusing\u003c\/td\u003e \u003ctd\u003e2 x 25A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eSize (L x W x H) in\u003c\/td\u003e \u003ctd\u003e12.4 x 8.9 x 2.2\u003c\/td\u003e \u003c\/tr\u003e \u003c\/tbody\u003e \u003c\/table\u003e \u003c\/div\u003e","published_at":"2015-06-25T13:16:52-04:00","created_at":"2024-10-23T18:42:39-04:00","vendor":"US Acoustics","type":"","tags":["US Acoustics 4 channel amplifier"],"price":15900,"price_min":15900,"price_max":15900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":45619581583609,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"USACOU-Lisa","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","public_title":null,"options":["Default Title"],"price":15900,"weight":6804,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_2_channel_amplifier_us_acoustics__62257.jpg?v=1729723361","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_straight_view_us_acoustics_large__28644.jpg?v=1729723361","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_us_acoustics_large__56662.jpg?v=1729723361","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view1_us_acoustics_large__55492.jpg?v=1729723361","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_angle_view_us_acoustics_large__58957.jpg?v=1729723361","\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view2_us_acoustics_large__96582.jpg?v=1729723361"],"featured_image":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_2_channel_amplifier_us_acoustics__62257.jpg?v=1729723361","options":["Title"],"media":[{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000972964089,"position":1,"preview_image":{"aspect_ratio":1.503,"height":370,"width":556,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_2_channel_amplifier_us_acoustics__62257.jpg?v=1729723361"},"aspect_ratio":1.503,"height":370,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_2_channel_amplifier_us_acoustics__62257.jpg?v=1729723361","width":556},{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000972996857,"position":2,"preview_image":{"aspect_ratio":1.503,"height":740,"width":1112,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_straight_view_us_acoustics_large__28644.jpg?v=1729723361"},"aspect_ratio":1.503,"height":740,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_straight_view_us_acoustics_large__28644.jpg?v=1729723361","width":1112},{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000973029625,"position":3,"preview_image":{"aspect_ratio":1.501,"height":741,"width":1112,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_us_acoustics_large__56662.jpg?v=1729723361"},"aspect_ratio":1.501,"height":741,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_us_acoustics_large__56662.jpg?v=1729723361","width":1112},{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000973062393,"position":4,"preview_image":{"aspect_ratio":1.503,"height":740,"width":1112,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view1_us_acoustics_large__55492.jpg?v=1729723361"},"aspect_ratio":1.503,"height":740,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view1_us_acoustics_large__55492.jpg?v=1729723361","width":1112},{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000973127929,"position":5,"preview_image":{"aspect_ratio":1.501,"height":741,"width":1112,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_angle_view_us_acoustics_large__58957.jpg?v=1729723361"},"aspect_ratio":1.501,"height":741,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_angle_view_us_acoustics_large__58957.jpg?v=1729723361","width":1112},{"alt":"US Acoustics \"Lisa\" Class A\/B 4 Channel Amplifier","id":36000973160697,"position":6,"preview_image":{"aspect_ratio":1.503,"height":740,"width":1112,"src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view2_us_acoustics_large__96582.jpg?v=1729723361"},"aspect_ratio":1.503,"height":740,"media_type":"image","src":"\/\/store.soundsolutionsaudio.com\/cdn\/shop\/files\/lisa_amplifier_side_view2_us_acoustics_large__96582.jpg?v=1729723361","width":1112}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan style=\"font-size: large;\"\u003e\u003cstrong\u003eFeatures\u003c\/strong\u003e\u003c\/span\u003e\u003c\/p\u003e \u003cul\u003e \u003cli\u003e4 x 50 Watts RMS @ 4 Ohm\u003c\/li\u003e \u003cli\u003eAngled Terminals for show quality installations\u003c\/li\u003e \u003cli\u003eOld School Full Complimentary low distortion Class AB design\u003c\/li\u003e \u003cli\u003eButterworth Crossover Filters for serious \u003cbr\u003ehigh-end performance\u003c\/li\u003e \u003cli\u003eDocking Pads® to reduce vibration and \u003cbr\u003eextend the life of your amplifier\u003c\/li\u003e \u003cli\u003eDC, Short Circuit, Thermal and \u003cbr\u003eOverload Protection\u003c\/li\u003e \u003cli\u003eDiagnostic LEDs\u003c\/li\u003e \u003c\/ul\u003e \u003ch2\u003eSpecifications\u003c\/h2\u003e \u003cdiv class=\"specs\"\u003e \u003ctable style=\"width: 377px;\" border=\"1\" cellspacing=\"0\" cellpadding=\"15\"\u003e \u003ctbody\u003e \u003ctr\u003e \u003ctd width=\"175\"\u003eOUTPUT POWER @ 14.4V input\u003c\/td\u003e \u003ctd width=\"136\"\u003e\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS per channel at 4 Ohms\u003c\/td\u003e \u003ctd\u003e50 W x 4 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS per channel at 2 Ohms\u003c\/td\u003e \u003ctd\u003e85 W x 4 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS Bridged Mono at 4 Ohms\u003c\/td\u003e \u003ctd\u003e170 x 2 CH\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eRMS Mono at 1 Ohm\u003c\/td\u003e \u003ctd\u003eN\/A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eINPUT SENSITIVITY\u003c\/td\u003e \u003ctd\u003e200mV - 6.0V\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eFREQUENCY RESPONSE\u003c\/td\u003e \u003ctd\u003e10Hz - 30KHz +\/- 0.5dB\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eTHD\u003c\/td\u003e \u003ctd\u003eLESS THAN 0.01%\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eS\/N RATIO\u003c\/td\u003e \u003ctd\u003e\u0026gt; 95 dB\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eCHANNEL SEPARATION\u003c\/td\u003e \u003ctd\u003e\u0026gt; 85 dB\u003c\/td\u003e \u003c\/tr\u003e \u003c\/tbody\u003e \u003c\/table\u003e \u003ctable style=\"width: 485px;\" border=\"1\" cellspacing=\"0\" cellpadding=\"15\"\u003e \u003ctbody\u003e \u003ctr\u003e \u003ctd width=\"295\"\u003eDAMPING FACTOR @100Hz 4 ohm\u003c\/td\u003e \u003ctd width=\"123\"\u003e\u0026gt; 100\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eCROSSOVER RANGE\u003c\/td\u003e \u003ctd\u003eCH 3\u0026amp;4, CH 1\u0026amp;2\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eHigh Pass, 12dB\/Octave\u003c\/td\u003e \u003ctd\u003e15-500 Hz, 50-3K Hz\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eLow Pass, 24dB\/Octave\u003c\/td\u003e \u003ctd\u003e55-3.5K Hz\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eSubsonic\u003c\/td\u003e \u003ctd\u003eN\/A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eVariable Bass Boost (0 to +12 dB bass boost at 45 Hz)\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eWired remote bass control included\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003ePhase Shift (0 - 180 degrees)\u003c\/td\u003e \u003ctd\u003eNo\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eFusing\u003c\/td\u003e \u003ctd\u003e2 x 25A\u003c\/td\u003e \u003c\/tr\u003e \u003ctr\u003e \u003ctd\u003eSize (L x W x H) in\u003c\/td\u003e \u003ctd\u003e12.4 x 8.9 x 2.2\u003c\/td\u003e \u003c\/tr\u003e \u003c\/tbody\u003e \u003c\/table\u003e \u003c\/div\u003e"}

Add to wishlist

Add to compare

Payment Options

If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, withing 24 hours on weekdays.

Customer service

All questions about your order, return and delivery must be sent to our customer service team by e-mail at yourstore@yourdomain.com

Sale & Press

If you are interested in selling our products, need more information about our brand or wish to make a collaboration, please contact us at press@yourdomain.com

Features

4 x 50 Watts RMS @ 4 Ohm
Angled Terminals for show quality installations
Old School Full Complimentary low distortion Class AB design
Butterworth Crossover Filters for serious
high-end performance
Docking Pads® to reduce vibration and
extend the life of your amplifier
DC, Short Circuit, Thermal and
Overload Protection
Diagnostic LEDs

Specifications

OUTPUT POWER @ 14.4V input
RMS per channel at 4 Ohms	50 W x 4 CH
RMS per channel at 2 Ohms	85 W x 4 CH
RMS Bridged Mono at 4 Ohms	170 x 2 CH
RMS Mono at 1 Ohm	N/A
INPUT SENSITIVITY	200mV - 6.0V
FREQUENCY RESPONSE	10Hz - 30KHz +/- 0.5dB
THD	LESS THAN 0.01%
S/N RATIO	> 95 dB
CHANNEL SEPARATION	> 85 dB

DAMPING FACTOR @100Hz 4 ohm	> 100
CROSSOVER RANGE	CH 3&4, CH 1&2
High Pass, 12dB/Octave	15-500 Hz, 50-3K Hz
Low Pass, 24dB/Octave	55-3.5K Hz
Subsonic	N/A
Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)	No
Wired remote bass control included	No
Phase Shift (0 - 180 degrees)	No
Fusing	2 x 25A
Size (L x W x H) in	12.4 x 8.9 x 2.2
