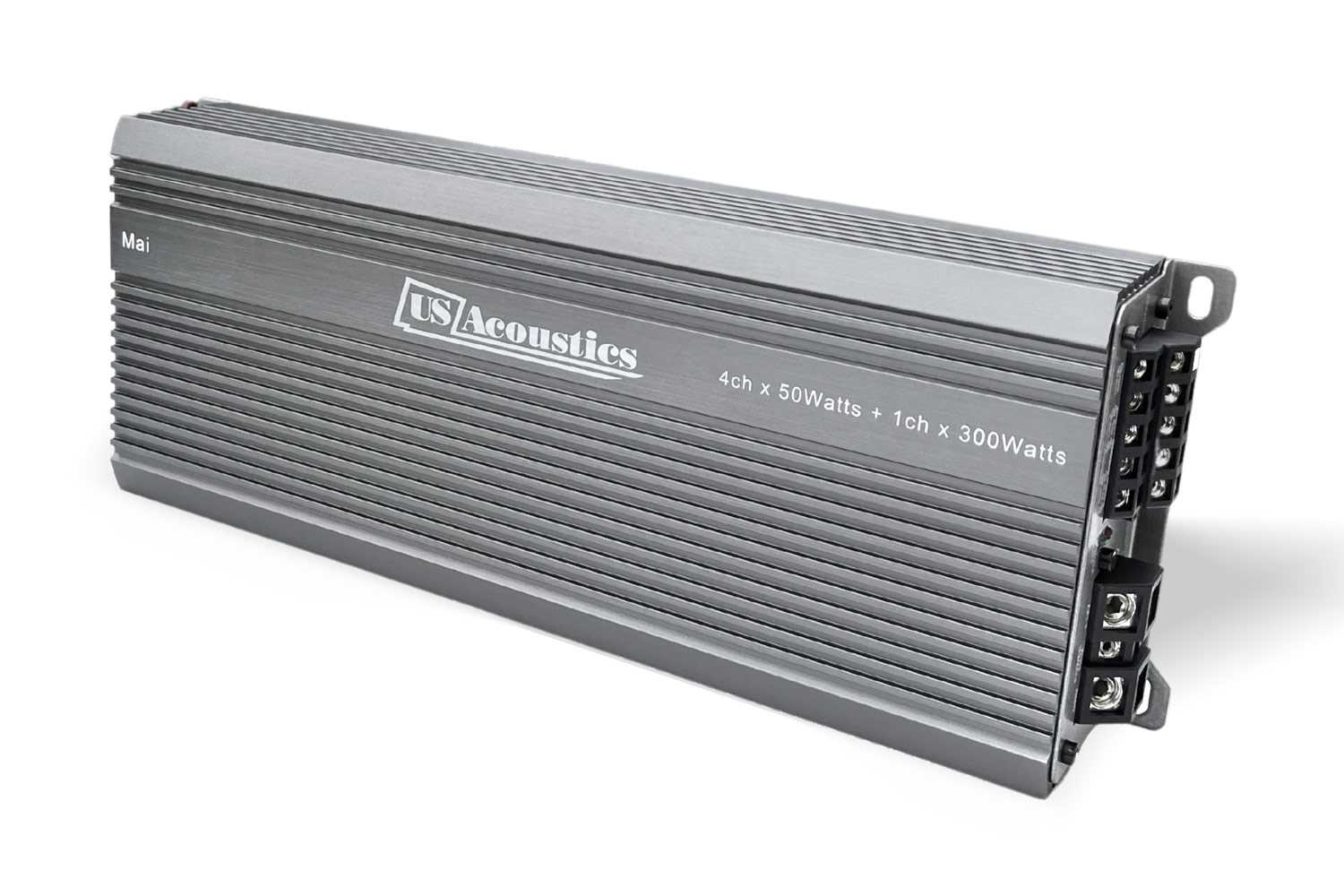

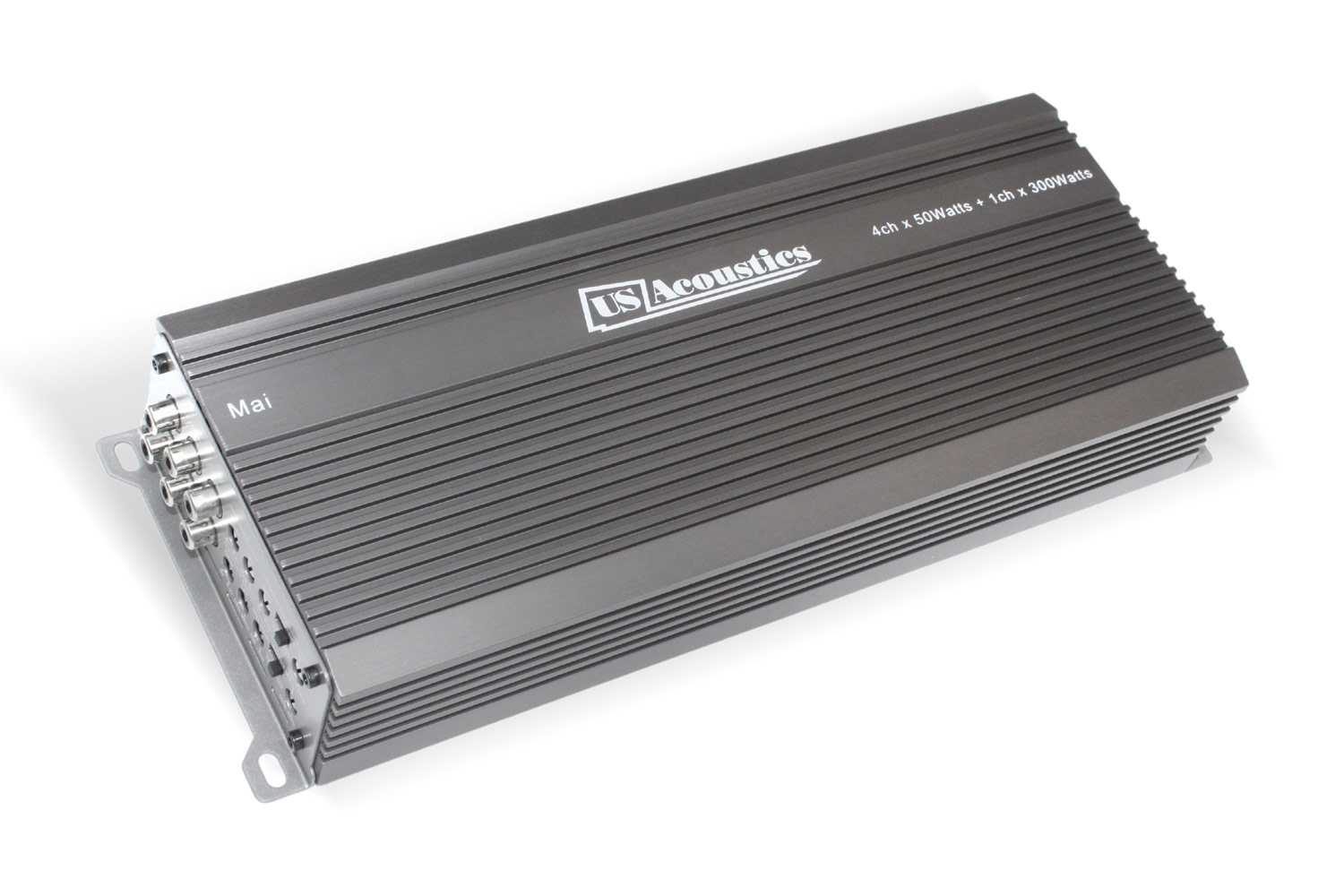

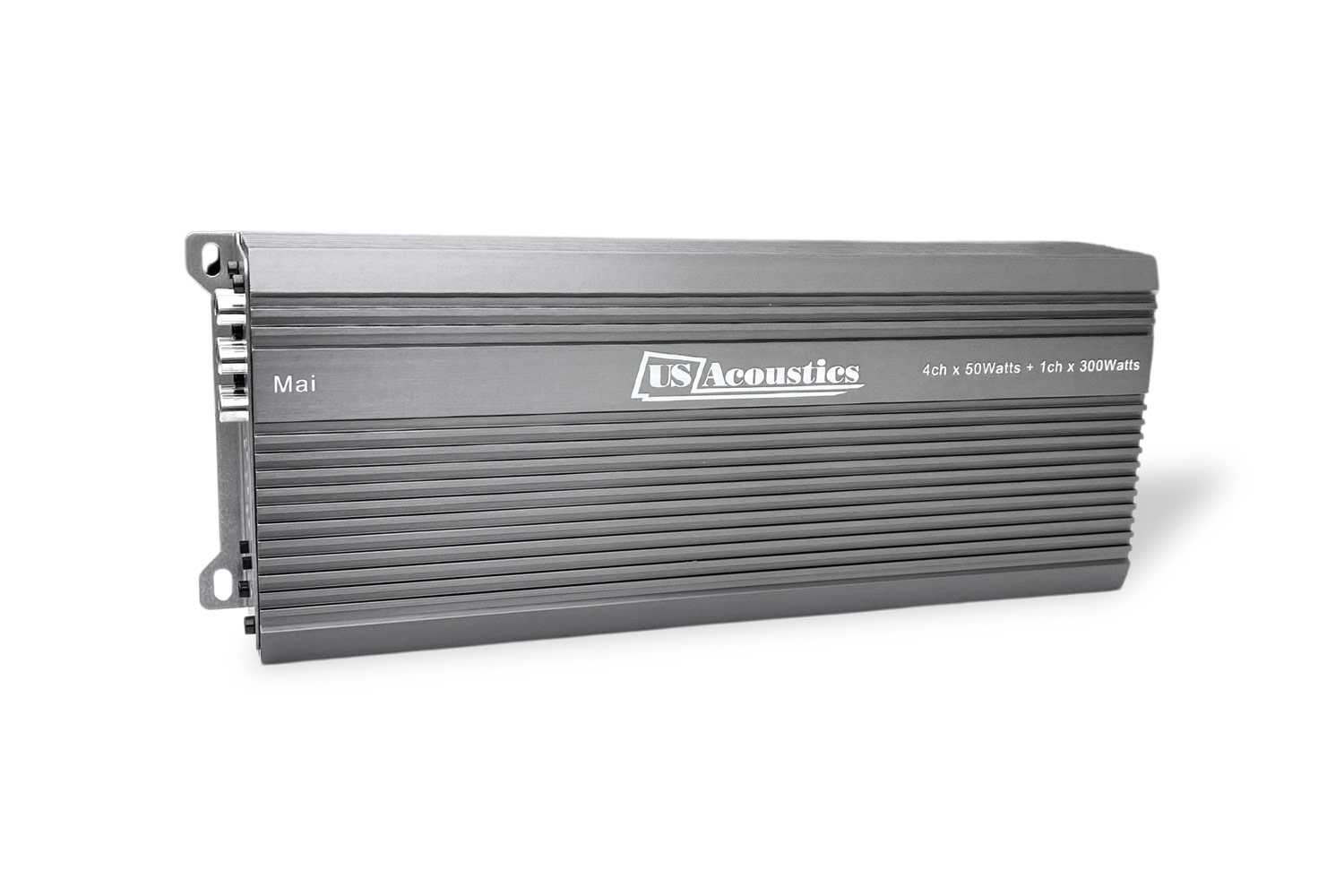

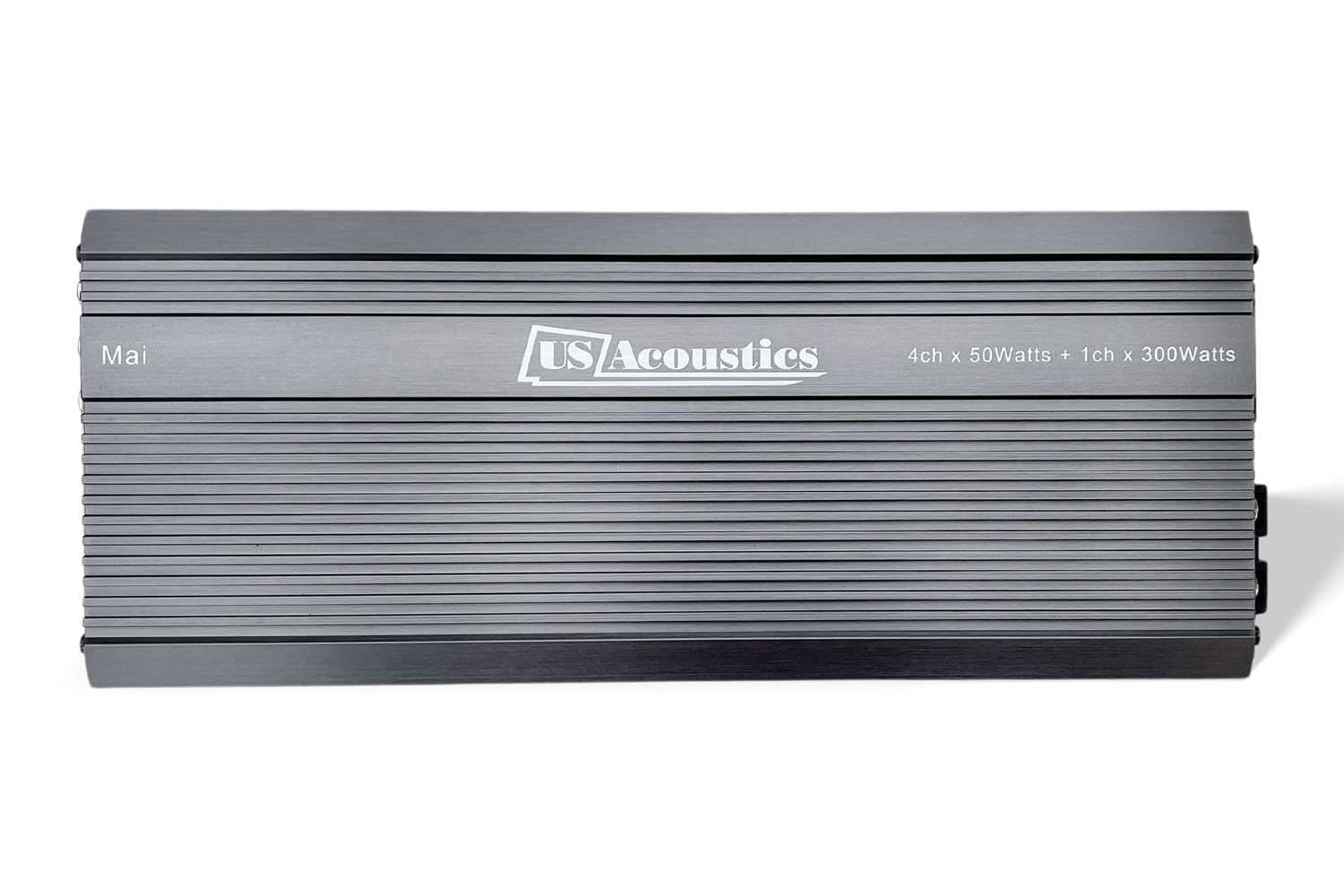

US Acoustics "Mai" Class D 5 Channel Amplifier

US AcousticsIn Stock. Typically ships within 1 Business Day.

SKU: USACOU-MAI

In Stock

$399.00

Features:

4 x 50 Watts RMS @ 4 Ohm
Compact Design for Smaller Installation Footprint

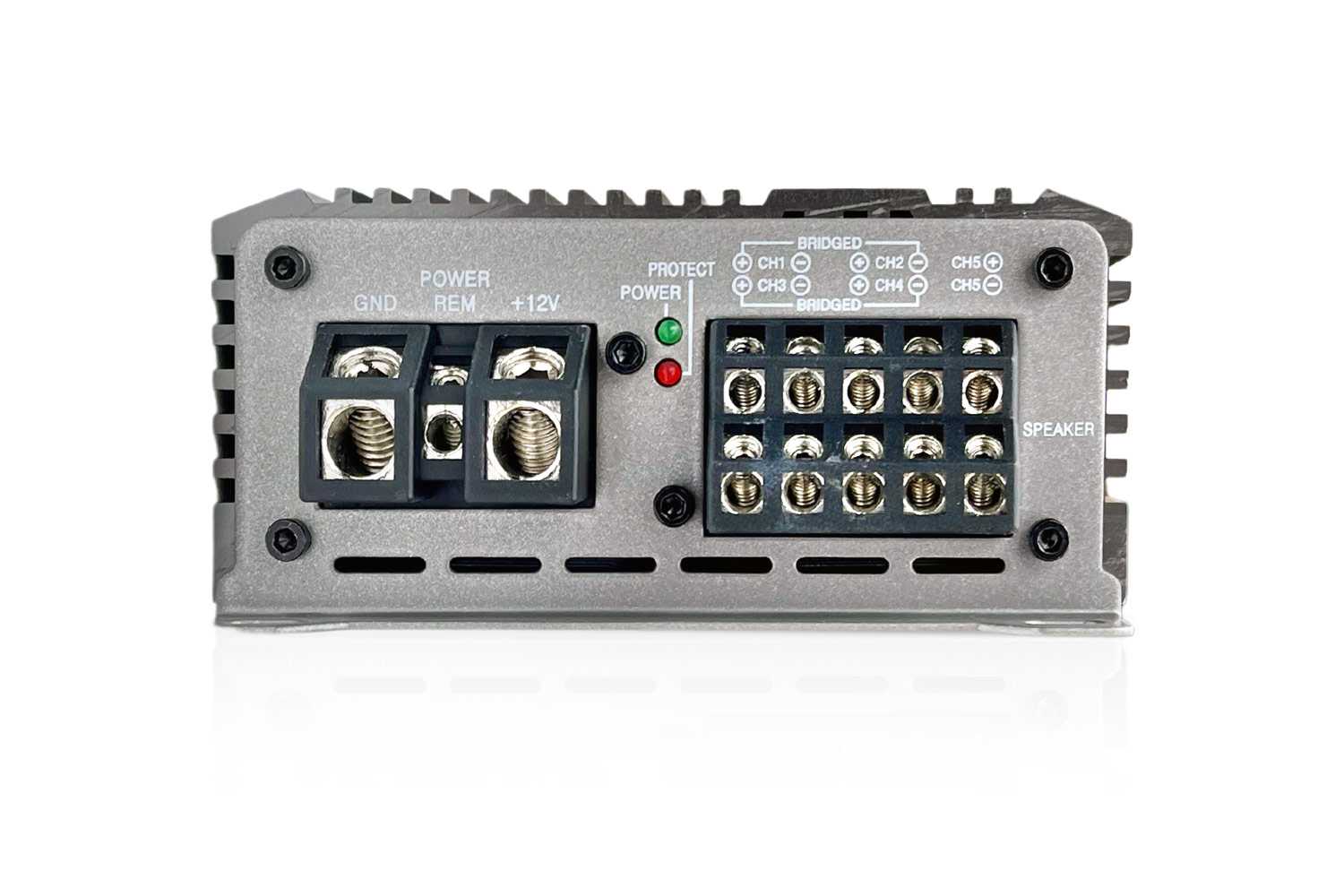

Angled Terminals for show quality installations
Full Range Class D Design
Conformal Coated Printed Circuit Board for Marine and Motorcycle Applications
DC, Short Circuit, Thermal and Overload Protection
Diagnostic LEDs

Specs:

OUTPUT POWER @ 14.4V input

DAMPING FACTOR: @100Hz 4 ohm: > 100

RMS per channel at 4 Ohms: 50 W x 4 CH

RMS per channel at 2 Ohms: 80 W x 4 CH

RMS Bridged Mono at 4 Ohms: 160 W x 2 CH

RMS Mono at 1 Ohm: 300 W x 1 CH

INPUT SENSITIVITY: 200mV - 6.0V

FREQUENCY RESPONSE: 10Hz - 22KHz +/- 0.5dB

THD: LESS THAN 0.5%

S/N RATIO: > 96 dB

CHANNEL SEPARATION: > 70 dB

DAMPING FACTOR @100Hz 4 ohm: > 100

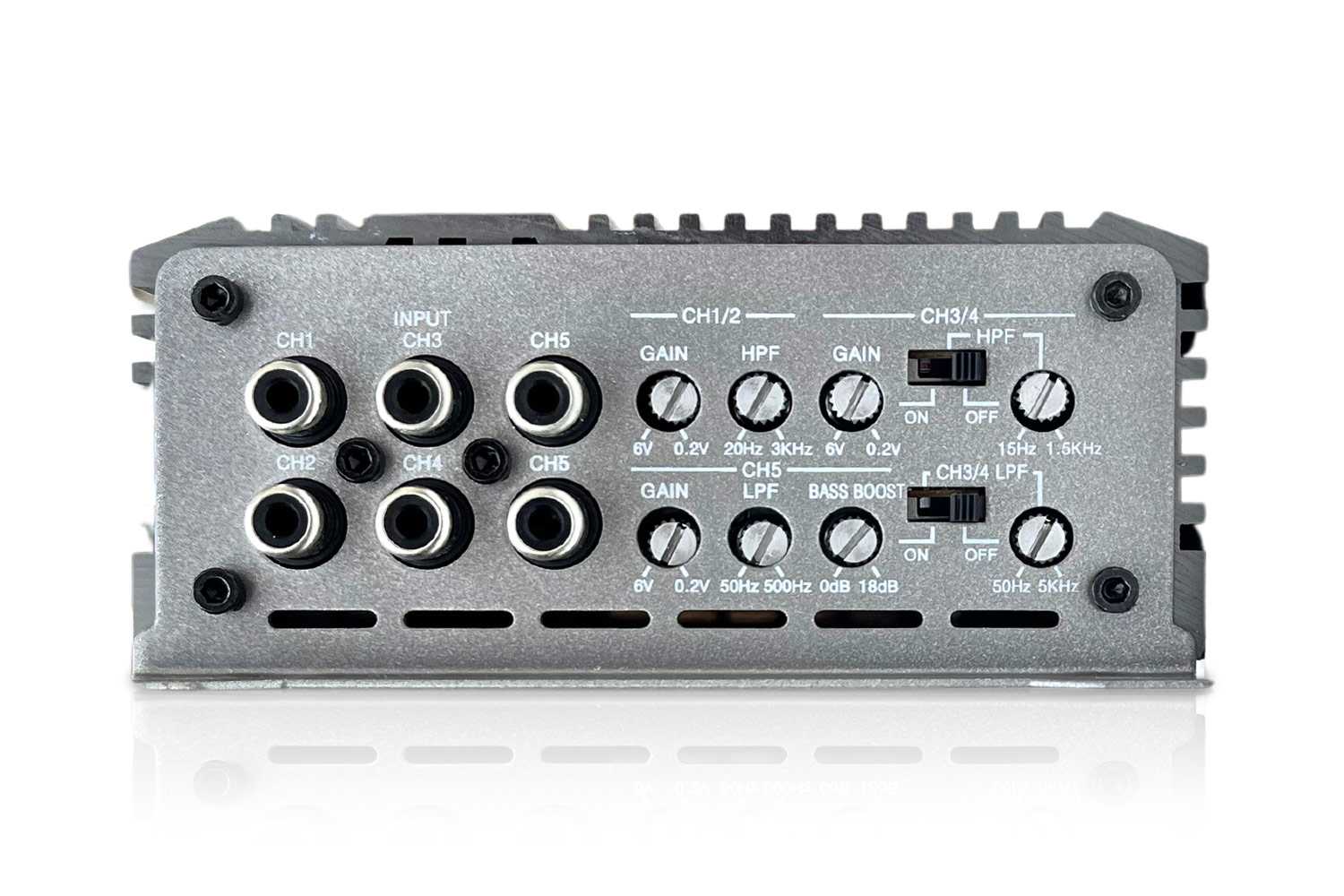

CROSSOVER RANGE: CH 3&4, CH 1&2

High Pass, 12dB/Octave: 20 Hz - 3K Hz, Ch 1 & 2; 15 Hz - 1.5K Hz, CH 3 & 4

Low Pass, 24dB/Octave: 50 Hz - 5K Hz, CH 3 & 4

Low Pass, 24dB/Octave: 50 Hz - 500 Hz, CH 5

Variable Bass Boost: No

Wired remote bass control included: No

Phase Shift (0 - 180 degrees): No

Fusing: 1 x 70A

Size: (L x W x H) in 11.41 x 4.68 x 2.04

Download Specs Here
