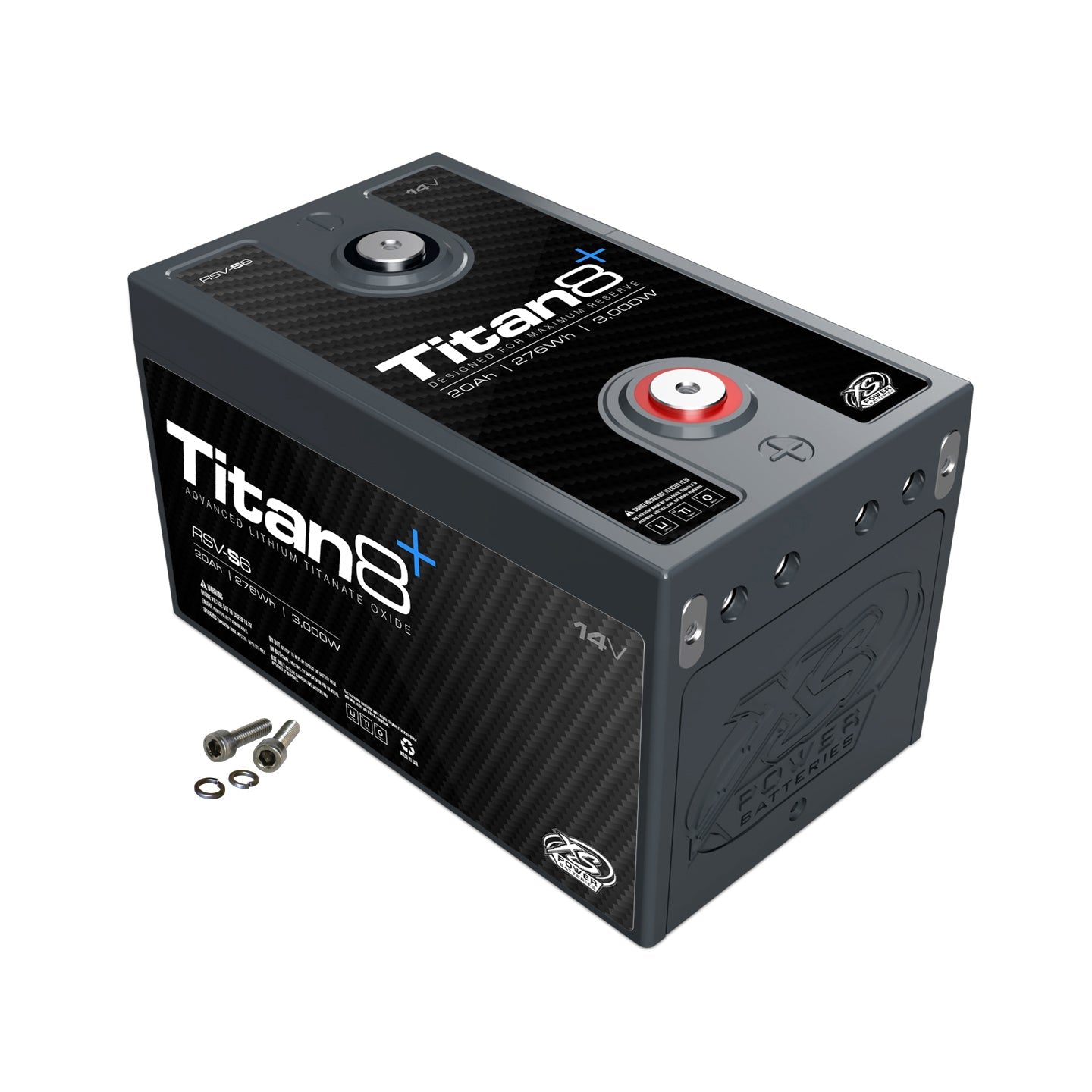

This Lithium Titanate Oxide (LTO) RSV Series battery uses a high-power lithium cell, designed for high-burst output (12,000 watts for five seconds) and enhanced reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.
XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position.
See specifications below.
Weight Lbs. – 9lbs
Weight Kgs. – 4.1kgs
Length – 8.3 in
Height – 5 in
Width – 4.85 in
Voltage – 14V
Wattage – 3,000
MAX Amps – 1,000
Energy Wh – 276
CA – 500A
CA Pb Eq* – 750A
Ah – 20
Ah Pb Eq* – 60
M6 Terminal Hardware Included
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
For more information, visit www.P65Warnings.ca.gov
This Lithium Titanate Oxide (LTO) RSV Series battery uses a high-power lithium cell, designed for high-burst output (12,000 watts for five seconds) and enhanced reserve capacity. The built-in 2/0 AWG bussing allows up to four positive and four negative hidden direct connections to each module without the need for any externally exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of batteries of nearly any size imaginable.
XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in and are suitable for use in the factory under-hood position.
See specifications below.
Weight Lbs. – 9lbs
Weight Kgs. – 4.1kgs
Length – 8.3 in
Height – 5 in
Width – 4.85 in
Voltage – 14V
Wattage – 3,000
MAX Amps – 1,000
Energy Wh – 276
CA – 500A
CA Pb Eq* – 750A
Ah – 20
Ah Pb Eq* – 60
M6 Terminal Hardware Included
*CA Pb Eq is the equivalent cranking amp output when compared to AGM
*Ah Pb Eq is the equivalent amp-hour when compared directly to AGM
PROP 65 WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. Wash hands after handling.
For more information, visit www.P65Warnings.ca.gov
